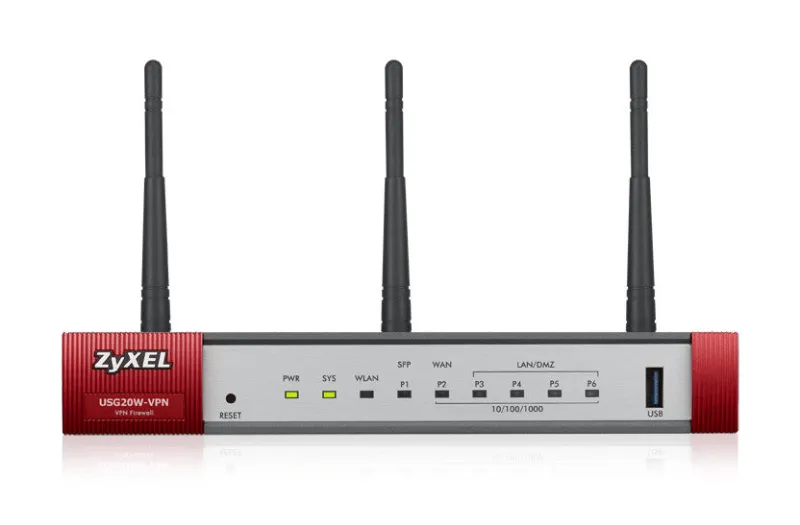

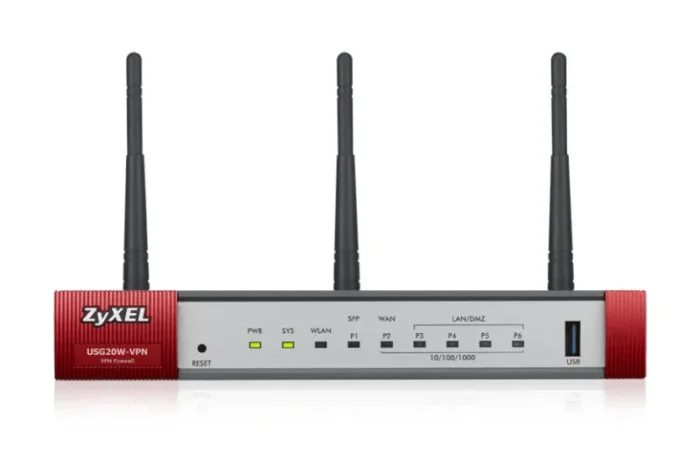

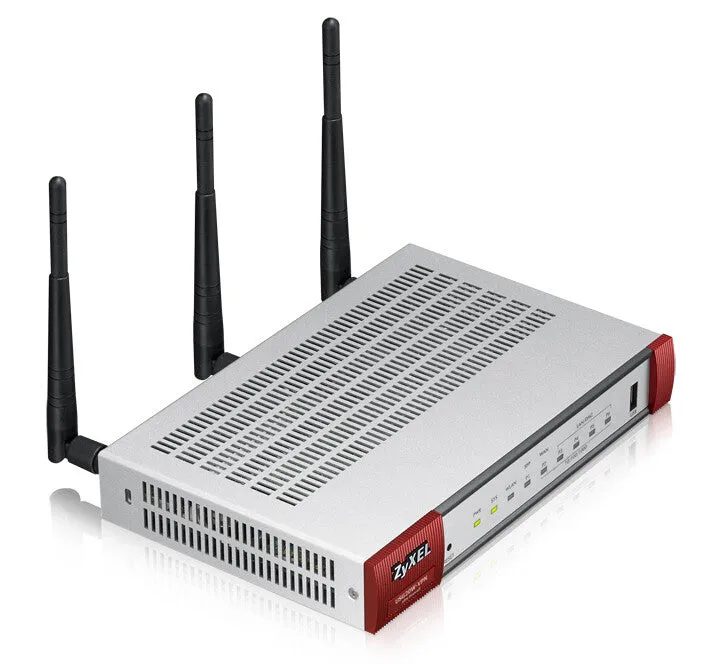

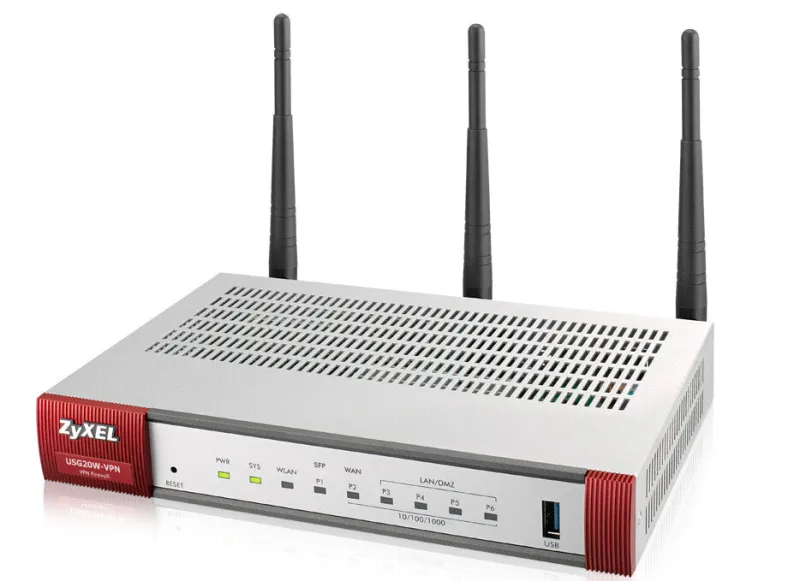

Zyxel USG20W-VPN-EU0101F wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Grey, Red
- Portable router Grey, Red
- Dual-band (2.4 GHz / 5 GHz) Wi-Fi 5 (802.11ac) 1300 Mbit/s
- Gigabit Ethernet
- Ethernet WAN
- Ethernet LAN (RJ-45) ports: 4
- Web-based management Quality of Service (QoS) support
Safer, more reliable VPN connections
Faster processors today have vastly boosted the capabilities of attackers to decrypt VPN tunnels. Legacy VPN cryptographic algorithms like Message Digest 5 (MD5) and Secure Hash Algorithm 1 (SHA-1) are no longer sufficient to guarantee secure outbound communications. With supports to the more advanced Secure Hash Algorithm 2 (SHA-2), the VPN Firewall provides the safest VPN connections in its class to ensure maximum security for business communications.
Unlimited business mobility
To support dynamic, mobile business operations in today’s BYOD (bring your own device) business environments, the VPN Firewalls offer unlimited business mobility with Layer-2 Tunneling Protocol (L2TP) VPN for mobile devices. The VPN Firewall supports L2TP VPN on a wide variety of mobile Internet devices running the iOS, Android and Windows mobile platforms.
ZyXEL One Network experience
Aiming for relieving our customers from repetitive operations of deploying and managing a network, ZyXEL One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities.
ZyXEL One Network presents an easy-to-use tool, ZyXEL One Network Utility (ZON Utility) , to realize speed network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. ZyXEL One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
OneSecurity.com
ZyXEL provides regular updates in response to the latest security threats and advisories, and a service portal that offers free, informative network security resource and know-how to help businesses and IT departments to protect their networks and operations from security risks of the digital age.
The ZyXEL USG and ZyWALL Series of products are integrated with OneSecurity.com service in the product GUI, so the IT staff can quickly and easily catch up with any new threats, and therefore proceed with walkthrough and troubleshooting actions with assistance from FAQs to better secure networks and easily manager UTM products.
| WAN connection | |
|---|---|
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| VPN tunnels quantity | 10 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| 3G | No |
| 4G | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| DMZ support | Yes |
| System event log | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
| Firewall | Yes |
| Security algorithms | SSID, SSL/TLS |
| Protocols | |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | Activity, LAN, Power, WAN, WLAN, WPS |
| Indication light | Yes |
| Product colour | Grey, Red |
| Product type | Portable router |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Antenna | |
|---|---|
| Detachable antenna(s) | Yes |
| Antennas quantity | 3 |
| Antenna gain level (max) | 3 dBi |
| Antenna connector type | N-type |
| Antenna design | External |
| Features | |
|---|---|
| Safety | BSMI, UL |
| Electromagnetic compatibility | FCC Part 15 (Class B), IC, CE EMC (Class B), RCM, BSMI |
| Mean time between failures (MTBF) | 44000 h |
| Heat dissipation | 61.38 BTU/h |
| Power | |
|---|---|
| Power consumption (typical) | 18 W |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -30 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 10 – 90% |
| Weight & dimensions | |
|---|---|
| Width | 216 mm |
| Depth | 143 mm |
| Height | 33 mm |
| Weight | 1.14 kg |
| Packaging data | |
|---|---|
| Package weight | 1.5 kg |
| Package height | 98 mm |
| Package depth | 185 mm |
| Package width | 276 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Frequency band | 2.4 & 5 |
| USB ports quantity | 1 |
