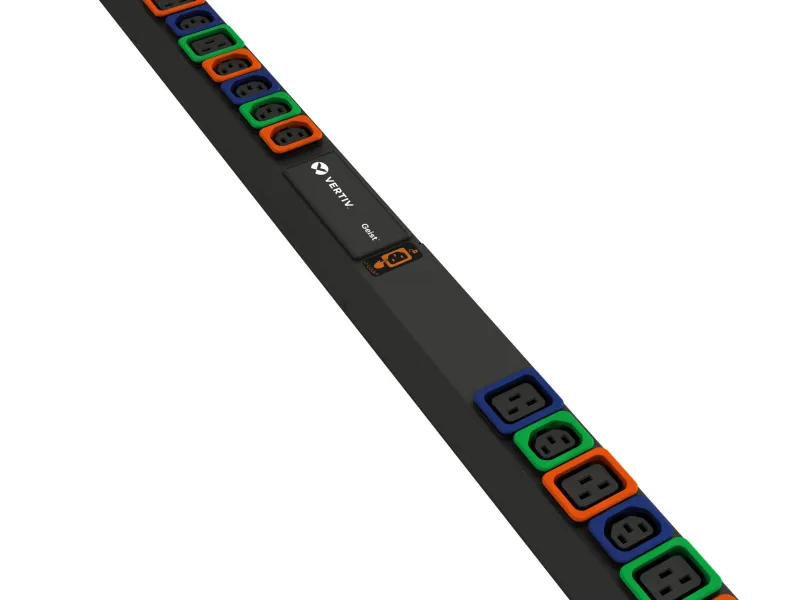

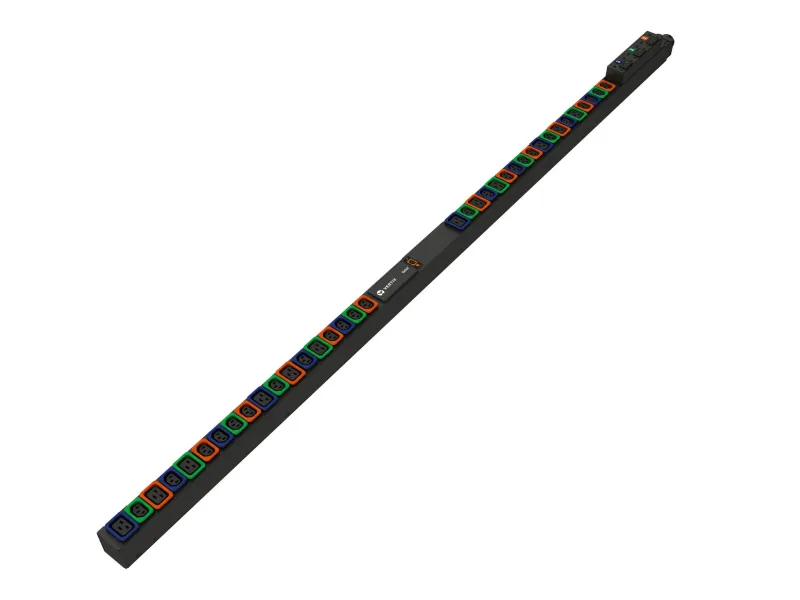

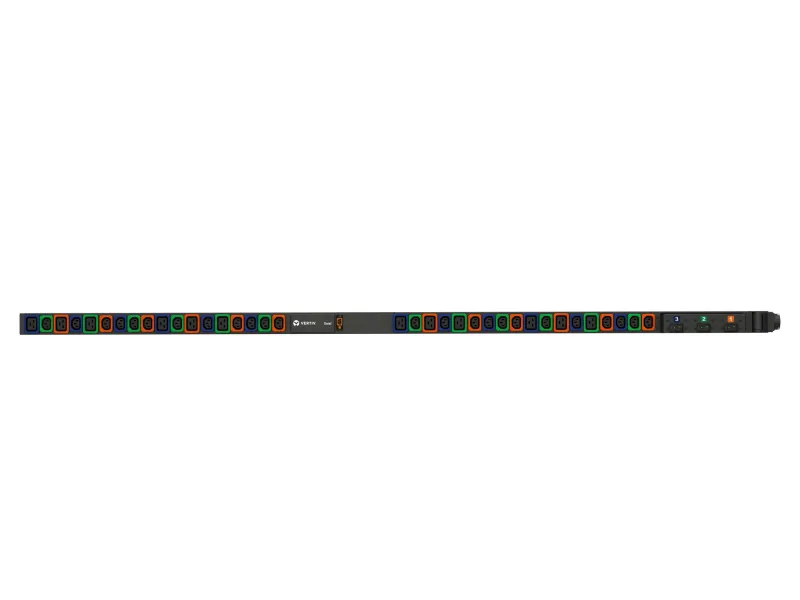

Vertiv U1072L power distribution unit (PDU) 36 AC outlet(s) 0U Black
- The Universal Input enables users to utilize a single UPDU model with various input power configurations to simplify inventory management and enable rapid deployments worldwide
- Increase or decrease UPDU power capacity by changing the FSC to adapt to fluctuating equipment power needs
- Upgradeable models allow users to upgrade the hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs
- The universal power input can mate to any geographically specific FSC, Facility Side Cable, and is designed to operate with variable power input configurations (defined by the connected FSC)
- The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing
- Global compliance certification includes: UL Certified, CE Marked, China RoHS, RoHS Compliant, and RCM Mark (EMC only)
The Vertiv Geist UPDU is a versatile rack power distribution unit featuring a universal input and detachable Facility Side Cable (FSC – sold separately). The UPDU supports common AC power configurations ranging from 16A-60A and 120V-415V. Available in basic to intelligent models featuring advanced remote power monitoring, environmental monitoring, and optional outlet level switching. The UPDU simplifies critical IT infrastructure deployments by allowing a single model to be installed around the world.
Design |
On/off switch |
Yes |
Product colour |
Black |
Mounting |
Vertical |
Rack capacity |
0U |
PDU types |
Basic |
Ports & interfaces |
AC outlet types |
C13 coupler, C19 coupler |
AC outlets quantity |
36 AC outlet(s) |
Features |
LED indicators |
No |
Power |
Load capacity |
11000 VA |
Maximum current |
16 A |
AC input frequency |
50 Hz |
Nominal input voltage |
230/400 V |
Certificates |
Certification |
CE, UL, CB |
Compliance certificates |
RoHS |
Operational conditions |
Operating temperature (T-T) |
0 – 60 °C |
Weight & dimensions |
Weight |
8.62 kg |
Height |
58 mm |
Depth |
51 mm |
Width |
1778 mm |
