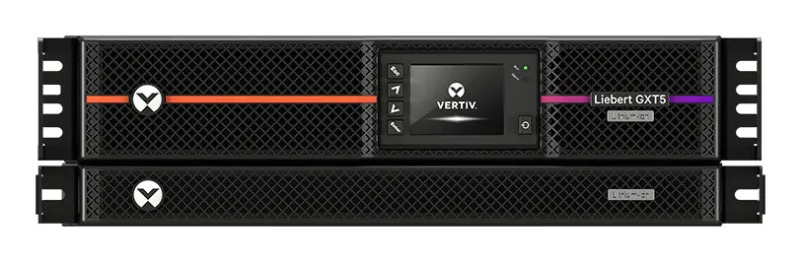

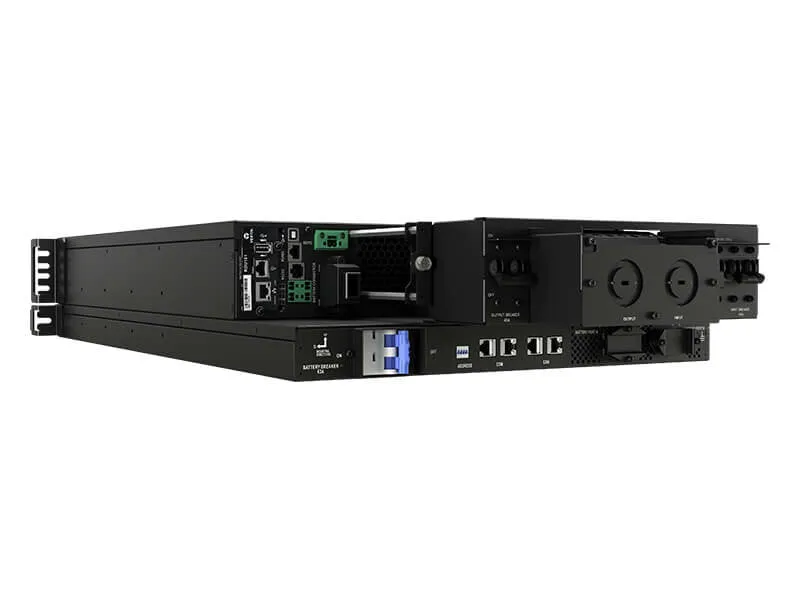

Vertiv Liebert GXT5LI-5000GVRT3UXLN uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 5000 W
- Lithium-Ion UPS batteries last up to 3x longer than VRLA batteries
- Offers lowest total cost of ownership (TCO) with fewer or no battery replacements over its lifetime
- Environmentally friendly UPS reduces battery disposal and recycling with lower replacement rates
- Longer runtime, faster recharge time and scalable runtime with external battery cabinets
- Integrated MBC allows the user to power connected equipment even during UPS maintenance or replacement
The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). The battery offers industry-leading runtime to protect critical equipment during an unexpected power loss. It also gives better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times. It is hot-swappable and user-replaceable, so you can easily replace it without disrupting power to connected equipment. The Integrated Maintenance Bypass Cabinet (MBC) allows the user to continue to power connected equipment even during UPS maintenance or replacement.
| Features |
| Power protection features |
Over voltage, Under voltage |
| Surge protection |
Yes |
| Noise level |
56 dB |
| Emergency Power Off (EPO) |
Yes |
| ECO mode |
Yes |
| Output power factor |
1 |
| Efficiency |
94% |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40 – 70 Hz |
| Input operation voltage (max) |
288 V |
| Input operation voltage (min) |
176 V |
| Waveform |
Pure sine |
| Output power |
5000 W |
| Output power capacity |
5 kVA |
| UPS topology |
Double-conversion (Online) |

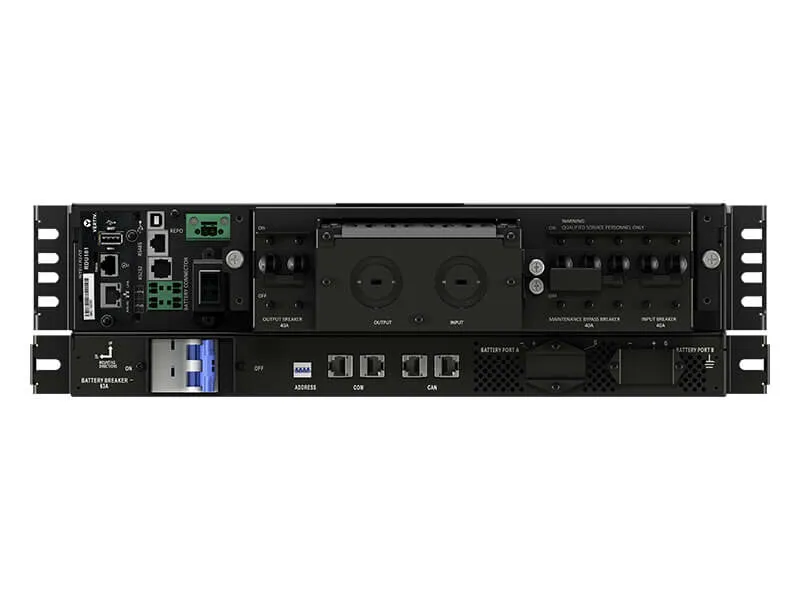

| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Serial ports quantity |
1 |
| USB port |
Yes |
| Battery |
| Hot-swap battery |
Yes |
| Battery recharge time |
2 h |
| Typical backup time at half load |
25 min |
| Typical backup time at full load |
11 min |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Design |
| Display type |
LCD |
| Rack capacity |
3U |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 – 3000 m |
| Operating relative humidity (H-H) |
0 – 90% |
| Storage temperature (T-T) |
-25 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| General |
| Product family |
Liebert |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Safety regulation & standards |
| Safety |
IEC 62040-1:2008+A1 2013, IEC 62619 1st Ed., UL 1642 (Li-Ion Battery Cells), UL 1973 (Li-Ion Battery Pack w/UPS), UL 1778, CSA 22.2 No. 107.3 |
| Packaging content |
| Batteries included |
Yes |
| Certificates |
| Compliance certificates |
REACH, RoHS, WEEE |
| Weight & dimensions |
| Weight |
23 kg |
| Height |
133 mm |
| Depth |
890 mm |
| Width |
430 mm |
| Packaging data |
| Package weight |
72 kg |
| Package height |
532 mm |
| Package depth |
998 mm |
| Package width |
798 mm |
| Logistics data |
| Country of origin |
China |
