Veracity HIGHWIRE Powerstar Camera network media converter Internal 100 Mbit/s Blue
- Wired
- 100 Mbit/s 500 m
- Ethernet LAN (RJ-45) ports: 1
- Internal
- Blue

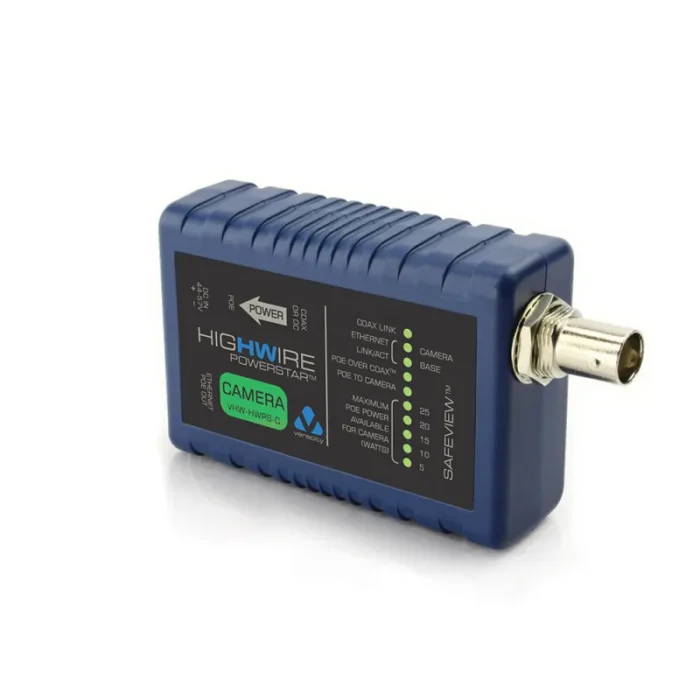

HIGHWIRE Powerstar Ethernet & PoE Over Coax Camera Unit. HIGHWIRE PowerStar lets you install IP cameras easily, quickly, and reliably, without the disruption and expense of installing new cable. Support for your camera is assured, thanks to HIGHWIRE’s unique full-rate Ethernet over Coax technology.
– Veracity’s unique SafeView ™ display provides an instant and easy-to-understand confirmation of network and power status.

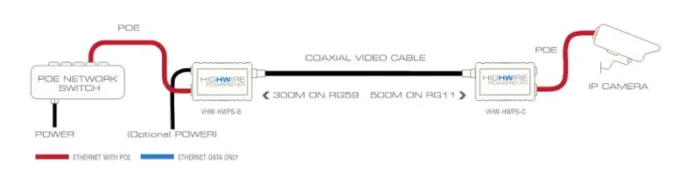

– HIGHWIRE Powerstar lets you install IP cameras easily, quickly & reliably with no disruption and new cable costs, with up to 25W POE power over coax to the camera without using local power supplies.
– Veracity’s unique SafeView display provides instant, easy-to-understand confirmation of network and power status right across the cable, with no need to access remote equipment to check connections.
| Network |
| Duplex system |
Full |
| Auto-negotiation |
Yes |
| Ethernet LAN data rates |
100 Mbit/s |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Converter input interface |
100Base-T |
| Maximum data transfer rate |
100 Mbit/s |
| Performance |
| Maximum transfer distance |
500 m |
| Features |
| LED indicators |
Yes |
| Product colour |
Blue |
| Internal |
Yes |
| Ports & interfaces |
| BNC ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Power |
| Power over Ethernet (PoE) |
Yes |
| Power consumption (max) |
25 W |
| Power consumption (typical) |
1.5 W |
| Weight & dimensions |
| Weight |
50 g |
| Height |
25 mm |
| Depth |
103 mm |
| Width |
54 mm |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 85% |
| Operating temperature (T-T) |
-10 – 50 °C |
| Packaging content |
| Manual |
Yes |
| Quick installation guide |
Yes |
| Packaging data |
| Package weight |
70 g |
| Package height |
32 mm |
| Package depth |
130 mm |
| Package width |
75 mm |
| Certificates |
| Certification |
FCC, CE, RoHS |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
