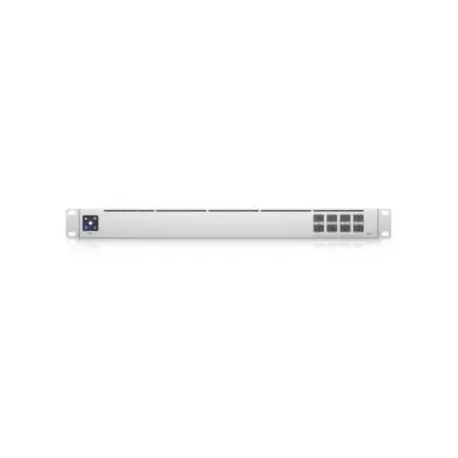

Ubiquiti USW-AGGREGATION
The Switch Aggregation is a fully managed, Layer 2 switch with (8) 10G SFP+ ports designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7″ depth, it’s easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
• (1) 1.3″ LCM color touchscreen with AR switch management
• (8) 10G SFP+ ports
• 160 Gbps switching capacity
• Fanless, near-silent cooling
Please note a power cable is required for this unit, please select UBIPC180CMTSUK
| Mechanical Specifications | |
|---|---|
| Dimensions | 442.4 x 120 x 43.7 mm (17.4 x 4.7 x 1.7″) |
| Weight | Without mounting brackets: 2.6 kg (5.8 lb) With mounting brackets: 2.7 kg (6 lb) |
| Enclosure material | SGCC steel |
| LEDs | |
|---|---|
| System | Status |
| SFP+ | Link/activity |
| Application Requirements | |
| UniFi Network | Version 5.14.12 and later |
Mfr. Part #: USW-AGGREGATION
