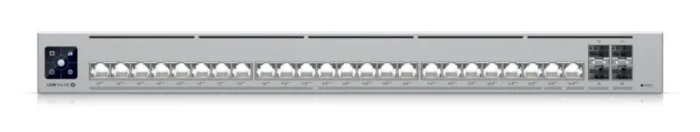

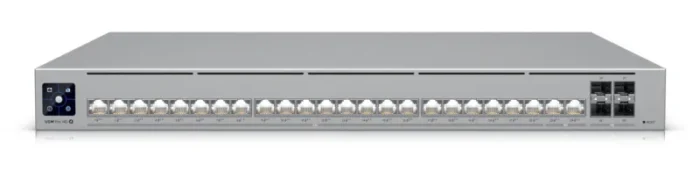

Ubiquiti UniFi Pro HD 24 PoE Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Grey
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (22) 2.5 GbE, (2) 10 GbE PoE++ ports
- (4) 10G SFP+ ports
- DC power backup ready**
- 600W total PoE availability
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
AC/DC |
| SFP+ module slots quantity |
4 |
| 10G Ethernet (copper) ports quantity |
2 |
| 2.5G Ethernet (copper) ports quantity |
22 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
22 |
| Network |
| Number of VLANs |
1000 |
| Virtual LAN features |
Voice VLAN |
| VLAN support |
Yes |
| Flow control support |
Yes |
| IPv4 routes |
12000 |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1x |
| Data transmission |
| Packet buffer memory |
2 MB |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
171 Mpps |
| Switching capacity |
230 Gbit/s |
| MAC address table |
32000 entries |
| Security |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP guarding, DHCP relay, DHCP server, DHCP snooping |
| Multicast features |
| Multicast support |
Yes |
| Design |
| Display type |
LCM |
| LED indicators |
Link, Speed, Status |
| Reset button |
Yes |
| Housing material |
SGCC |
| Product colour |
Grey |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
60 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Redundant power supply (RPS) support |
Yes |
| Power supply included |
Yes |
| Power source |
AC/DC/PoE |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
600 W |
| Power over Ethernet (PoE) power per port |
15.4 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
24 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
-5 – 40 °C |
| Weight & dimensions |
| Weight |
6.2 kg |
| Height |
44 mm |
| Depth |
400 mm |
| Width |
442.4 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Cables included |
Power |
| General |
| Product family |
UniFi |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
