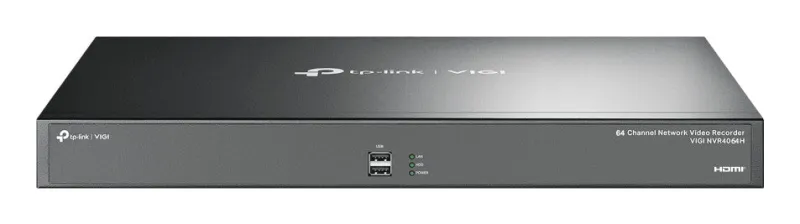

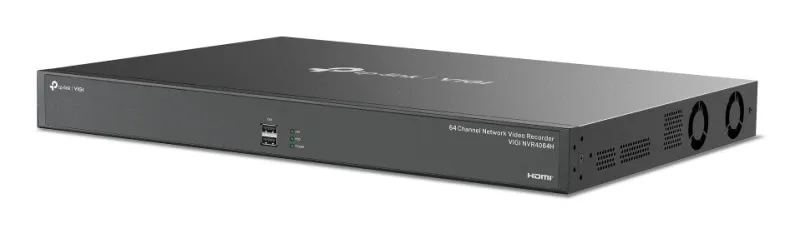

TP-Link VIGI 64 Channel Network Video Recorder
- 64-Channel Live View and 4K HDMI Video Output
- Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding Capability
- 16-Channel Synchronous Playback
- 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
- 4× SATA Interfaces and 1 Up to 16 TB
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Security Never Shuts Down
64 Channel Network Video

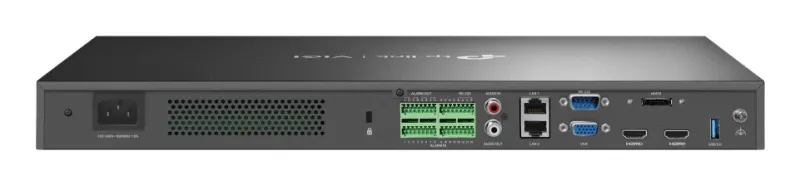

Feature-Packed Ports for SMB Surveillance
Dual Ethernet Ports Design
Multi-Address Mode
Allows for the implementation of two different gateways
Network Fault-Tolerance
Creates a safeguard or redundancy for your data
Port Aggregation
Realizes bandwidth stack and mutual backup
One-Click System Initialize
VIGI NVRs enable quick camera additions, HDD initialization, and storage scheduling with a single click, reducing setup expenses.
| Performance |
| Audio system |
2-way |
| Recording modes |
Manual, Schedule |
| Input bandwidth |
320 Mbit/s |
| Output bandwidth |
320 Mbit/s |
| Backup function |
Yes |
| Playback modes |
Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Video formats supported |
H.264, H.264+, H.265, H.265+ |
| Audio formats supported |
G.711 A-law, G.711 μ-law, G.726 |
| Video loss detection |
Yes |
| Video motion detection |
Yes |
| Maximum resolution |
3840 x 2160 pixels |
| Supported resolutions |
3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video recording modes |
720p, 1080p |
| Alarm output channels |
4 |
| Number of simultaneously playbacked channels |
16 channels |
| Alarm input channels |
16 |
| Video input channels |
64 channels |
| Hard drive |
| HDD interface |
SATA |
| Maximum storage capacity |
64 TB |
| Number of HDDs supported |
4 |
| HDD capacity |
0 GB |
| Ports & interfaces |
| Supported network protocols |
UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| eSATA |
Yes |
| RS-232 ports |
1 |
| eSATA ports quantity |
1 |
| Audio RCA outputs |
1 |
| Audio RCA inputs |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| VGA (D-Sub) output ports |
1 |
| USB 2.0 ports quantity |
2 |
| HDMI ports quantity |
2 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
2 |
| Features |
| Reset button |
Yes |
| Product colour |
Black |
| Buzzer off |
Yes |
| Rack mounting |
Yes |
| Power |
| Output current |
1.5 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (max) |
48.38 W |
| System requirements |
| Browser supported |
Chrome (57+), Firefox (52+), Edge (91+) |
| Mobile operating systems supported |
Android, iOS |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
-10 – 55 °C |
| General |
| Product family |
VIGI |
| Technical details |
| Compliance certificates |
BSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI |
| Weight & dimensions |
| Package weight |
5 kg |
| Package height |
100 mm |
| Package depth |
528 mm |
| Package width |
440 mm |
| Weight |
4 kg |
| Height |
44 mm |
| Depth |
330 mm |
| Width |
440 mm |
| Packaging content |
| Packaging content |
– Mouse- Installation Guide- Power Cord- HDD Power Cables- HDD Data Cables- Terminal Blocks- Mounting Brackets- Screws- Rubber Feet |
