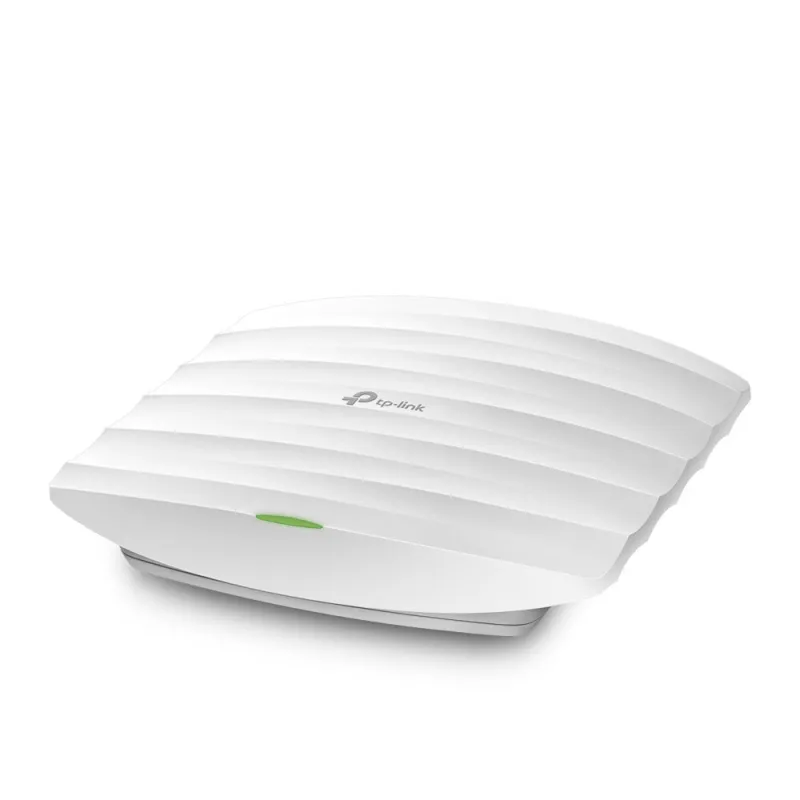

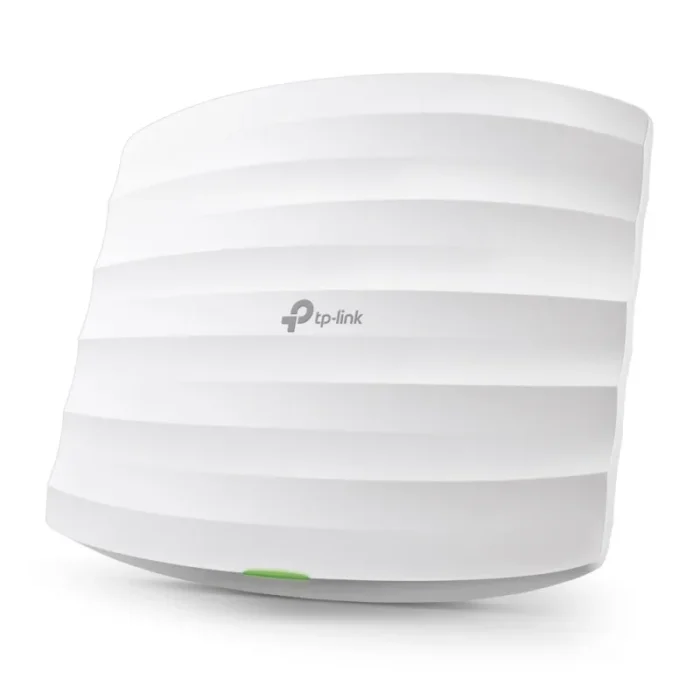

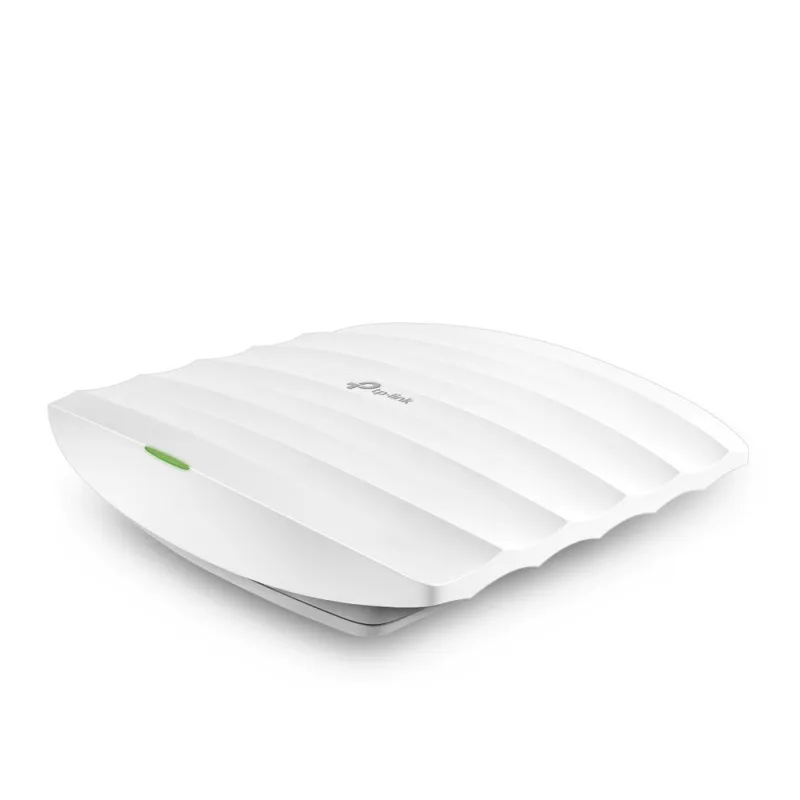

TP-Link Omada EAP225 1350 Mbit/s White Power over Ethernet (PoE)
- 2.4 GHz 450 Mbit/s
- 5 GHz 867 Mbit/s
- Maximum data transfer rate: 1350 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
- 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
- Power over Ethernet (PoE)
- Antennas quantity: 5 Internal Integrated antenna
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Cloud Centralized Management
– Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
| Features | |
|---|---|
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 24 dBm |
| BeamForming | Yes |
| Quality of Service (QoS) support | Yes |
| Airtime Fairness (ATF) | Yes |
| Band steering | Yes |
| Rate limiting | Yes |
| Virtual LAN features | VLAN mapping |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate | 1350 Mbit/s |
| 5 GHz | Yes |
| 6 GHz | No |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Number of SSID supported | 16 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| MAC address filtering | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Management features | |
|---|---|
| Syslog | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power consumption (typical) | 10.15 W |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Design | |
|---|---|
| LED indicators | Power, WLAN |
| Reset button | Yes |
| On/off switch | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | White |
| Placement | Ceiling, Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 5 |
| Antenna features | Integrated antenna |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Performance | |
|---|---|
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| General | |
|---|---|
| Product family | Omada |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
|---|---|
| Height | 37.1 mm |
| Depth | 181.5 mm |
| Width | 205.5 mm |
| Packaging data | |
|---|---|
| Package weight | 910 g |
| Package height | 65 mm |
| Package depth | 340 mm |
| Package width | 228 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| AC adapter included | Yes |
| Quantity per pack | 2 pc(s) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
