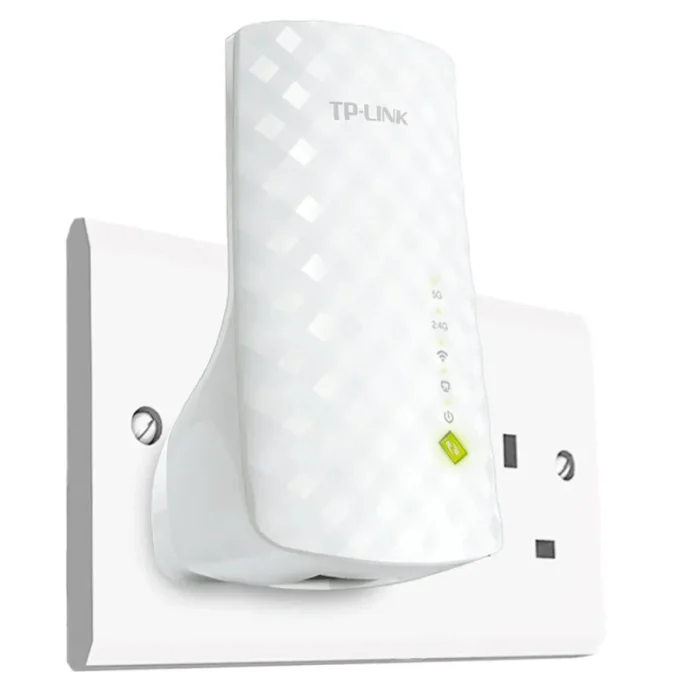

TP-Link AC750 WiFi Wall-Plug Range Extender RE200
Easy Wi-Fi Extension Flexible Placement
AC750 Wi-Fi Range Extender RE200
Boost Your Wi-Fi Network to Cover hard-to-reach Areas
Place the RE200 between your wireless router and wireless devices, expanding Wi-Fi coverage while eliminating Wi-Fi dead zones. Enjoy a seamless wireless network throughout your home or office. The dual bands Wi-Fi up to 750Mbps not only help extend to 2,000 sq.ft. (185 m2), but also make good use of your high ISP speed — ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.
Router Coverage
Easily extend your Wi-Fi range with the push of a button existing router AC750 Wi-Fi for Compatible Connections. The RE200’s Wireless AC technology create stronger Wi-Fi connections across your home. Work with any standard router or access point, making it convenient to provide wide, non-dropping Dual Band Wi-Fi to multiple devices.
One Key Connection
Press the WPS button on your router and RE button on your RE200 within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply relocate the RE200 at any location for the best signal strength.
Smart Signal Indicator
Smart signal lights indicate the signal strength received from the existing router. Read the lights to find the best location for your RE200.
Entertainment Adapter
With an Ethernet port, RE200 can function as a wireless adapter to connect wired devices like desktop, gaming consoles, Blu-ray® players, and Internet TVs. At the same time, the device can share the wireless network as well.
HARDWARE FEATURES
- Plug Type EU, UK, US, AU
- Standards and Protocols IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Interface 1 * 10/100M Ethernet Port (RJ45)
- Button RE (Range Extender) Button, Reset Button
- Power Consumption About 6.5W
- Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
- Antenna 3 * internal
WIRELESS FEATURES
- Frequency 2.4GHz & 5GHz
- Signal Rate 5GHz:Up to 433Mbps
- 2.4GHz:Up to 300Mpbs
- Reception Sensitivity 2.4G:
- 270M: -70dBm@10% PER
- 130M: -70dBm@10% PER
- 108M: -73dBm@10% PER
- 54M: -75dBm@10% PER
- 11M: -86dBm@8% PER
- 6M: -92dBm@10% PER
- 1M: -94dBm@8% PER
- Reception Sensitivity 5G:
- 390M: -60dBm@10% PER
- 29.3M: -83dBm@10% PER
- 180M: -64dBm@10% PER
- 13.5M: -87dBm@10% PER
- 78M: -68dBm@10% PER
- 6.5M: -90dBm@10% PER
- 54M: -75dBm@10% PER
- 6M：-90dBm@10% PER
- Transmit Power < 20 dBm (EIRP)
- Wireless Modes Range Extender
- Wireless Functions WMM (Wi-Fi Multimedia)
- Wireless Statistic
- Domain Login Function
- Wireless Security 64/128/152-bit WEP
- WPA-PSK / WPA2-PSK
OTHERS
- Certification CE, FCC, RoHS
- Package Contents AC750 Wi-Fi Range Extender RE200
- Quick Installation Guide
- System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
- Environment Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
