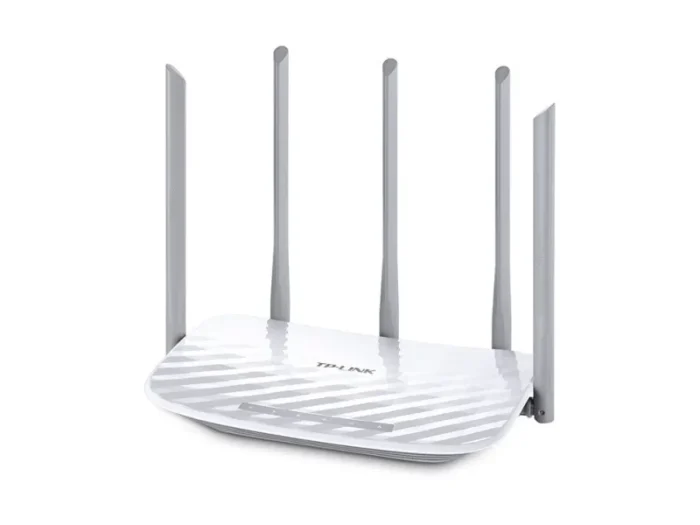

TP-Link AC1350 Wireless Dual Band WiFi Router
- Get faster Wi-Fi at both the 2.4GHz band (450Mbps) and the 5GHz band (867Mbps)
- The advanced AC Wi-Fi unlocks the performance of all your wireless devices
- Three 2.4GHz antennas and two 5GHz antennas create superior Wi-Fi coverage
- Beamforming technology delivers highly efficient wireless connection (supported by Version 2.0 and above)
- Advanced software functions like Parental Control and Guest Network
- Tether app provides easy router management in your palm
Raise the Bar for Wi-Fi Speed
and Coverage
AC1350 Wireless Dual Band Router
The New Wi-Fi Standard for an Advanced Online Experience
The Archer C60 comes with the latest wireless standard – 802.11ac. This advanced Wi-Fi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard. The result: faster, stronger and more capable Wi-Fi to unleash all your wireless devices.
Fast, Concurrent Dual Band Wi-Fi
The Archer C60 provides you with simultaneous dual band Wi-Fi connections.
2.4GHz band: 3×3 MIMO creates fast and stable Wi-Fi at speeds of 450Mbps, making it perfect for daily applications like sending emails, browsing the web or listening to music.
5GHz band: Provides up to 867Mbps Wi-Fi for latency-sensitive entertainment so you can stream HD video, play online games and hold video chats all at the same time, without delay.
Arranged Coverage, Enhanced Stability

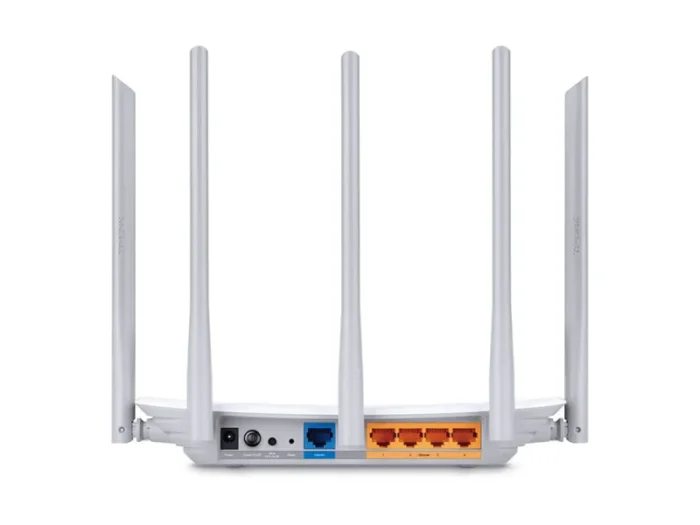

Archer C60’s innovative design includes five antennas, three at 2.4GHz and two at 5GHz. These have been arranged alternately to optimize the dual band 802.11ac Wi-Fi, creating a transmission with maximized coverage, minimized interference.
Easy Parental Control
Supervise children and staff with responsible access, controlled by parents or administrators. Use URL blocking to easily set up a black or white list and limit the level of web access.
Guest Network Access
Allow guests to join your Wi-Fi network, while protecting your privacy. Make sharing easy, maintain security.
Impeccable Design
To match its advanced features, the Archer C60 introduces an elegant
texture and color to fit the stylish décor of your home.
Easy Setup and Management
Set up the Archer C60 in minutes thanks to its intuitive web interface. Configuration is also in the palm of your hands with TP-LINK’s powerful app, Tether, the easiest way to access and manage your router through your smartphone.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (second band) | 867 Mbit/s |
| WLAN data transfer rate (first band) | 450 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| Receiver sensitivity | 5GHz: 11a 54M: -76dBm 11ac VHT20 MCS8: -70dBm 11ac VHT40 MCS9: -65.5dBm 11ac VHT80 MCS9: -61.5dBm 2.4G: 11g 54M: -76dBm 11n HT20 MCS7: -74dBm 11n HT40 MCS7: -71dBm |
| VPN support | PPTP, L2TP, IPSec |
| VPN Passthrough | Yes |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| 3G | No |
| 4G | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Memory card slot(s) | No |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 5 |
| Management features | |
|---|---|
| WPS push button | Yes |
| Reset button | Yes |
| Security | |
|---|---|
| DMZ support | Yes |
| IP address filtering | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
| DoS attack prevention | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Guest access | Yes |
| Firewall | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols | |
|---|---|
| VoIP protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | LAN, Power, WLAN |
| Indication light | Yes |
| Product colour | White |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Certificates | |
|---|---|
| Certification | CE, RoHS |
| Antenna | |
|---|---|
| Transmit power | CE: |
| Antennas quantity | 5 |
| Antenna design | External |
| Power | |
|---|---|
| Output current | 1 A |
| Output voltage | 12 V |
| Power source type | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| System requirements | |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | macOS |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
|---|---|
| Width | 230 mm |
| Depth | 144 mm |
| Height | 35 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 76 mm |
| Package depth | 240 mm |
| Package width | 357 mm |
