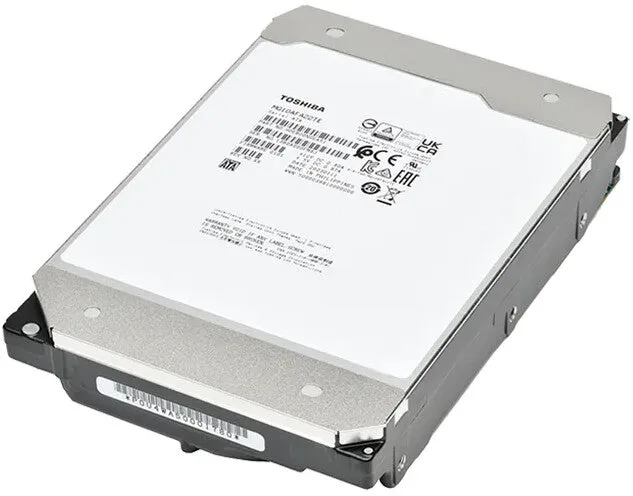

Toshiba MG10F Series internal hard drive 22 TB 7200 RPM 512 MB 3.5″ Serial ATA III
- 22/20 TB capacity
- Conventional Magnetic Recording (CMR) for broad compatibility
- Industry-leading 10-disk helium-sealed design for superior storage density
- Industry Standard 3.5-inch 26.1 mm height Form Factor
- 7,200 rpm Performance
- Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
- 550 Total TB Transferred per Year Workload Rating
- Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
The MG10F Series provides 22 TB of conventional magnetic recording (CMR) capacity. The drive feature a 550 TB per year workload rating with 7,200 rpm performance in a 10-disk helium-sealed, industry-standard 3.5-inch form factor. The MG10F integrates easily into existing drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 2500000 h |
| Mean time to failure (MTTF) | 2500000 h |
| Workload rate limit | 550 TB/year |
| HDD interface transfer rate | 6 Gbit/s |
| Storage drive buffer size | 512 MB |
| Component for | NAS |
| Type | HDD |
| Interface | Serial ATA III |
| HDD size | 3.5″ |
| HDD speed | 7200 RPM |
| HDD capacity | 22 TB |
| Power | |
|---|---|
| Power consumption (idle) | 4.82 W |
| Weight & dimensions | |
|---|---|
| Weight | 720 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Warranty period | 5 year(s) |
