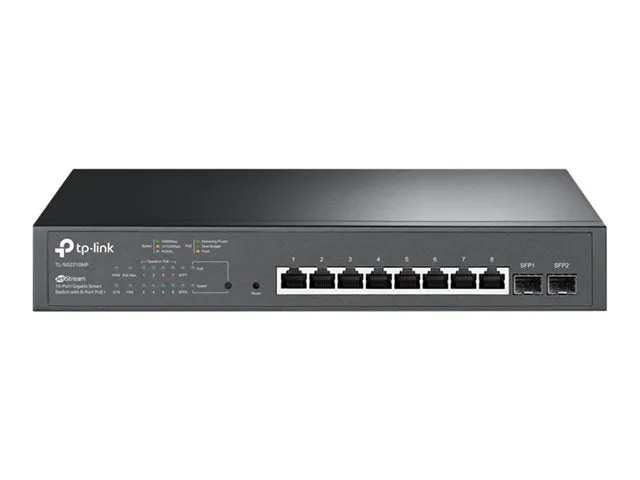

TieDex UK TP-Link JetStream TL-SG2210MP – switch – 10 ports – smart – rack-mountable
TP-Link JetStream TL-SG2210MP – Switch – smart – 8 x 10/100/1000 (PoE+) + 2 x SFP – rack-mountable – PoE+ (150 W)
Basic Specifications
- Manufacturer’s Part Number
- TL-SG2210MP
- EAN
- 6935364030674
- Product Description
- TP-Link JetStream TL-SG2210MP – switch – 10 ports – smart – rack-mountable
- Model
- TP-Link JetStream TL-SG2210MP
- Dimensions (WxDxH)
- 29.4 cm x 18 cm x 4.4 cm
- Features
- Flow control, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, bandwidth control, DLDP support, 512KB packet buffer, NDP, CoS, SP, GVRP, Storm Control, BPDU, Link Aggregation, AAA, 1 fan, Voice VLAN, IPMB, ZTP, WRR, loopback detection, MLD, DSCP prioritisation
- Power
- AC 120/230 V (50/60 Hz)
- Device Type
- Switch – 10 ports – smart
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
- MAC Address Table Size
- 8K entries
- Subtype
- Gigabit Ethernet
- Performance
- Switching capacity: 20 Gbps ¦ Forwarding performance: 14.9 Mpps
- Enclosure Type
- Rack-mountable
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, SNMP, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, DHCP, IPv4, IPv6
- Jumbo Frame Support
- 9KB
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x SFP
- PoE Budget
- 150 W
- Power Over Ethernet (PoE)
- PoE+
General
- Device Type
- Switch – 10 ports – smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 150 W
- Performance
- Switching capacity: 20 Gbps ¦ Forwarding performance: 14.9 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, SNMP, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, DHCP, IPv4, IPv6
- Encryption Algorithm
- SSL, SSL 3.0, TLS 1.2
- Authentication Method
- Secure Shell (SSH), RADIUS, PAP, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP), EAP-TLS, EAP-TTLS
- Features
- Flow control, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, bandwidth control, DLDP support, 512KB packet buffer, NDP, CoS, SP, GVRP, Storm Control, BPDU, Link Aggregation, AAA, 1 fan, Voice VLAN, IPMB, ZTP, WRR, loopback detection, MLD, DSCP prioritisation
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Dimensions & Weight
- Width
- 29.4 cm
- Depth
- 18 cm
- Height
- 4.4 cm
Miscellaneous
- Included Accessories
- Rubber feet
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, RoHS
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 173.9 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 – 90% (non-condensing)
