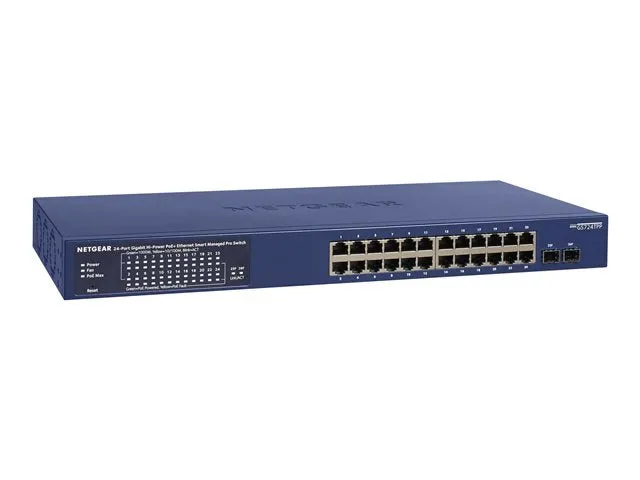

TieDex UK NETGEAR Smart GS724TPP – switch – 24 ports – smart – rack-mountable
NETGEAR Smart GS724TPP – Switch – L3 Lite – smart – 24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) – rack-mountable – PoE+ (380 W)
Basic Specifications
- Manufacturer’s Part Number
- GS724TPP-100EUS
- EAN
- 0606449145922
- Manufacturer Warranty
- NETGEAR lifetime warranty
- Weight
- 3.7 kg
- Product Description
- NETGEAR Smart GS724TPP – switch – 24 ports – smart – rack-mountable
- Model
- NETGEAR Smart GS724TPP
- Dimensions (WxDxH)
- 44 cm x 20.4 cm x 4.3 cm
- Localisation
- Europe
- Features
- Flow control, IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, MLD snooping, IPv4 support, LACP, DHCP client, 512KB packet buffer, GVRP, dual firmware images, loop prevention, static routing, CoS, SP, cloud managed, DSCP support, 3 fans, Protocol-based VLANs support, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, DNS client, Voice VLAN, ZTP, EEE, WRR, Auto VoIP, VLAN Tagging, port trunking, Advanced QoS, LAG, security slot (Kensington security lock compatible)
- Power
- AC 120/230 V (50/60 Hz)
- Device Type
- Switch – 24 ports – L3 Lite – smart
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Capacity
- Priority queues: 8 ¦ Multicast groups: 128 ¦ VLANs supported: 64 ¦ DHCP snooping entries: 256 ¦ ACL: 100 ¦ IGMP multicast groups: 128
- MAC Address Table Size
- 8K entries
- Subtype
- Gigabit Ethernet
- Performance
- Bandwidth (full duplex): 52 Gbps ¦ Forwarding performance (64-byte packet size): 38.6 Mpps ¦ 1 Gbps copper latency (64-byte packets): 3.563 ¦ 1 Gbps copper latency (1518-byte packets): 3.717 ¦ 1 Gbps copper latency (9216-byte packets): 3.464
- Enclosure Type
- Rack-mountable
- Routing Protocol
- IGMP, static IP routing, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
- Jumbo Frame Support
- 9216 bytes
- Ports
- 24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink)
- PoE Budget
- 380 W
- Power Over Ethernet (PoE)
- PoE+
General
- Device Type
- Switch – 24 ports – L3 Lite – smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 380 W
- Performance
- Bandwidth (full duplex): 52 Gbps ¦ Forwarding performance (64-byte packet size): 38.6 Mpps ¦ 1 Gbps copper latency (64-byte packets): 3.563 ¦ 1 Gbps copper latency (1518-byte packets): 3.717 ¦ 1 Gbps copper latency (9216-byte packets): 3.464
- Capacity
- Priority queues: 8 ¦ Multicast groups: 128 ¦ VLANs supported: 64 ¦ DHCP snooping entries: 256 ¦ ACL: 100 ¦ IGMP multicast groups: 128
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9216 bytes
- Routing Protocol
- IGMP, static IP routing, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
- Encryption Algorithm
- TLS 1.2
- Authentication Method
- RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
- Features
- Flow control, IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, MLD snooping, IPv4 support, LACP, DHCP client, 512KB packet buffer, GVRP, dual firmware images, loop prevention, static routing, CoS, SP, cloud managed, DSCP support, 3 fans, Protocol-based VLANs support, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, DNS client, Voice VLAN, ZTP, EEE, WRR, Auto VoIP, VLAN Tagging, port trunking, Advanced QoS, LAG, security slot (Kensington security lock compatible)
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Processor
- 1: 500 MHz
- RAM
- 128 MB
- Flash Memory
- 32 MB
- Status Indicators
- Port transmission speed, PoE, link/activity
Dimensions & Weight
- Width
- 44 cm
- Depth
- 20.4 cm
- Height
- 4.3 cm
- Weight
- 3.7 kg
Miscellaneous
- Included Accessories
- Foot pad set
- Rack Mounting Kit
- Included
- MTBF
- 634,966 hours
- Localisation
- Europe
Manufacturer Warranty
- Service & Support
- Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – phone consulting – 90 days
Expansion / Connectivity
- Interfaces
- 24 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP uplink
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 446.7 Watt
- Power Consumption Stand by
- 24.7 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 95% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
