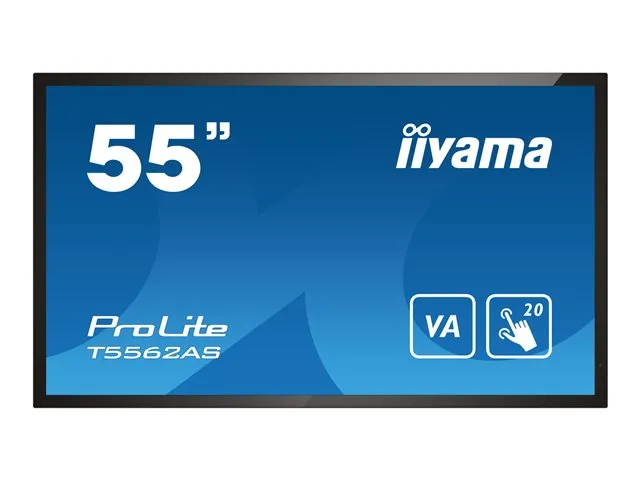

TieDex UK iiyama ProLite T5562AS-B1 55″ Class (54.6″ viewable) LED-backlit LCD display – 4K – for digital signage / interactive communication
iiyama ProLite T5562AS-B1 – 55″ Diagonal Class (54.6″ viewable) LED-backlit LCD display – interactive digital signage – with touchscreen (multi touch) – Android – 4K UHD (2160p) 3840 x 2160 – black, matte finish
Basic Specifications
- Manufacturer’s Part Number
- T5562AS-B1
- EAN
- 4948570120475
- Product Type
- LED-backlit LCD flat panel display with touchscreen (multi touch)
- Product Description
- iiyama ProLite T5562AS-B1 55″ Class (54.6″ viewable) LED-backlit LCD display – 4K – for digital signage / interactive communication
- HDMI Ports Qty
- 3 ports
- LCD Backlight Technology
- LED backlight
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 150 Watt
- Model
- iiyama ProLite T5562AS-B1
- Speaker System
- 2 speakers
- Display Format
- 4K UHD (2160p)
- USB
- 2 ports
- Diagonal Class
- 55″
- Video Interface
- HDMI
- Dimensions (WxDxH)
- 126.4 cm x 6.58 cm x 73.49 cm
- Commercial Use
- Interactive
- Voltage
- AC 100-240 V (50/60 Hz)
- Technology
- VA
- Colour
- Black, matte finish
- TV Tuner
- No tuner
- Weight
- 23.4 kg
- Display Resolution
- 4K Ultra HD (2160p)
- Diagonal Size
- 54.6″
- Connectivity
- LAN
- Platform
- Android
- Picture Enhancements
- 72% Colour Gamut NTSC
- Supported Memory Cards
- microSD
- Storage Capacity
- 16GB eMMC
- Included Accessories
- Remote control, remote control, batteries
- Power Consumption Stand by
- 1.5 Watt
- Touchscreen
- Yes
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
Remote Control
- Type
- Remote control
Audio System
- Speaker System
- 2 speakers
- Output Power / Total
- 20 Watt
- Speakers
- 2 x speaker – 10 Watt
Stands & Mounts
- Flat Panel Mount Interface
- 400 x 400 mm
- VESA Compatibility
- Yes
Media Player
- Supported Memory Cards
- microSD
- USB Port
- Yes
- USB Ports Qty
- 2
- Configuration
- ARM Cortex-A73 Dual-Core + ARM Cortex-A53 Dual-Core – 2 GB – 16GB eMMC – Mali-G51
Connections
- Connector Type
- 3 x HDMI ¦ RS-232C input ¦ LAN input ¦ Infrared input ¦ RS-232C ¦ 2 x USB 2.0
Display
- LCD Display Technology
- VA
- Pixel Pitch
- 0.315 mm
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- LCD Backlight Technology
- LED backlight
- Coating
- Anti-glare
- Image Contrast Ratio
- 5000:1
- Brightness
- 500 cd/m²
- Total Pixels
- 8,300,000
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Touchpoints Qty
- 20
- Response Time
- 8 ms
- Display Menu Language
- English, German, French, Polish, Russian, Spanish, Japanese
- Operation Hours / Days
- 24 / 7
- Features
- Palm Rejection, Signal Failover, Projected Capacitive Technology (PCAP), Image Retention Protection, 1.07 billion colours (8-bit+FRC), 24/7 operation time, 80% light transmittance
General
- Product Type
- LED-backlit LCD flat panel display
- Power Consumption Operational
- 150 Watt
- Diagonal Class
- 55″
- Diagonal Size
- 54.6″
- Commercial Use
- Yes – interactive digital signage
- Combined With
- Touchscreen (multi touch)
- Platform
- Android
- Operating System
- Android OS 8.0
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- HDMI Ports Qty
- 3 ports
- Modes
- Portrait mode, landscape mode, kiosk mode
- Picture Enhancements
- 72% Colour Gamut NTSC
- Width
- 126.4 cm
- Depth
- 6.58 cm
- Height
- 73.49 cm
- Weight
- 23.4 kg
- Enclosure Colour
- Black, matte finish
Miscellaneous
- Included Accessories
- Remote control, batteries
- Cables Included
- RS-232C cable ¦ USB cable ¦ HDMI cable
- Compliant Standards
- Plug and Play, CB, RoHS, WEEE, REACH, TUV Bauart, ERP, EAC, HDCP 2.2
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V (50/60 Hz)
- Power Consumption Stand by
- 1.5 Watt
- Power Consumption (Off Mode)
- 0.3 Watt
Dimensions & Weight (Shipping)
- Width (Shipping)
- 141 cm
- Depth (Shipping)
- 20.3 cm
- Height (Shipping)
- 89.1 cm
- Weight (Shipping)
- 29.8 kg
Network & Internet Multimedia
- Connectivity
- LAN
