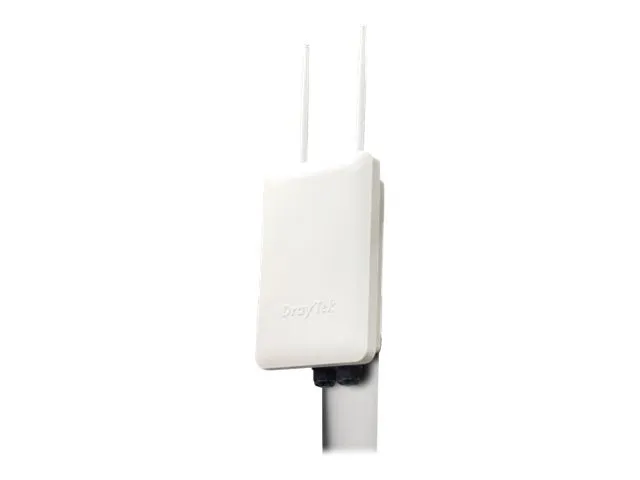

TieDex UK Draytek VigorAP 918R – radio access point – Wi-Fi 5
Draytek VigorAP 918R – Radio access point – Wi-Fi 5 – 2.4 GHz, 5 GHz – wall mountable
Basic Specifications
- Manufacturer’s Part Number
- VAP918R-K
- EAN
- 4710484740014
- Manufacturer Warranty
- 2-year warranty
- Weight
- 1 kg
- Product Description
- Draytek VigorAP 918R – radio access point – Wi-Fi 5
- Model
- Draytek VigorAP 918R
- Dimensions (WxDxH)
- 16.1 cm x 7.2 cm x 24.4 cm
- Device Type
- Radio access point
- Performance
- Maximum data rate (2.4 GHz): 400 Mbps ¦ Maximum data rate (5 GHz): 866 Mbps
- Form Factor
- Wall mountable – outdoor
- Frequency Band
- 2.4 GHz, 5 GHz
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
General
- Device Type
- Radio access point
- Ruggedized Design
- Outdoor
- Width
- 16.1 cm
- Depth
- 7.2 cm
- Height
- 24.4 cm
- Weight
- 1 kg
Miscellaneous
- Cables Included
- 1 x network cable
- Compliant Standards
- IP67
Manufacturer Warranty
- Service & Support
- Limited warranty – 2 years
Networking
- Form Factor
- Wall mountable
- Connectivity Technology
- Wireless
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Remote Management Protocol
- SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI, TR-069
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum data rate (2.4 GHz): 400 Mbps ¦ Maximum data rate (5 GHz): 866 Mbps
- Wi-Fi Rating
- AC1300
- Features
- Load balancing, repeating mode, Syslog support, MAC address filtering, DFS support, Wireless Distribution System (WDS) support, Access Point operational mode, firmware upgradable, Wi-Fi Multimedia (WMM) support, RADIUS support, DHCP server, hidden SSID, temperature / humidity sensor, wireless bridge mode, reset button, 2T2R MIMO technology, pole mountable, DHCP relay, Transmit Power Control (TPC), band steering, Fast Roaming, RSSI Threshold, Airtime Fairness, client isolation, dustproof, waterproof, MAC clone, Wireless Auto On/Off, Multi-SSID over Mesh, Client Limit per SSID, Trusted DHCP Server IP for WLAN, Device Object/Group Control
- Encryption Algorithm
- TLS, PEAP, WPA, WPA2, WPA-PSK, WPA2-PSK, WEP
- Authentication Method
- RADIUS, Radio Service Set ID (SSID)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T – RJ-45 ¦ 2 x aerial
Power
- Power Consumption Operational
- 18 Watt
Environmental Parameters
- Min Operating Temperature
- -40 °C
- Max Operating Temperature
- 70 °C
- Humidity Range Operating
- 5 – 95% (non-condensing)
Aerial
- Antenna
- External detachable
- Antenna Qty
- 2
- Directivity
- Omni-directional
