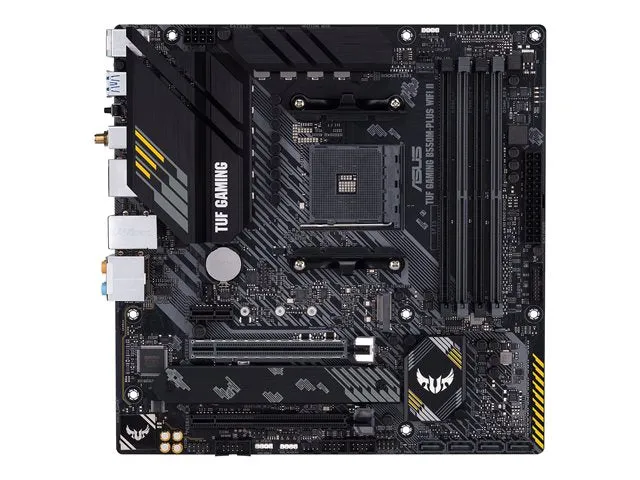

TieDex UK ASUS TUF GAMING B550M-PLUS WIFI II – motherboard – micro ATX – Socket AM4 – AMD B550
ASUS TUF GAMING B550M-PLUS WIFI II – Motherboard – micro ATX – Socket AM4 – AMD B550 Chipset – USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 – 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth – onboard graphics (CPU required) – HD Audio (8-channel)
Basic Specifications
- Manufacturer’s Part Number
- 90MB19Y0-M0EAY0
- EAN
- 4711081305712
- Product Description
- ASUS TUF GAMING B550M-PLUS WIFI II – motherboard – micro ATX – Socket AM4 – AMD B550
- Model
- ASUS TUF GAMING B550M-PLUS WIFI II
- Product Type
- Motherboard – micro ATX
- Audio
- HD Audio (8-channel)
- RAM Supported
- 4 DIMM slots – DDR4, ECC, non-ECC, unbuffered
- Compatible Processors
- Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
- Max RAM Size
- 128 GB
- Processor Socket
- 1 x Socket AM4
- USB / FireWire Ports
- 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
- Chipset Type
- AMD B550
- Storage Ports
- 4 x SATA-600 (RAID), 2 x M.2
- LAN
- 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Features
- BIOS Type
- AMI
- BIOS Features
- UEFI BIOS, ASUS EZ Flash 3
- Sleep / Wake Up
- Wake on LAN (WOL), wake on PME
- Hardware Features
- Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Fan Xpert 2+, TUF ESD Guards, ProCool Power Connector, TUF LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, M.2 heatsink, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate, 8+2 DrMOS power stages, Preboot eXecution Environment (PXE)
General
- Product Type
- Motherboard – micro ATX
- Chipset Type
- AMD B550
- Processor Socket
- Socket AM4
- Max Processors Qty
- 1
- Compatible Processors
- Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Audio
- Type
- HD Audio (8-channel)
- Compliant Standards
- High Definition Audio, DTS Custom
Expansion / Connectivity
- Expansion Slots
- 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x4 mode)
- Storage Interfaces
- SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
- Interfaces
- 1 x DisplayPort ¦ 1 x TOSLINK ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-in – mini-jack ¦ 1 x audio line-out – mini-jack ¦ 1 x microphone – mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x USB-C Gen2 ¦ 2 x USB 2.0 ¦ 1 x audio line-out (rear) – mini-jack ¦ 1 x audio line-out (center/subwoofer) – mini-jack
- Internal Interfaces
- 4 x USB 2.0 – header ¦ 2 x USB 3.2 Gen 1 – header ¦ 1 x audio – header ¦ 1 x serial – header ¦ 1 x speaker – header
- Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
Miscellaneous
- Included Accessories
- 1 x M.2 screw, I/O back cover, TUF stickers, ASUS Wi-Fi moving aerial
- Cables Included
- 2 x Serial ATA cable
- Software Included
- Drivers & Utilities, ASUS AI Charger, ASUS TUF GAMING CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (Trial)
- Width
- 24.4 cm
- Depth
- 24.4 cm
LAN
- Network Interfaces
- 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Supported RAM
- Max Size
- 128 GB
- Technology
- DDR4
- Bus Clock
- 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4200 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.), 4400 MHz (O.C.), 4466 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 4866 MHz (O.C.)
- Supported RAM Integrity Check
- ECC, non-ECC
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture
