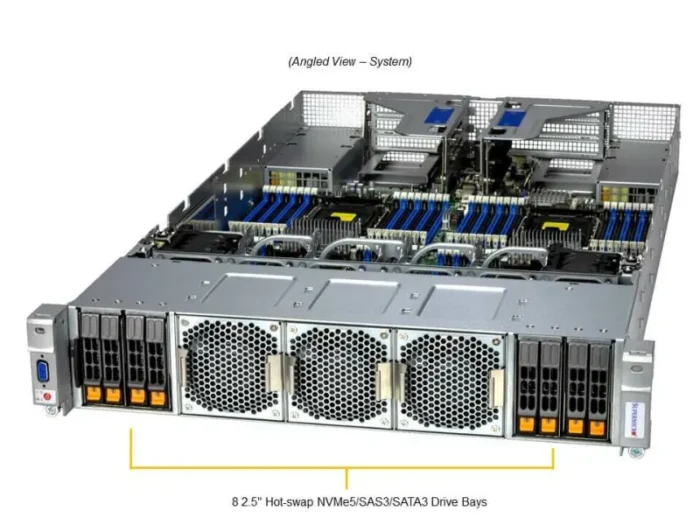

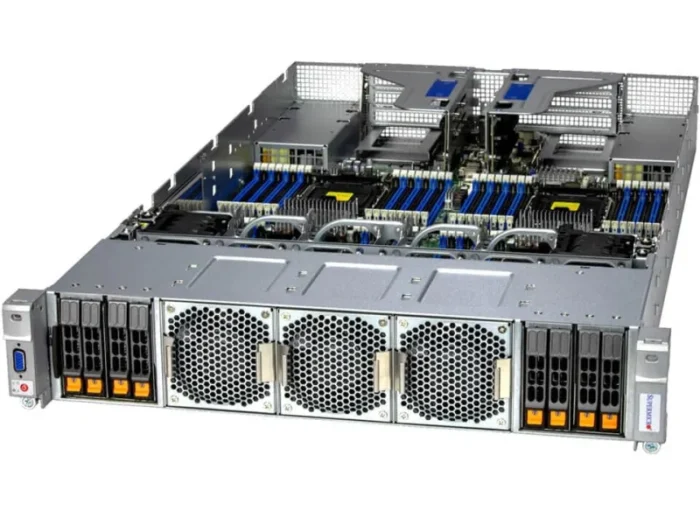

Supermicro SYS-241H-TNRTTP server barebone Intel C741 LGA 4677 (Socket E) Rack (2U) Silver

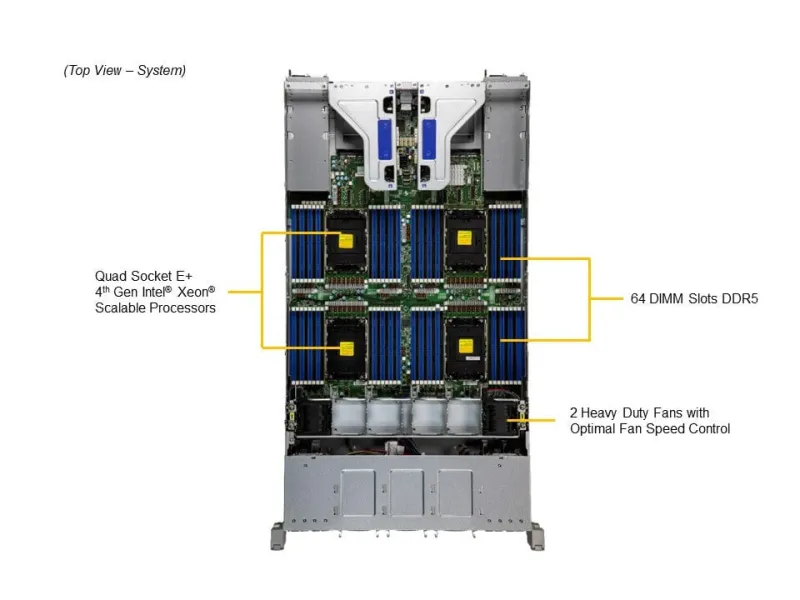

- Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
- 64 DIMM Slots; Up to 16TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
- Optional PCIe configurations up to 12 PCIe slots with support for two double-width GPU/Accerlator cards
- Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
| Processor | |
|---|---|
| Compatible processor series | Intel® Xeon® |
| Processor socket | LGA 4677 (Socket E) |
| Motherboard chipset | Intel C741 |
| Built-in processor | No |
| Memory | |
|---|---|
| ECC | Yes |
| Supported memory types | DDR5-SDRAM |
| Number of DIMM slots | 64 |
| Storage | |
|---|---|
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
| Supported storage drive types | HDD & SSD |
| Hot-swap HDD bays | Yes |
| Number of storage drives supported | 8 |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 5.0 |
| Features | |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| PC health monitoring | CPU |
| Design | |
|---|---|
| Number of fans | 5 fan(s) |
| On/off switch | Yes |
| LED indicators | Yes |
| Product colour | Silver |
| Chassis type | Rack (2U) |
| Power | |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 200 – 240 V |
| Number of main power supplies | 2 |
| Power supply | 2700 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 – 35 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 8 – 90% |
| Weight & dimensions | |
|---|---|
| Power supply dimensions (WxDxH) | 73.5 x 40 x 203 mm |
| Width | 438.4 mm |
| Depth | 812.9 mm |
| Height | 87.9 mm |
| Weight | 20.6 kg |
| Packaging data | |
|---|---|
| Package weight | 32.4 kg |
| Package height | 228.6 mm |
| Package depth | 1092.2 mm |
| Package width | 660.4 mm |
