StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23″-55″ Displays, Slim TV Mounting Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel TV Wall Mount
- HEIGHT ADJUSTABLE TV WALL MOUNT: Spring-assisted height adjustable range 12.6in (32cm); Articulating wall mount TV bracket supports TVs up to 55in; Max weight 66lb (30kg); Single-stud design made from powder-coated diecast aluminum for maximum durability
- ONE-TOUCH MOTION: Full-motion TV wall mount features a spring mechanism for effortless viewing angle and height adjustments; VESA plate features +/-90° swivel, +8/-15° tilt, and +/-3° rotation; Toolless adjustment w/ built-in cable management
- RANGE OF MOTION: Low profile VESA TV wall mount with jointed arm assembly supports +/-90° swivel and folds to just 2.2in (5.8cm) from the wall; Max arm extension 23.4in (59.5cm); Lateral range of 3.9ft (1.19m) ideal for corner mounting maximizing space
- COMPATIBILITY: TV mounting bracket supports TVs up to 55″ from LG, Samsung, Sony, Hisense, Sharp, and other TVs; Compatible VESA patterns: 75×75, 100×100, 200×100, 200×200, 300×300, 400×200, and 400×400; Spacers and various M5/M6/M8 screws included
- QUICK AND CLEAN INSTALLATION: Swivel TV wall mount ships pre-assembled for quick deployment; Wall plate with mounting holes facilitate simplified installation; Includes installation template, bubble level, wood studs, and concrete wall mounting hardware
Mounting Hardware Included | One-touch Adjustments | Digital Signage

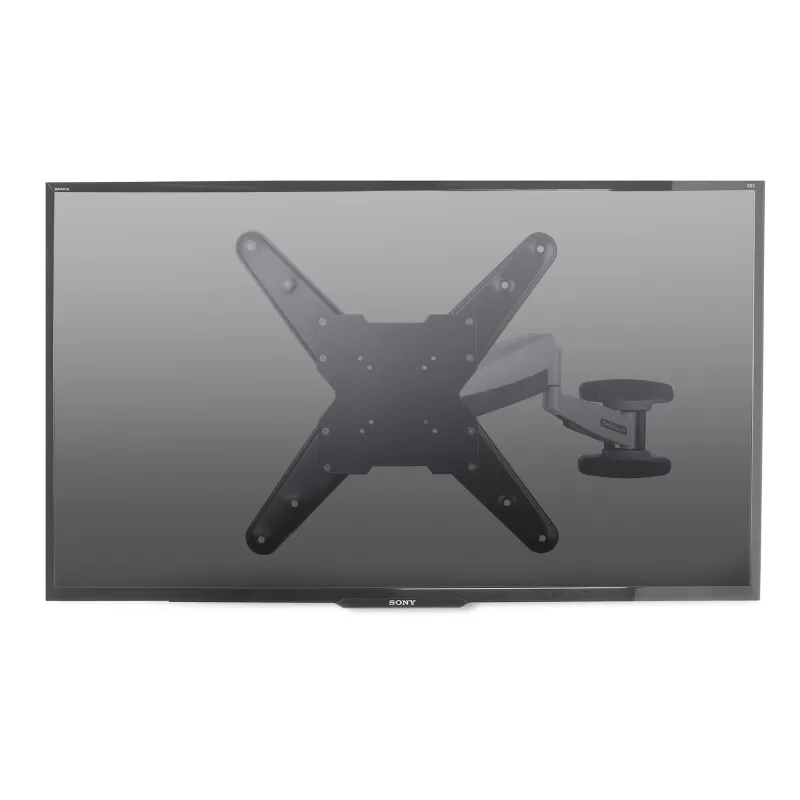

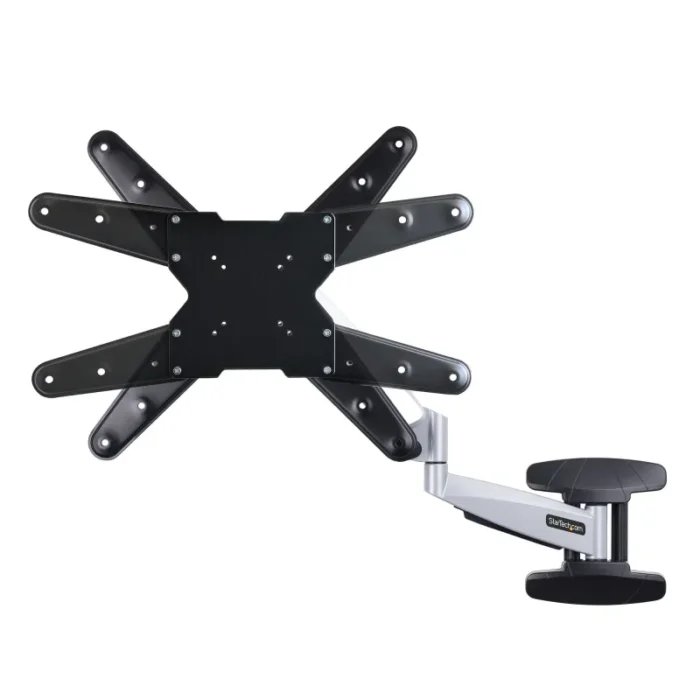

The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23″ to 55″ and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75×75 to 400×400.
Versatile TV Mounting
Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.
Supported VESA mounting patterns: 75×75,100×100, 200×100, 200×200, 300×300, 400×200, and 400×400.
Full-Motion Adjustment
The VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).
The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.
Durable Construction
The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.
The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 |
| Maximum VESA mount | 400 x 400 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Maximum screen size | 139.7 cm (55″) |
| Minimum screen size | 58.4 cm (23″) |
| Maximum weight capacity | 30 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 59.5 cm |
| Distance to the wall (min) | 5.8 cm |
| Cable management | Yes |
| Angle of rotation | 3° |
| Rotating | Yes |
| Swivel angle | 180° |
| Tilt angle range | -15 – 8° |
| Height adjustment | Yes |
| Design | |
|---|---|
| Anti-theft function | No |
| Housing material | Aluminium, Steel |
| Product colour | Black, Silver |
| Technical details | |
|---|---|
| Country of origin | China |
| VESA mount included | Yes |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting plate included | Yes |
| Number of screws | 33 |
| Screws included | Yes |
| Number of spacers included | 16 |
| Number of washers included | 13 |
| Wrench type | Hexagonal wrench |
| Wrench included | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 6 kg |
| Height | 450 mm |
| Depth | 595 mm |
| Width | 450 mm |
| Packaging data | |
|---|---|
| Package weight | 6.1 kg |
| Package height | 95 mm |
| Package depth | 440 mm |
| Package width | 585 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case height | 305 mm |
| Master (outer) case length | 460 mm |
| Master (outer) case width | 605 mm |
