StarTech.com Full Motion TV Wall Mount – Heavy Duty Articulating TV Wall Mount Bracket for 32″ to 75″ (165lb/75kg) VESA Display – Universal Adjustable Tilt/Swivel Flat Screen Arm – Silver
- LARGE 75″ TV WALL MOUNT: Heavy-duty full horizontal motion TV wall mount supports VESA compatible displays from 32 to 75 inch (165 lb/75 kg) w/ a durable full-motion steel frame & premium silver powder-coated finish
- WIDE RANGE OF MOTION: Full motion TV wall mount offers +/-60° swivel, +/-15° tilting to find the ideal viewing angle; Articulating extendable arms reach out to 21.6″ (550mm) from the wall & fold in to 4.1″ (105mm) for a lower profile
- COMPATIBILITY: Universal LCD/LED television mount supports LG, Samsung, Sony, Sharp, others (screws/spacers incl) & VESA bracket hole patterns 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400, 500×300, 600×300, 600×400, 800×400, 800×500
- PREMIUM FINISH: Silver steel & aluminum mount designed to have a professional look; Decorative covers maintain the high quality aesthetic no matter how the LCD/LED flat screen is positioned
- FLEXIBLE INSTALLATION: Adjustable TV wall mounting bracket is installed on a single stud for flexible positioning (ie. corner mounting); Integrated cable management; ideal for customer-facing digital signage, retail & education
Display Wall Mount | Steel/Aluminum | For 32″ to 75″ TVs
Strong and sleek, this full-motion TV wall mount lets you free up space by wall-mounting your 32″ to 75″ TV, and adjust it to the right viewing position with ease.
Smooth Full-Motion Adjustability
Once it’s installed, the flat-screen TV wall mount is simple to adjust without using tools. You can extend the arms with ease to position your TV anywhere from 4.1″ to 21.6″ (105 to 550 mm) away from the wall. The TV mount swivels +/-60 degrees and tilts +/-15 degrees for optimum viewing.
Sleek Design

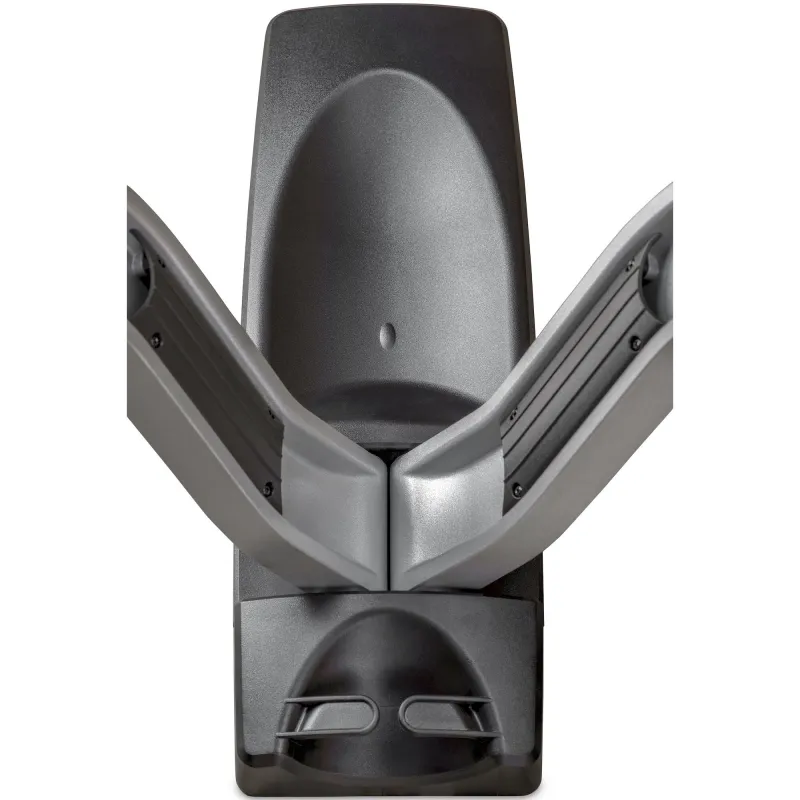

This premium television wall mount beautifully combines form and function. Designed to provide an impressive appearance in every position, the premium black and silver design makes it ideal in a company lobby or hallway, information kiosk, or living space. With the arms extended, the protective covers provide a tidy, professional look. The cable-management channel inside the arms keeps cables neatly tucked away.
Durable Construction
Engineered with steel and aluminum, the robust TV mount securely supports a TV with a maximum weight capacity of 165 lb. (75 kg).
FPWARPS is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
– LARGE 75″ TV WALL MOUNT: Heavy-duty full horizontal motion TV wall mount supports VESA compatible displays from 32 to 75 inch (165 lb/75 kg) w/ a durable full-motion steel frame & premium silver powder-coated finish
– WIDE RANGE OF MOTION: Full motion TV wall mount offers +/-60° swivel, +/-15° tilting to find the ideal viewing angle; Articulating extendable arms reach out to 21.6″ (550mm) from the wall & fold in to 4.1″ (105mm) for a lower profile
– COMPATIBILITY: Universal LCD/LED television mount supports LG, Samsung, Sony, Sharp, others (screws/spacers incl) & VESA bracket hole patterns 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400, 500×300, 600×300, 600×400, 800×400, 800×500
| Mounting | |
|---|---|
| Panel mounting interface | 150 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,500 x 300,600 x 300,600 x 400,800 x 400,800 x 500 |
| Maximum VESA mount | 800 x 500 mm |
| Minimum VESA mount | 150 x 100 mm |
| Mounting type | Wall |
| Maximum screen size | 190.5 cm (75″) |
| Minimum screen size | 81.3 cm (32″) |
| Maximum weight capacity | 85 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 55 cm |
| Distance to the wall (min) | 10.5 cm |
| Swivel angle range | -60 – 60° |
| Tilt angle range | -15 – 15° |
| Design | |
|---|---|
| Certification | REACH |
| Housing material | Aluminium, Plastic, Steel |
| Product colour | Black, Silver |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of screws | 38 |
| Screws included | Yes |
| Number of washers included | 4 |
| Wrench type | Hexagonal wrench |
| Washers included | Yes |
| Wrench included | Yes |
| Number of anchors included | 8 |
| Anchors included | Yes |
| Number of adapter brackets included | 2 |
| Adapter bracket included | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 10.3 kg |
| Height | 524 mm |
| Depth (max) | 86.5 cm |
| Depth | 550 mm |
| Width | 520 mm |
| Packaging data | |
|---|---|
| Package weight | 12.6 kg |
| Package height | 140 mm |
| Package depth | 910 mm |
| Package width | 460 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case height | 140 mm |
| Master (outer) case length | 910 mm |
| Master (outer) case width | 460 mm |
