StarTech.com Articulating TV Wall Mount, VESA Wall Mount, Supports 26 to 65 inch/99lb/Flat/Curved TVs, Retractable Low Profile Wall Mount TV Bracket, Adjustable Corner TV Wall Mount
- “PREMIUM 65″” TV WALL MOUNT: Articulating wall mount TV bracket supports TVs up to 65 inches; VESA patterns from 200×100 up to 400×400; Max weight capacity 99lb (45kg); Durable and sturdy frame with silver finish; For flat or curved screen TVs
- VERSATILE: Adjustable corner TV wall mount features tilt & swivel torque adjustment for smooth positioning; VESA wall mount features +/-90° swivel, +/-15° tilt, and double swivel arms; Low-profile TV mount allows for 4.13in from the wall and up to 22.1in
- EASY INSTALLATION: This extendable TV wall mount ships assembled for quick deployment; Articulating TV wall mount features integrated bubble level, mounting template, and wall plate with keyhole mounting for a swift installation
- COMPATIBILITY: Single stud TV mount for compatible TVs from Samsung, Sony, Hisense, TCL, and LG, among others; Compatible with most VESA patterns; Includes wood stud & concrete wall mounting hardware, spacers, adjustment tools, and various-sized screws
- AESTHETIC DESIGN: Robust steel and aluminum construction with decorative covers to maintain a professional look; Built-in cable management solution ideal for customer-facing applications; Retractable TV mount requires a single wood stud for installation”
Mount a flat or curved 400×400 VESA display to a wall in both residential and commercial environments

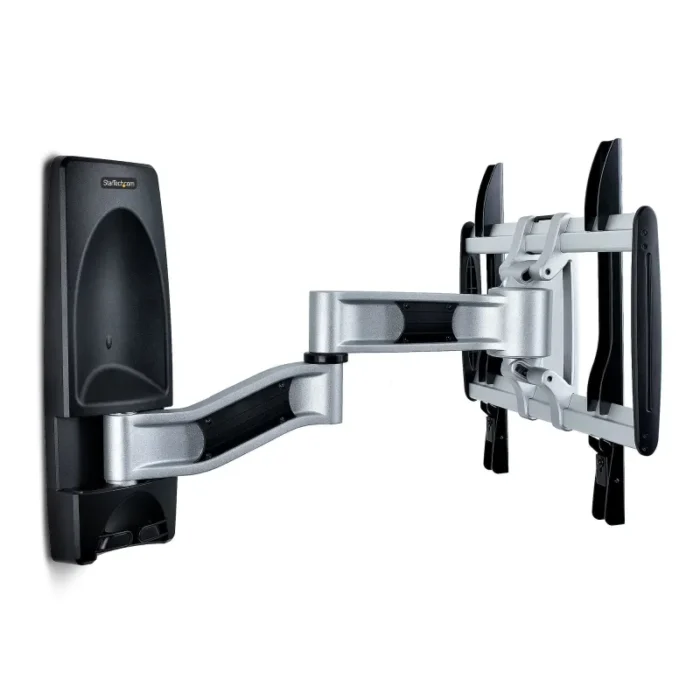

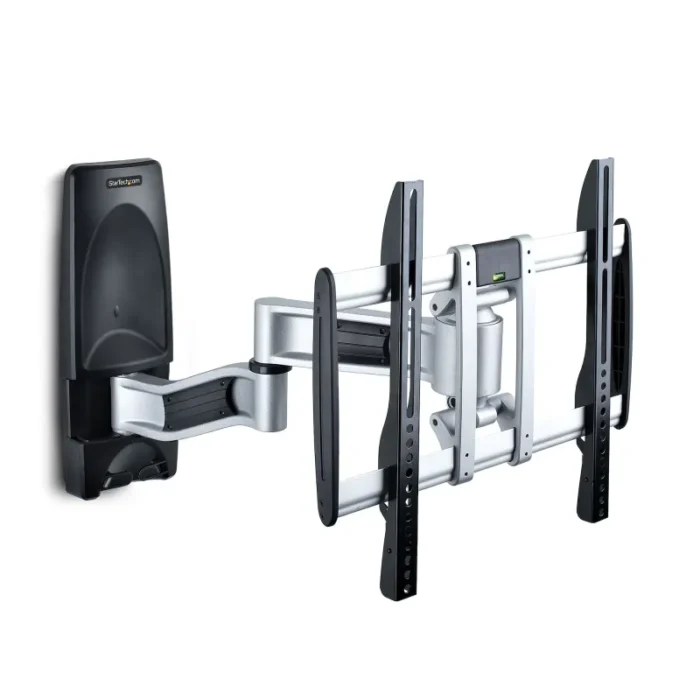

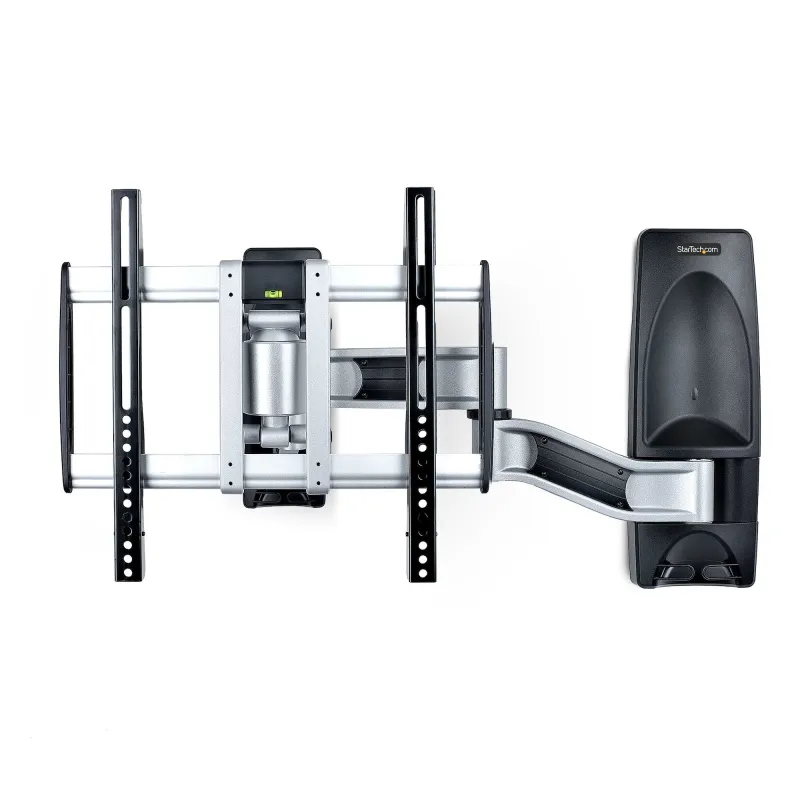

This VESA TV Wall Mount supports TV displays from 26″ to 65″ and up to 99.2 lb (45kg). Robust steel and aluminum frame for a long-lasting TV installation. The arm assembly provides smooth motion and retracts towards the wall for low-profile configurations. In addition, the articulating TV wall mount features an array of adjustments for an ideal viewing angle and supports VESA patterns from 200×200 to 400 x400.
Versatile TV Mounting
Securely mount a flat or compatible curved-screen TV or digital signage for visitors, clients, and employees to view. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities.
The lateral range of 3.1ft (95.6cm) is ideal for corner mounting, and the jointed arm folds on itself, creating a slim profile from the wall of just 4.1in (10.5cm) for limited-space installations.
Mount the articulating TV wall mount to a single wood stud or a concrete wall using the included keyhole-style mounting plate for quick and hassle-free installation. In addition, M4/5/6/8 screws of various lengths, matching washers, and spacers enhance the TV mounting compatibility.
Supported VESA mounting patterns: 200×200, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, and 400×400.
Smooth Motion and Tidy Installation
Customize the viewing experience and comfort with these adjustment capabilities. The TV mount can rotate +90/-90 degrees at the wall mount assembly plate, as well as at both pivot points, while the VESA vertical bracket can be tilted +15/-15 degrees.
The arm assembly extends up to 22.1in (56.2cm) from the wall to accommodate different viewing positions, including corner mounting. Built-in cable management and a wall mount cover for an organized and visually appealing installation.
This TAA corner TV mount is backed for five years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
| Mounting | |
|---|---|
| Panel mounting interface | 200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300 |
| Maximum VESA mount | 400 x 400 mm |
| Minimum VESA mount | 200 x 100 mm |
| Mounting type | Wall |
| Maximum screen size | 165.1 cm (65″) |
| Minimum screen size | 66 cm (26″) |
| Maximum weight capacity | 45 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 56.2 cm |
| Distance to the wall (min) | 10.5 cm |
| Angle of rotation | 90° |
| Rotating | Yes |
| Swivel angle | 180° |
| Swivelling | Yes |
| Tilt angle range | -15 – 15° |
| Tilt adjustment | Yes |
| Height adjustment | No |
| Design | |
|---|---|
| Product colour | Black, Silver |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of screws | 38 |
| Screws included | Yes |
| Number of washers included | 4 |
| Wrench type | Hexagonal wrench |
| Wrench included | Yes |
| Number of anchors included | 8 |
| Anchors included | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 7.8 kg |
| Height | 105 mm |
| Depth (max) | 45 cm |
| Width | 500 mm |
| Packaging data | |
|---|---|
| Package weight | 9.2 kg |
| Package height | 124 mm |
| Package depth | 460 mm |
| Package width | 624 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case height | 124 mm |
| Master (outer) case length | 460 mm |
| Master (outer) case width | 624 mm |
