StarTech.com 10ft (3m) USB-C Charging Cable, Side Screw Locking, 240W (5A) PD EPR, Silicone Jacket w/Braided Nylon, USB 2.0 Laptop Charger Cable, USB-IF Certified, Rugged USB-C Charging Cord
- 3 m
- USB C Straight Male
- USB C Straight Male
- USB 2.0 USB Power Delivery (USB PD) 3.1 240 W
- Black
- 1 pc(s)
Maintain a secure connection using this rugged USB-C cable with side-locking screws
Connect a charger or hub to a USB Power Delivery (PD) 3.1-enabled device, using this USB-C Charging Cable. The USB-C charger cord delivers up to 240W of Extended Power Range (EPR) Power Delivery and 5A output for fast charging. The connector markings enable quick visual identification, distinguishing it from other similar-looking or unmarked USB-C cables. Eliminate guesswork and always choose the right Type-C cable to support full 240W charging.

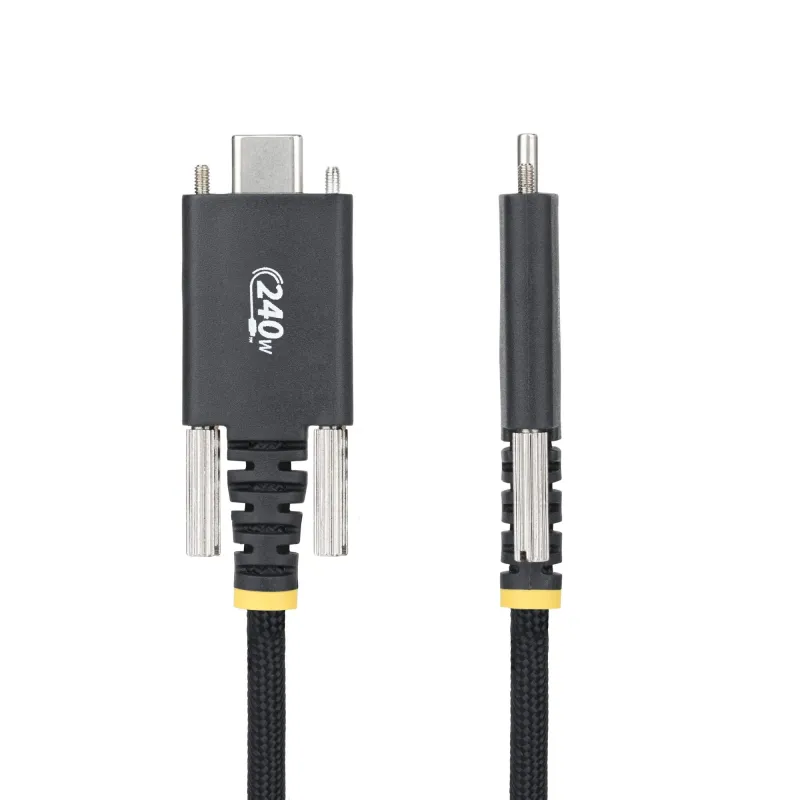

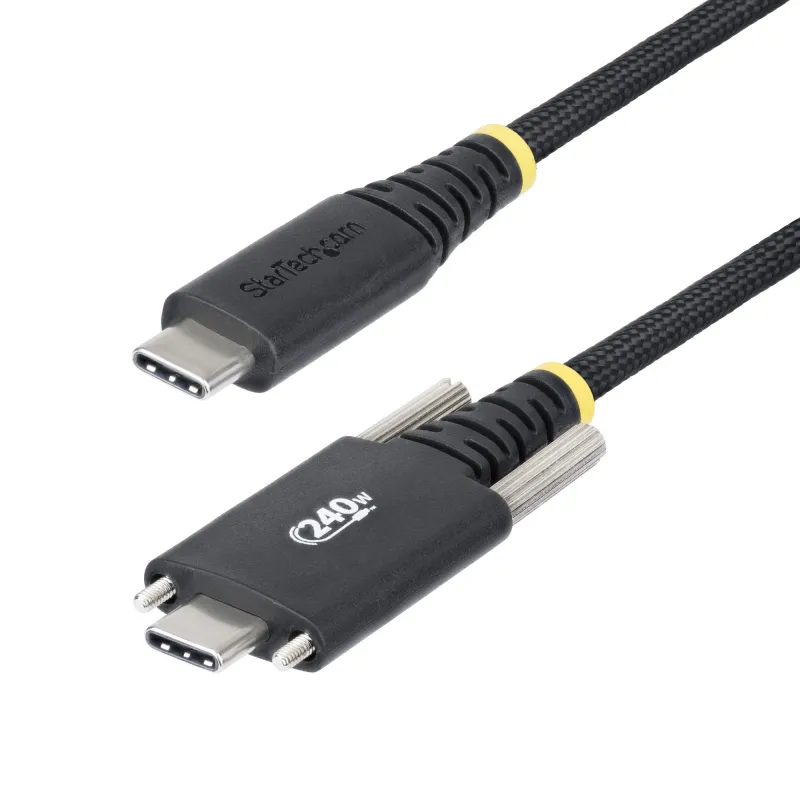

Screw Locking USB-C
This cable features dual locking screws that can securely connect to your USB-C peripherals and can prevent accidental disconnection from your devices. The knurled screws can be removed from the cable completely allowing it to be used as a standard USB-C cable if required.
The screws are designed to fit all devices that use a standard side screw locking input.
Quality Construction
The USB-C EPR Charging Cable features a silicone inner jacket with a braided nylon exterior for optimal flexibility and wear protection. The durable nickel-plated connectors are designed for frequenty daily use, and are rated to operate beyond 20,000 insertion cycles.
Charge Mobile Devices On The Go
Charge a USB-C device with a USB-C wall charger, car charger, or power bank. The 3-meter (9.8-foot) USB Type-C cable is the ideal length for desk and larger workstations where extra length is desired.
Power a Laptop
With up to 5A of output, the USB-C Charger Cord supports up to 240W of Power Delivery to charge a USB-C laptop, or fast charge a tablet or smartphone. To use, connect the cable from a USB-C laptop to a USB-C wall charger.
The StarTech.com Advantage
| Features | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | No |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 240 W |
| USB Power Delivery revision | 3.1 |
| Product colour | Black |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable jacket type | Braided |
| Cable jacket material | Silicone |
| Connector contacts plating | Nickel |
| AWG wire size | 30 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 lockable | Yes |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | USB C |
| Connector 1 | USB C |
| USB version | USB 2.0 |
| Power | |
|---|---|
| Output current (max) | 5 A |
| Output voltage | 48 V |
| Weight & dimensions | |
|---|---|
| Weight | 154 g |
| Cable diameter | 4.7 mm |
| Cable length | 3 m |
| Packaging data | |
|---|---|
| Package weight | 160 g |
| Package height | 20 mm |
| Package depth | 128 mm |
| Package width | 220 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Certificates | |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Logistics data | |
|---|---|
| Master (outer) case height | 210 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case width | 500 mm |
| Products per master (outer) case | 70 pc(s) |
