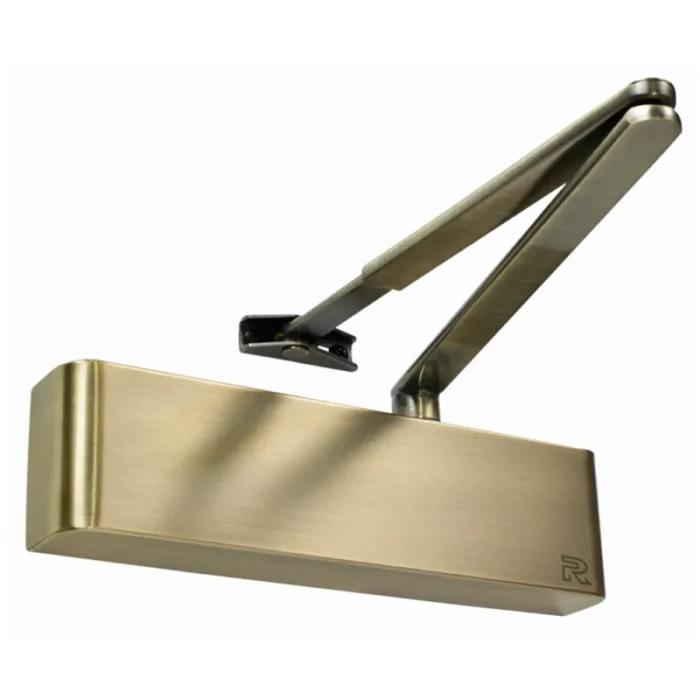

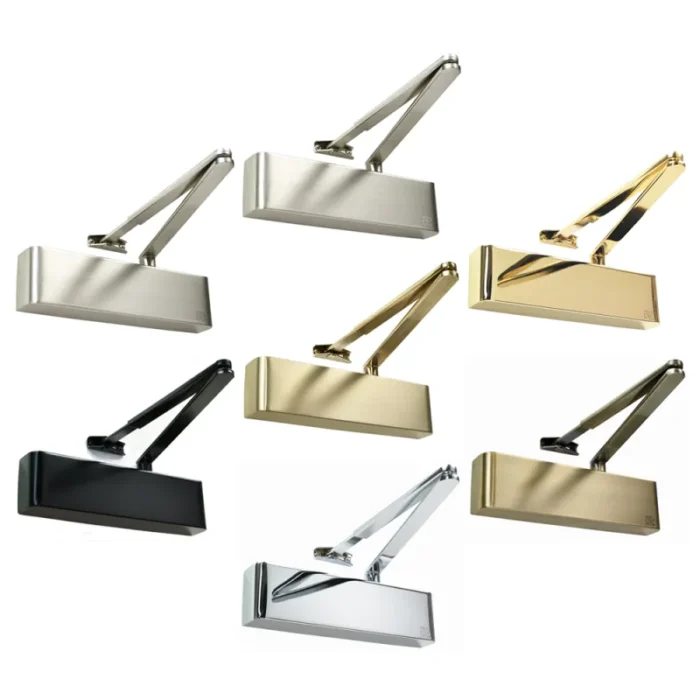

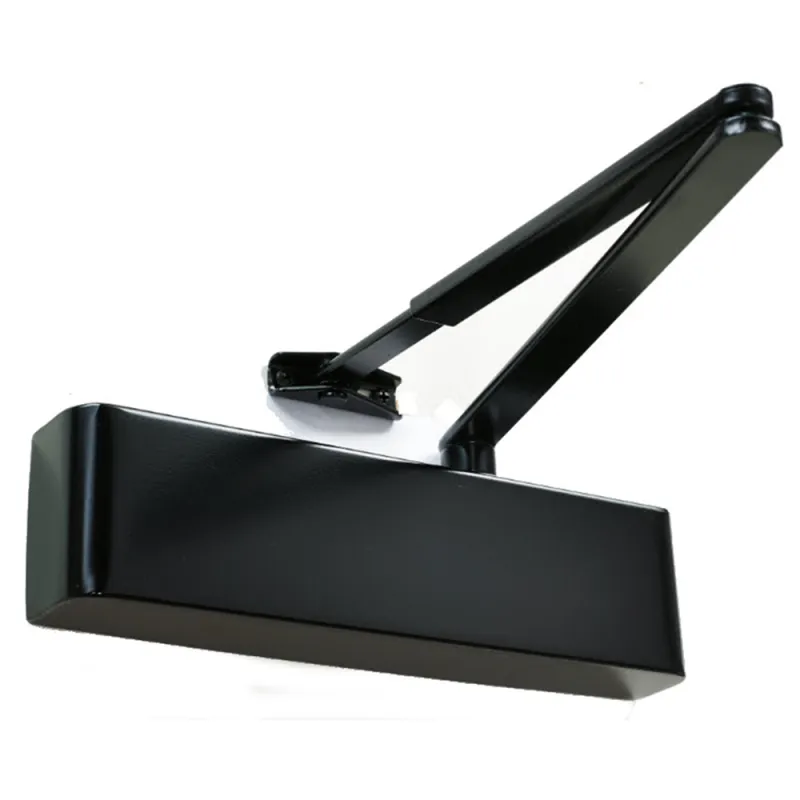

Rutland TS9205 Adjustable Power Overhead Door Closer Size 5
Rutland TS.9205 Heavy Duty 2 Hour Fire Rated Power Size 2-5 Top Hung Overhead Door Closer EN2-5
The TS.9205 door closer is known for high efficiency, dual zone, quality, reliability and ease of opening, making it one of our top specified closers. It assists doorsets in meeting the requirements of Approved Document M and BS 8300. Like all our products the TS.9205 has been fire and endurance tested by UKAS approved Third Party test bodies. The CE certificate & DoP can be downloaded below.
With its easy-to-read instructions and adjustable power EN 2-5 mechanism it saves you approximately 12.5 minutes on fitting time.
Temperature stable hydraulic oil is unique to Rutland closers. This means the TS.9205 can be used in temperatures from -30ºC to +60ºC.
- Renown High Efficiency, Quality, Reliability and Ease of opening.
- Adjustable Power EN2-5.
- Opening Angle 180°
- Universal Application
- Adjustable Latch Speed
- Adjustable Closing Speed
- Max Door Width: 630mm
- Max Door Weight: 60kg
- Easy to read instructions, saving over 12 minutes of fitting time.
- Assists Document M and BS 8300.
- Temperature stable hydraulic oil – used between -30ºC – +60ºC
- 35 Year Manufacture Guarantee
TS.9205 Door Closer Power Size (Adjustable by spring):
- EN2 – Up to 850mm/45kg
- EN3 = Up to 950mm/60kg
- EN4 = Up to 1100mm/80kg
- EN5 = Up to 1250mm/110kg
TS.9205 Door Closer Cover Size:
- 269 x 69mm x 40mm
