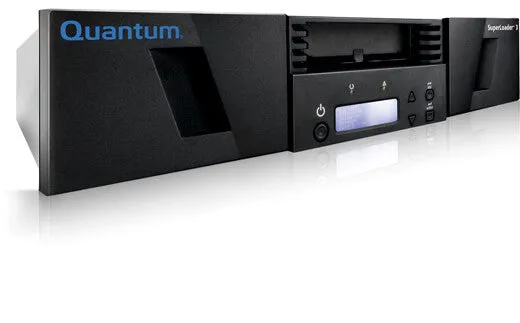

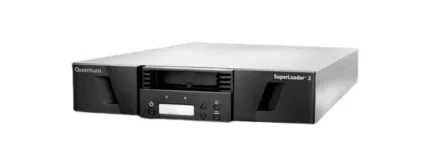

Quantum SuperLoader 3 Storage auto loader & library Tape Cartridge 192 TB
- Storage auto loader & library Tape Cartridge Black
- SAS Number of slots (max): 16
- 2U
- Native capacity: 192 TB Compressed capacity: 480 TB
- Mean time between failures (MTBF): 1500000 h
The SuperLoader 3 brings you a full suite of advanced features at an affordable price with easy integration, an intuitive user interface, and compatibility with a broad range of backup software packages. And because you can easily expand from 8 to 16 cartridge slots, your investment is protected as your needs grow.
What is SuperLoader 3?
Designed for simple and reliable backups, the SuperLoader® 3 offers an exclusive package of advanced features including StorageCare® Guardian, remote management, and barcode reader—all at no additional cost. It also gives you the widest range of drive options in the industry to support data requirements up to 3,840 TB—with the flexibility to expand as your storage needs grow.
StorageCare Guardian
Complete Solution with StorageCare Guardian – A remote monitoring and diagnostics tool that proactively monitors your SuperLoader 3 over the Internet and uses intelligent diagnostics to remotely service the unit if necessary
Backup with Deduplication
Backup with Deduplication – Includes DATASTOR Shield backup software; reduces data by 20X. Up to 400 TB* of capacity with standard compression; up to 3,840 TB of capacity with DATASTOR Shield.
*2.5:1 compression, 20:1 deduplication
| Performance | |
|---|---|
| Bundled software | DATASTOR Shield Deduplication |
| Mean time between failures (MTBF) | 1500000 h |
| Number of slots (max) | 16 |
| Product colour | Black |
| Web-based management | Yes |
| Storage media types supported | LTO-8HH |
| Standard interfaces | Serial Attached SCSI (SAS) |
| Form factor | 2U |
| Interface | SAS |
| Media type | Tape Cartridge |
| Product type | Storage auto loader & library |
| Storage | |
|---|---|
| Maximum supported storage capacity | 400 TB |
| Compressed capacity | 480 TB |
| Native capacity | 192 TB |
| Data transmission | |
|---|---|
| Data transfer rate | 6 Gbit/s |
| Backup rate native performance | 1080 GB/h |
| Backup rate compressed performance | 2700 GB/h |
| Power | |
|---|---|
| Power requirements | 90 – 256VAC |
| Weight & dimensions | |
|---|---|
| Weight | 14.1 kg |
| Height | 86.6 mm |
| Depth | 698.5 mm |
| Width | 424.2 mm |
| Operational conditions | |
|---|---|
| Non-operating altitude | -153 – 12192 m |
| Operating altitude | -153 – 3048 m |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | 10 – 35 °C |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 424.2 x 698.5 x 86.6 mm |
| Chassis type | Rackmount |
| Data compression | 2.5:1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84719000 |
