Portable Lifting Adjustable Gantry Crane 1 Tonne
Sealey SG1000 Portable Lifting Adjustable Gantry Crane 1 Tonne

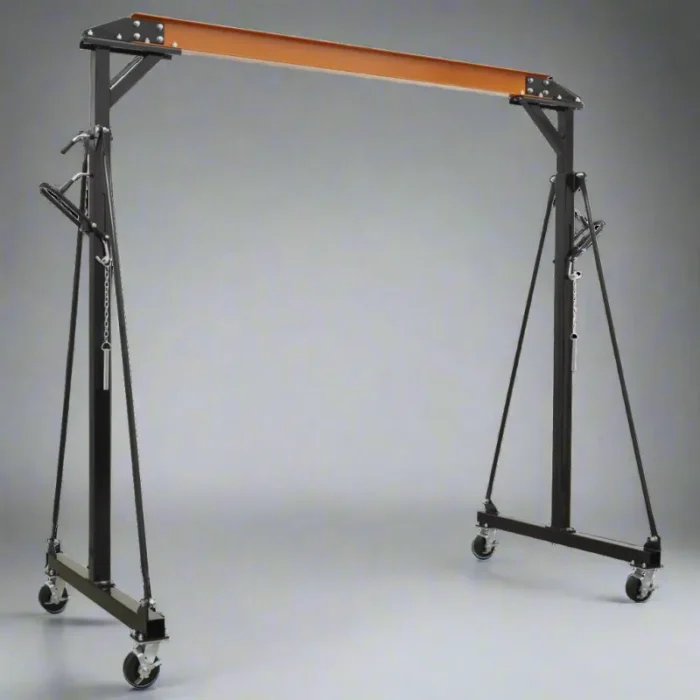

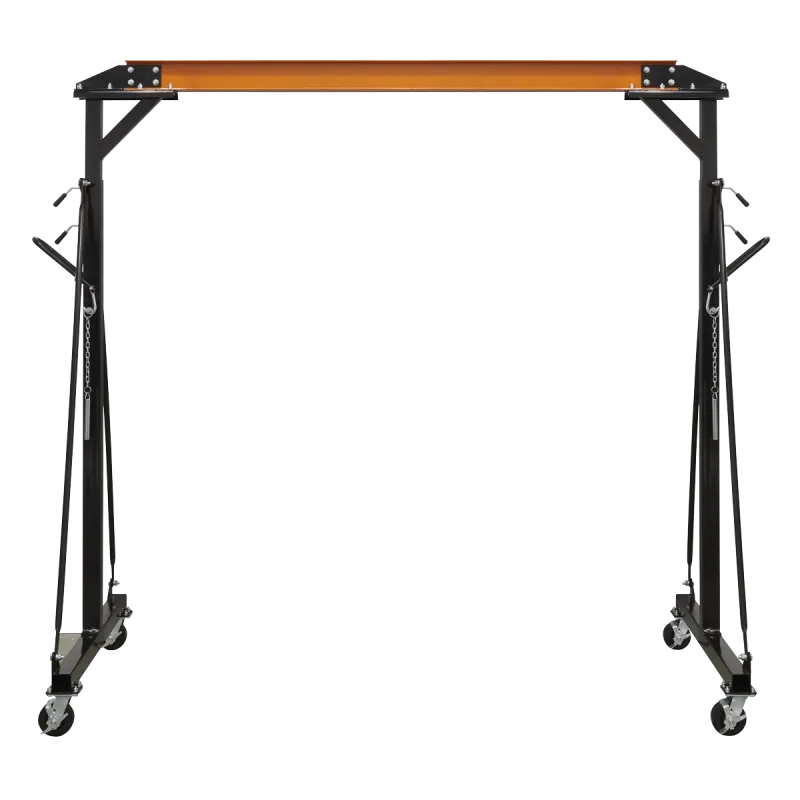

The Sealey SG1000 offers 1-tonne lifting capacity in a portable, height-adjustable frame. This workshop gantry crane features a sturdy all-steel construction with an I-beam cross member and provides 2400mm of working width. Adjustable from 2400mm to 3600mm in height, it adapts to various ceiling constraints while maintaining stability through four locking castors.
Practical Workshop Applications
1-Tonne Lifting Capacity
Handles substantial loads up to 1000kg, making it suitable for lifting engines, machinery, and other heavy components in professional workshops.
Wide Working Area
Provides 2400mm width and 1200mm depth clearance, allowing access to vehicles, equipment, and machinery from multiple angles during maintenance tasks.
Variable Height Adjustment
Adjusts from 2400mm to 3600mm in 100mm increments, accommodating different ceiling heights and lifting requirements across various workshop spaces.
Robust I-Beam Construction
Utilizes steel I-beam cross member for maximum structural integrity at the critical load-bearing point, ensuring safety during lifting operations.
Mobile Base with Safety Features
Four swivel castors with locking mechanisms secure the unit during stationary use, while clear instructions prevent unsafe movement under load.
Tool-Free Assembly
Designed for quick setup and disassembly, allowing relocation between work areas without specialized tools or equipment.
Level Lifting Application
Specially suited for workshops and garages where maintaining precise level control during lifting operations is essential for safety and efficiency.
Technical Specifications
Model SG1000 from Sealey. Maximum load capacity: 1000kg. Gantry width: 2400mm. Maximum depth: 1200mm. Height adjustment range: 2400-3600mm in 100mm increments. Product weight: 128kg. All-steel construction with I-beam cross member.
Important Information
Safety Note: This gantry crane must NOT be moved while loaded. Always ensure the castors are locked during lifting operations.
Delivery Notice: Due to the 128kg product weight, additional assistance will be required at the delivery point.
Additional Equipment: Lifting tackle not included with this gantry crane. Purchase appropriate lifting equipment separately based on your specific applications.
