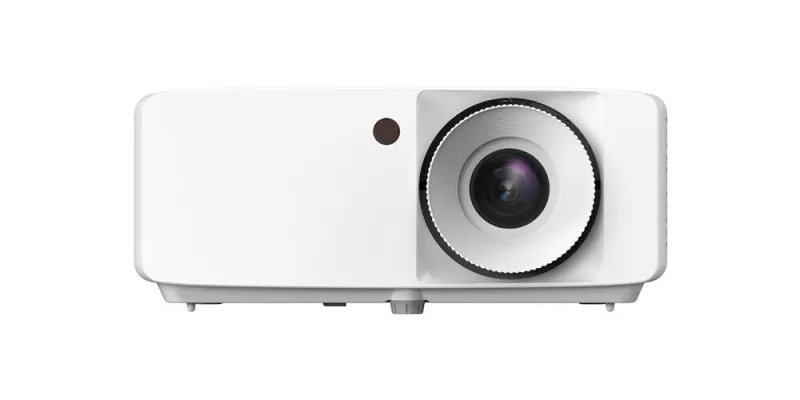

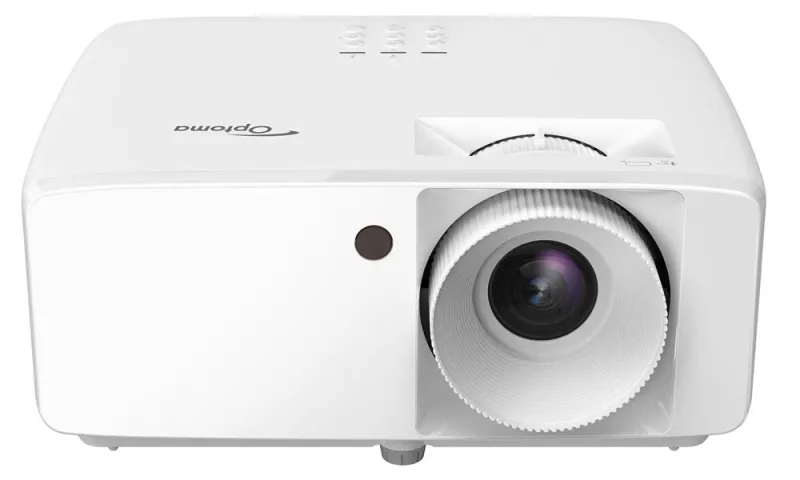

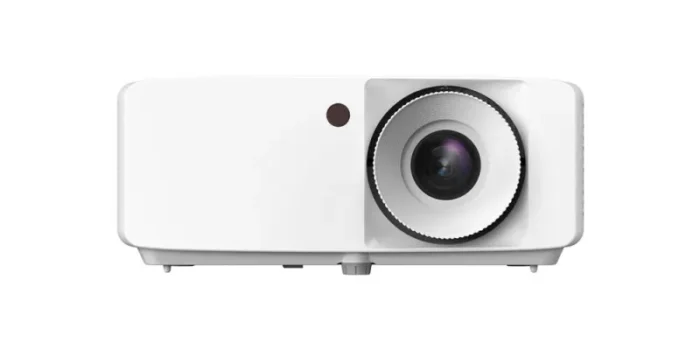

Optoma ZH400 4000 ANSI lumens DLP 1080p (1920×1080) 3D White
- Bright Full HD 1080p DuraCore laser projector
- 4000 lumens and IP6X certified
- Compact for easy installation
- 1.1x zoom, 360-degree and portrait projection
- Reduced power consumption for a long life span
- DuraCore laser technology delivers 30,000 hours maintenance free laser light source
- External power supply
- More reliability, portability and energy efficiency
The ZH400 is one of Optoma’s most compact and hassle-free Full HD 1080p DuraCore laser projectors to date. Designed for maintenance-free continuous operation, this 4000-lumen projector delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.¹
To support Optoma’s commitment to sustainability, the ZH400 cuts power consumption by up to 45% compared to Optoma’s lamp-based projectors.² Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint.
An added benefit, the ZH400 features an external power supply offering more reliability, portability and energy efficiency.
Designed with the environment in mind, the eco-friendly packaging contains up to 97% recyclable materials.³ In addition, the compact product and packaging size of the ZH400 projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.¹
Geared for conference rooms, boardrooms, and other corporate spaces, the ZH400 features 360-degree and portrait mode operation for a flexible setup. For ultimate convenience it comes with an RS232 connection for monitoring and controlling and a built-in speaker.
Designed for the future
We are committed to reducing the overall environmental footprint of our products so we can do right by the planet.
Designing innovative products with sustainability in mind considers every phase of a product’s lifecycle, from design, manufacturing, packaging, and logistics, to usage.
| Projector | |
|---|---|
| Keystone correction, horizontal | -30 – 30° |
| Keystone correction, vertical | -30 – 30° |
| Horizontal scan range | 15 – 140 kHz |
| Vertical scan range | 24 – 120 Hz |
| Uniformity | 75% |
| Number of colours | 1.073 billion colours |
| Contrast ratio (dynamic) | 2000000:1 |
| Projection distance | 1 – 10 m |
| Screen size compatibility | 508 – 7620 mm (20 – 300″) |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 300000:1 |
| Projector native resolution | 1080p (1920×1080) |
| Projection technology | DLP |
| Projector brightness | 4000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source | 30000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Offset | 116% |
| Throw ratio | 1.48:1 ~ 1.62:1 |
| Zoom ratio | 1.1:1 |
| Zoom type | Manual |
| Focal length range | 12.81 – 16.74 mm |
| Video | |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| 3D | Yes |
| Full HD | Yes |
| Analog signal format system | NTSC J, NTSC M, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L |

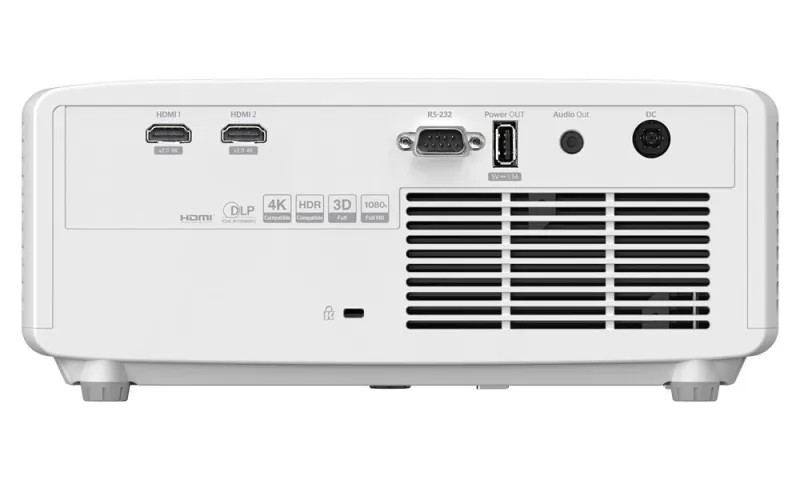

| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232 |
| Headphone outputs | 1 |
| DVI port | No |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Password protection | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Number of OSD languages | 25 |
| On Screen Display (OSD) | Yes |
| Noise level | 27 dB |
| Multimedia | |
|---|---|
| Number of built-in speakers | 1 |
| RMS rated power | 15 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | White |
| Market positioning | Portable |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Auto power off | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (max) | 139 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 88 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 2500 m |
| Operating relative humidity (H-H) | 0 – 80% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 4.2 kg |
| Height | 114 mm |
| Depth | 216 mm |
| Width | 274 mm |
| Weight | 3 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
