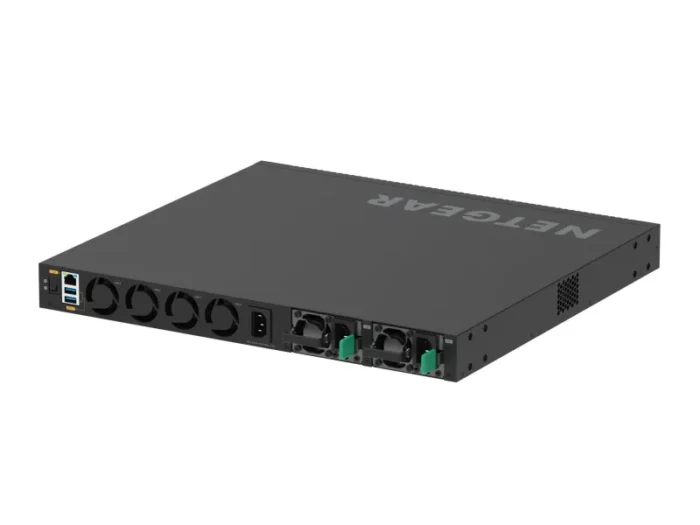

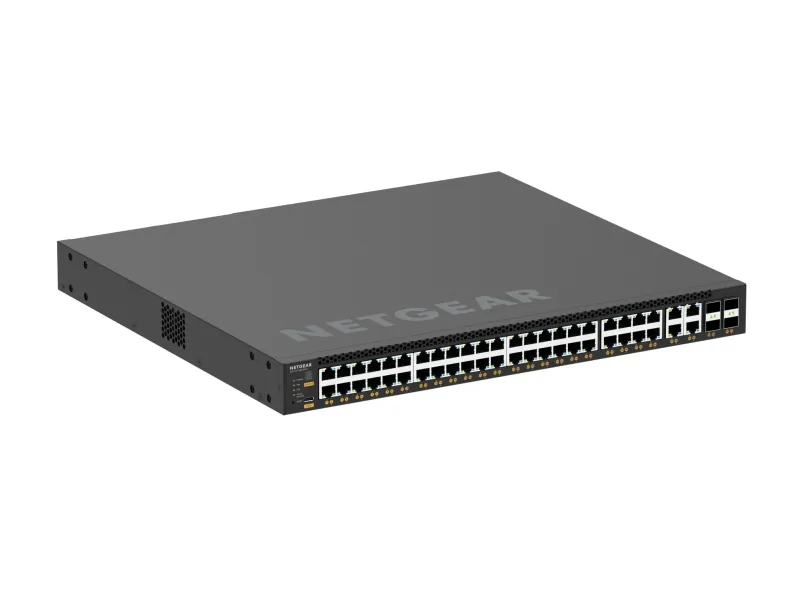

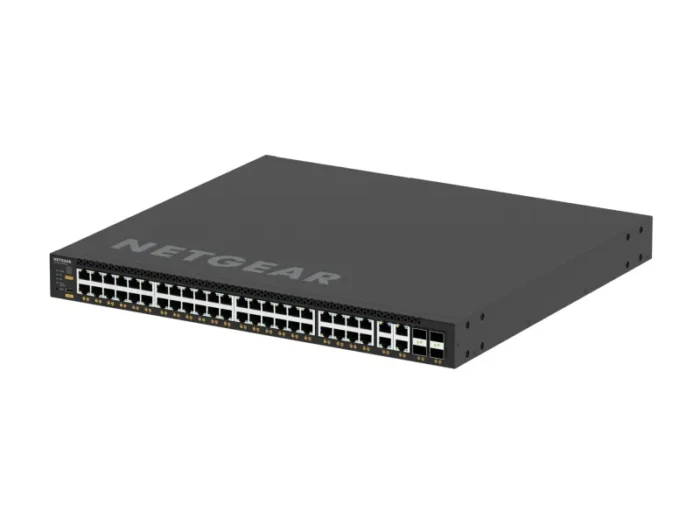

NETGEAR M4350-44M4X4V Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
- 44 2.5G and 4 10G/Multi-gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
- 550W internal power supply providing 194W of PoE budget
- 2 slots for modular power supplies (1+1 redundancy and/or EPS share)
- Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
- The PoE budget can reach 3,314W, the redundant PoE budget can reach 1,794W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there’s little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
| Management features | |
|---|---|
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | AC-in jack |
| SFP28 ports quantity | 4 |
| 10G Ethernet (copper) ports quantity | 4 |
| 2.5G Ethernet (copper) ports quantity | 44 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Number of VLANs | 4093 |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
| Data transmission | |
|---|---|
| Packet buffer memory | 32 MB |
| Jumbo frames | 12000 |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 2.27 µs |
| Store-and-forward | Yes |
| Throughput | 372 Mpps |
| Switching capacity | 500 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Authentication type | RADIUS, TACACS+ |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted random early detection (WRED) |
| MAC address filtering | Yes |
| Password protection | Yes |
| BPDU filtering/protection | Yes |
| Static port security | Yes |
| Root protection | Yes |
| DoS attack prevention | Yes |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Access Control List (ACL) ingress | 511 |
| Access Control List (ACL) egress | 1023 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMP V1, V2, V3 |
| Design | |
|---|---|
| Airflow direction | Front-to-back airflow |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| sFlow | Yes |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Memory type | DDR4-SDRAM |
| Processor frequency | 1800 MHz |
| Processor model | ARM Cortex-A57 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (max) | 351.5 W |
| Power consumption (typical) | 133.5 W |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 3314 W |
| Power over Ethernet (PoE) power per port | 90 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Other features | |
|---|---|
| Power supply | 550 W |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 3000 m |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 7.34 kg |
| Height | 43.2 mm |
| Depth | 400 mm |
| Width | 440 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB Type-C |
| Packaging data | |
|---|---|
| Included power plug types | EU, UK, NA |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
