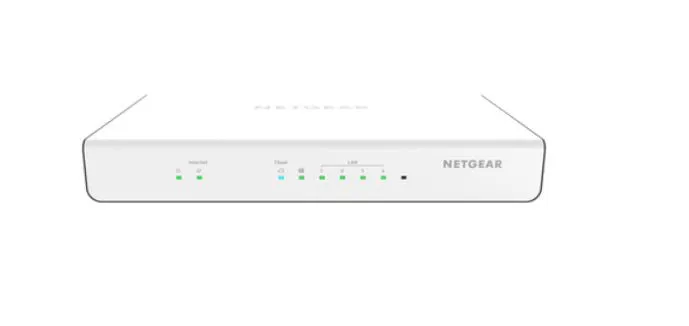

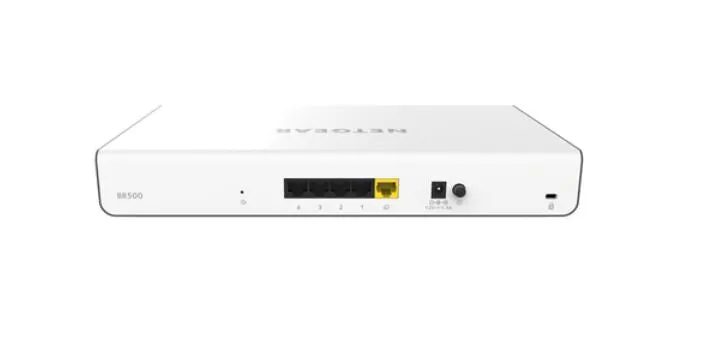

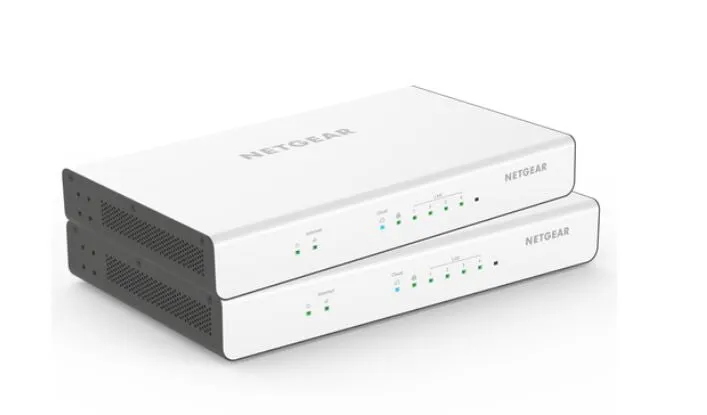

NETGEAR BR500 Kit wired router Gigabit Ethernet White
- One-step Instant VPN for business protection and remote or site-to-site secure access
- Easy setup, configuration and instant VPN connectivity from the NETGEAR Insight app or Cloud Portal
- Stateful Packet Inspection Firewall and easy rule setting for instant protection against intrusion
- Router setup (DHCP, NAT rules, DMZ ports) from the Insight app or Cloud Portal
- Full routing capabilities with DHCP, NAT, PPTP, L2TP
- VPN Business Router with InterVLAN routing, Support for QoS and 802.1q VLANs (256)
- VLAN in VLAN support (QinQ) for private VLAN tagging in ISP network for an additional layer of isolation and security
- VPN with SSL Encryption (DES, 3DES, AES)
Insight Instant VPN Router
Have you ever wanted to reach the resources that you have in your office such as a file server or a NAS (Network Attached Storage) while you were out on a business errand or a customer visit and found yourself stranded?
Has your business grown and you have a well-established network in your main office, and want your employees in your satellite offices to access the same resources?
NETGEAR has recognized the needs of modern businesses and summarized them in the NETGEAR® Insight™ Instant VPN Router. A business-class router with Instant VPN technology, world’s easiest and most user friendly way to remotely connect to your office as if you were there and never left. It has never been this easy to connect multiple offices together as if they were on one and the same network and shared all the same resources.
The VPN connections are encrypted to offer a secure link between your laptop
and your office whether you’re on the road, at a coffee shop, or in another country. The same is true for site-to-site connections, when you decide to connect your home, office, or several other locations that need to be interconnected.
In addition to being a high performance router for small to medium-size businesses, it also offers a Stateful Packet Inspection (SPI) firewall supporting over a hundred rules to keep the bad guys out and your business safe.
Finally, with NETGEAR Insight, you have visibility and access to all features from routing to VPN setup, configuration, management and monitoring all from a single pane of glass, on your phone or laptop.
WAN connection | |
---|---|
SFP WAN | No |
3G/4G USB modem compatibility | No |
SIM card slot | No |
DSL WAN | No |
Ethernet WAN | Yes |
Network | |
---|---|
Port forwarding | Yes |
VLAN support | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet interface type | Gigabit Ethernet |
Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Management features | |
---|---|
Universal Plug and Play (UPnP) | Yes |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
Ports & interfaces | |
---|---|
Ethernet LAN (RJ-45) ports | 5 |
Protocols | |
---|---|
Supported network protocols | IPv6 |
Routing protocols | RIP-1, RIP-2 |
DMZ support | Yes |
DHCP server | Yes |
Security | |
---|---|
Network address translation (NAT) | Yes |
DoS attack prevention | Yes |
URL filtering | Yes |
Authentication method | NETGEAR Insight SSO |
Firewall | Yes |
Security algorithms | 3DES, DES, IPSec, MD5, SHA-1 |
Features | |
---|---|
Certification | FCC 15 B, CE, C-Tick B, VCCI |
Safety | CE/LVD, cUL |
Linux operating systems supported | Yes |
Mac operating systems supported | Yes |
Windows operating systems supported | Yes |
Internal memory | 1024 MB |
Flash memory | 128 MB |
Processor frequency | 1700 MHz |
Built-in processor | Yes |
Design | |
---|---|
Product colour | White |
Power | |
---|---|
Output current | 1.5 A |
Output voltage | 12 V |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 0 – 95% |
Operating relative humidity (H-H) | 0 – 90% |
Storage temperature (T-T) | -20 – 70 °C |
Operating temperature (T-T) | 0 – 45 °C |
Weight & dimensions | |
---|---|
Weight | 1.55 kg |
Height | 43.6 mm |
Depth | 187.5 mm |
Width | 314 mm |
