Mini 240V Double Pole Mains Camper Van Hook Up Electrical Kit
This is a complete mini kit to wire up your camper van to 240V with a mains hook up, perfect for when you’re on site. This kit will provide you with one double socket.
This kit is available in two forms; we can either provide you with all the consumer unit parts (enclosure, breakers, cables etc.) for self assembly by a professional electrician, or we can pre-wire the consumer unit for you in-house. With this option all that’s required once installed in the van would be attach the sockets and 16A hook up point.
When using your camper in the EU, they tend to use a system where the natural is not earthed, having double pole equipment ensures a higher level of safety. The outlet is also individually protected by their own MCB as per regulations.

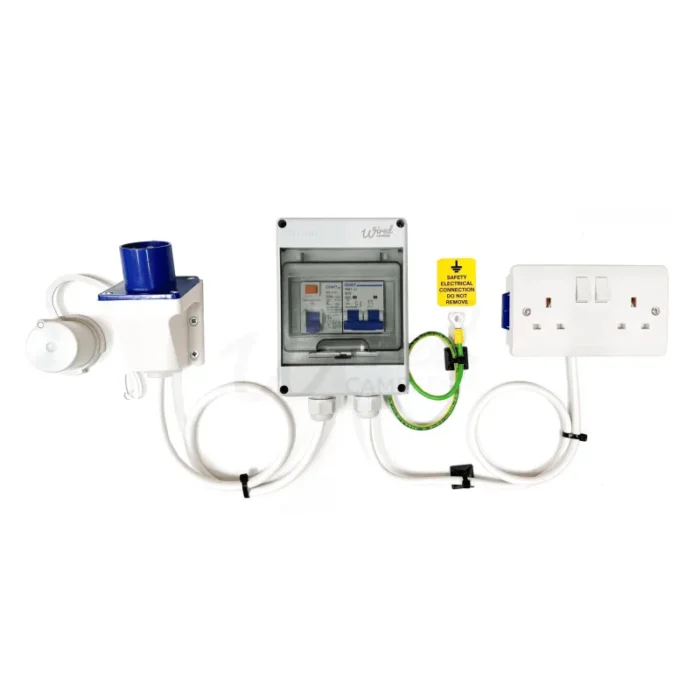

KIT CONTAINS
IP55 Rated 5 Way Enclosure with Earthing Bar
63A 30 mA Double Pole RCD
10A Double Pole Type B MCB

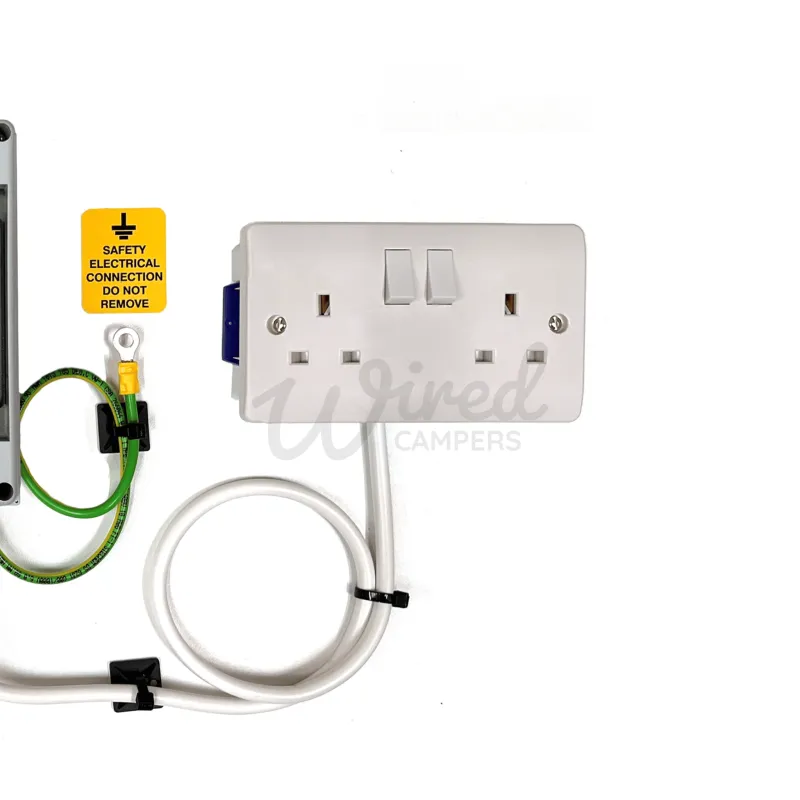

13A White Plastic Double Socket
Double Socket Mounting Box

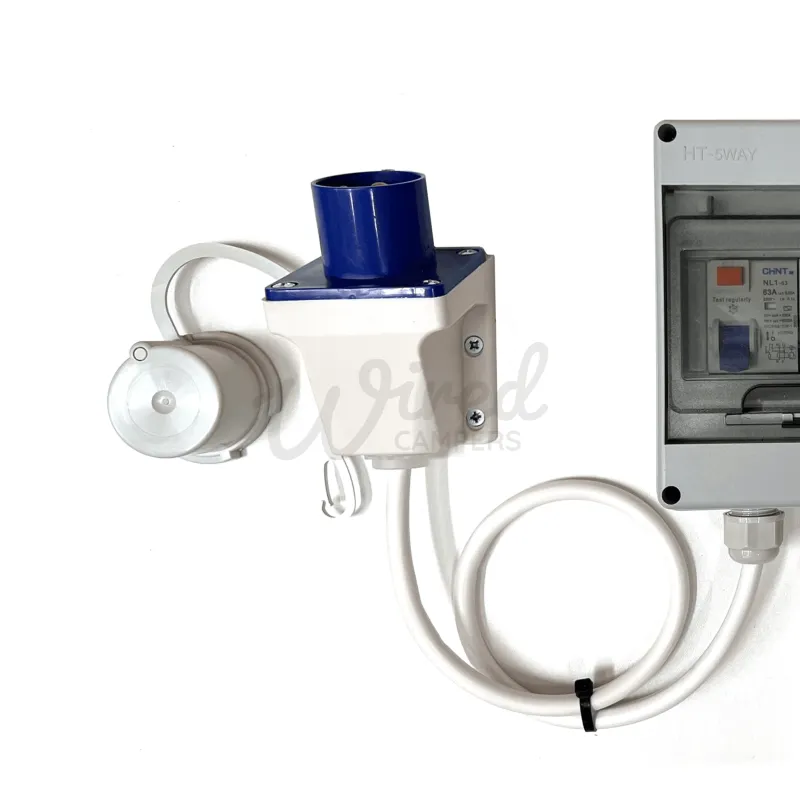

240V IP44 Rated Hook Up Point With Dust Cover
5M 2.5MM2 Flexi Mains Cable For Hook Up
3 X 3M 1.5MM2 Flexi Mains Cable For The Socket
1M Earth Cable
2 X 20MM Glands
ADDITIONAL IMPORTANT INFORMATION
As with all the kits and layouts provided on our site, they serve as a guide only. All wiring and installation must be carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.
ELECTRICAL INSTALLATONS MUST BE COMPLETED BY A QUALIFIED PROFESSIONAL. WIRING SHOULD BE IN ACCORDANCE WITH THE LATEST EDITION OF THE IET REGULATONS (BS 7671).
