Miele Wall Mounted Hood DAH4970 – Various Colours

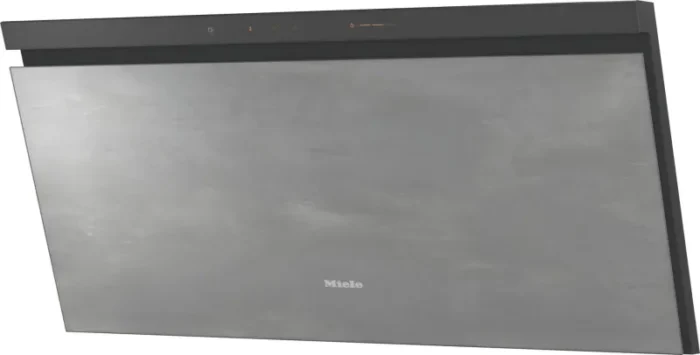

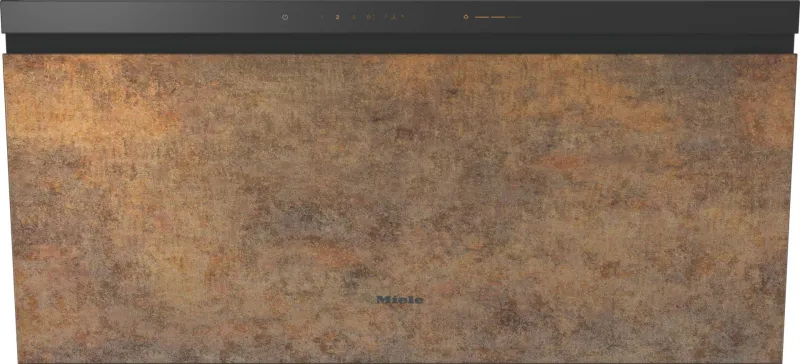

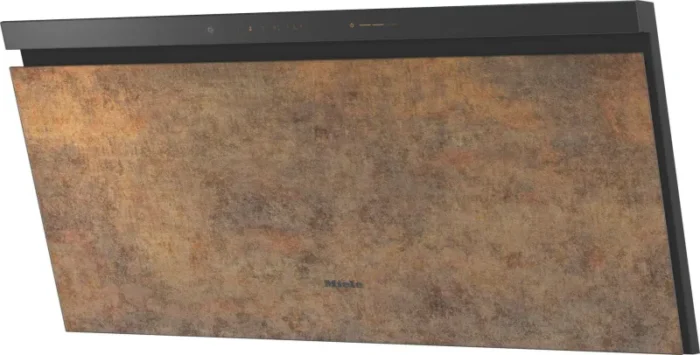

Miele 90cm Wide Wall Mounted Angled Hood – Sienna Concrete / Sienna Bronze
Key Information
- 3 Speeds and a Booster Power Level
- Maximum Extraction Rate (Normal Use): 415 M³/H
- Maximum Extraction Rate (Using Booster): 875 M³/H
- Maximum Noise Level (Normal Use): 50 dB
- Maximum Noise Level (Using Booster): 68 dB
- Airflow Range: 215-875 M³/H
- Noise Level Range: 38-68 dB
- Suitable For Air Extraction Or Recirculation Mode
Features
- Motor: ECO motor provides high air throughput with minimal sound emissions.
- Controls: SmartControl technology, touch-on-glass controls, and electronic controls with three power levels and a booster function.
- Filtration: Equipped with a 10-ply stainless steel grease filter and optional DKF 29 charcoal filter for odor absorption.
- Design: Features a stylish bronze patina color and a unique front panel design.
- Energy Efficiency: Rated A++ for energy efficiency, minimizing environmental impact while reducing operating costs.
- Lighting: Integrated LED lighting (1 x 3.2 W) with a light intensity of 260 lx and a color temperature of 3500 Kelvin, including a dimmer function.
Performance
- Air Throughput: Delivers performance across multiple levels with maximum air throughput reaching up to 875 m³/h in booster level 2.
- Sound Levels: Operates at a noise level starting from 38 dB(A) in Level 1 to a maximum of 68 dB(A) in Booster level 2, ensuring minimal disruption.
Convenience Features
- Grease Filter Indicator: Programmable indicator to signal when the grease filter needs cleaning.
- Run-On Time: Adjustable run-on time (5/15 minutes) to clear residual fumes after cooking.
- Safety Features: Includes safety switch-off and single-ply safety glass (ESG).
Technical Specifications
- Dimensions: Canopy width is 898 mm, with an overall height adjustable between 830 mm and 1210 mm for extraction mode.
- Installation: Compatible with both ducted and recirculation installations. Exhaust connection options at the top or rear.
- Weight: Net weight of the unit is 18 kg.
Additional Information
- Bronze EAN: 4002516802921
- Concrete EAN: 4002516802914
- Material Number: 12545680
- Old Material Number: 28H4970PGB
- Voltage/Frequency: 230 V, 50 Hz
- Fuse Rating: 10 A
