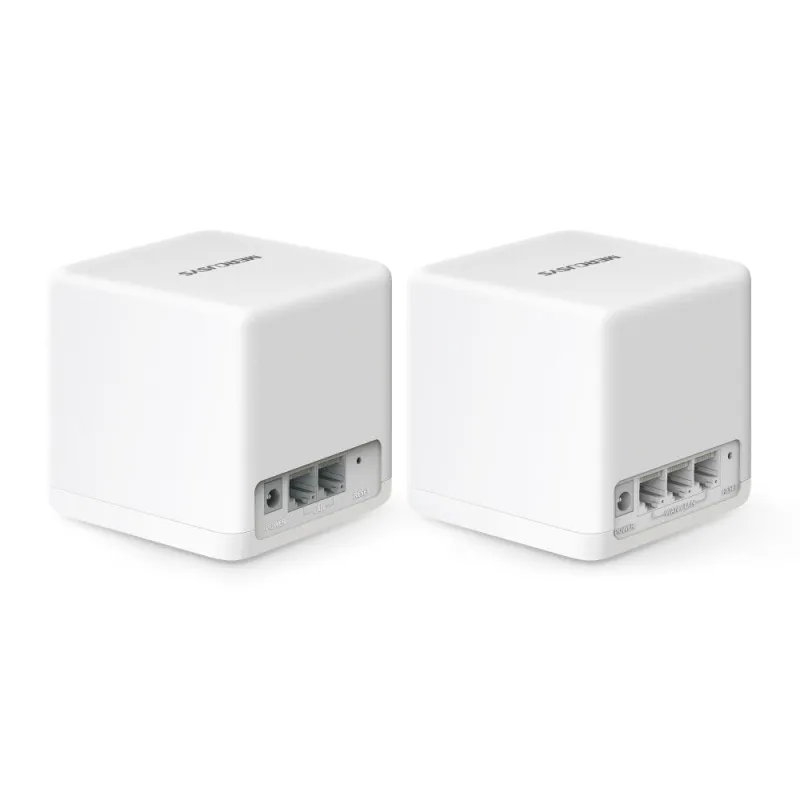

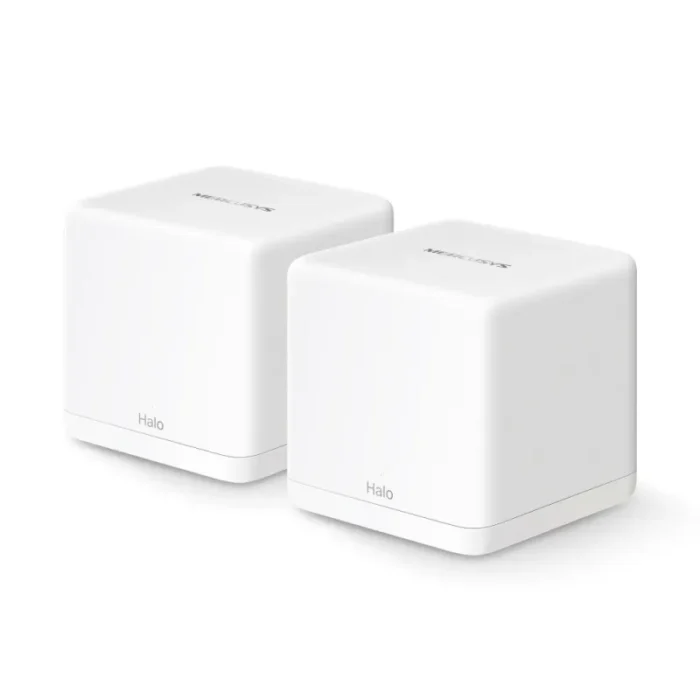

Mercusys AX1500 Whole Home Mesh WiFi 6 System
- Dual Band WiFi 6 Speeds up to 1500 Mbps – 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
- Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password
- Whole Home Coverage – Blanket up to 4,000 ft² (350 m²) with high-speed WiFi, eliminating WiFi dead zones at your home
- Connect over 100 Devices – Provide fast and stable connections over 100 devices
- Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents
- Full Gigabit Ports – Gigabit ports for lightning-fast wired connections
Fill Your Home with Fast Mesh WiFi
AX1500 Whole Home Mesh WiFi System
Dual Band WiFi 6 Speeds up to 1500 Mbps
Armed with WiFi 6, Halo H60X improves virtually every aspect of your network: speed, efficiency, and capacity.
A Whole Home WiFi Solution
Nothing’s worse than unreliable connections and internet speeds unable to keep up with your digital lifestyle. Halo works as a unified system to guarantee a strong WiFi signal in every corner of your home, providing an incredibly fast and stable network experience. Interruption and buffering will be a thing of the past.
True Seamless Roaming with One Unified Network
The Halo system automatically connects your phones or tablets to the fastest node, delivering a truly seamless network experience. No more sudden signal drops or lagging WiFi when you’re walking around the house.
Powerful Signal Amplifiers
Refined signal amplifiers and receivers cast strong, stable WiFi signals.
Beamforming
Supports Beamforming technology to concentrate wireless signal strength towards devices.
Self-Healing
Auto-chooses the best connection route between Halos according to the stability of the network.
MERCUSYS App Helps You Set Up in a Few Steps
Without any technical know-how or reading complicated instructions, simply follow the in-app instructions. Set up your mesh network in minutes.
Powerful Parental Controls
Easily manage your kids’ online time and content to create a safe and healthy online environment.
Improved Capacity
Enhanced by WiFi 6’s OFDMA and MU-MIMO technology, Halo H60X lets you connect over 100 devices at once. Enjoy a more efficient network that loads faster without dragging down performance.
Full Gigabit Ports + WAN/LAN Auto-Sensing
Thanks to WAN/LAN Auto-Sensing, there’s no need to distinguish between WAN/LAN ports. This reduces time and effort, so you can get straight to enjoying Halo H60X’s lightning-fast data transfer to wired devices. With full gigabit ports, your devices will clock 10× faster than standard Ethernet connections.
Easily Extend Your Coverage
The Halo Whole Home WiFi kit includes multiple units to fit any house type. If that’s not enough, you can expand Mesh WiFi coverage anytime by simply adding more Halos.
| Design | |
|---|---|
| Reset button | Yes |
| Maximum coverage | 350 m² |
| Antenna type | Internal |
| LED indicators | Yes |
| Product type | Mesh system |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| Guest access | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (max) | 1500 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
|---|---|
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Parental control | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| BeamForming | Yes |
| Firewall security | SPI Firewall |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 88 mm |
| Depth | 88 mm |
| Width | 88 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Ethernet cable | Yes |
| Number of units included | 2 pc(s) |
| AC adapter included | Yes |
