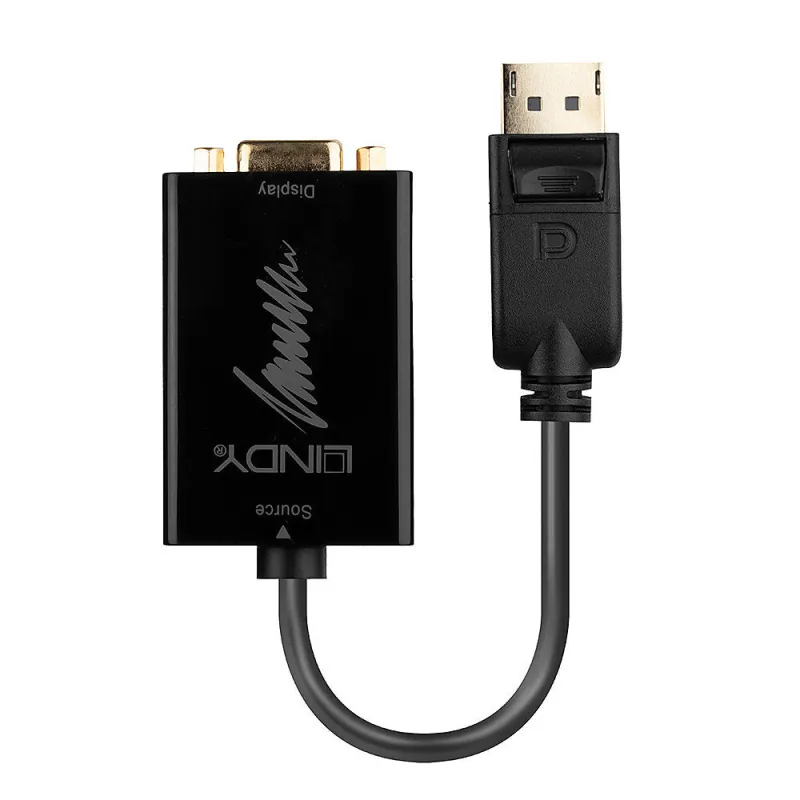

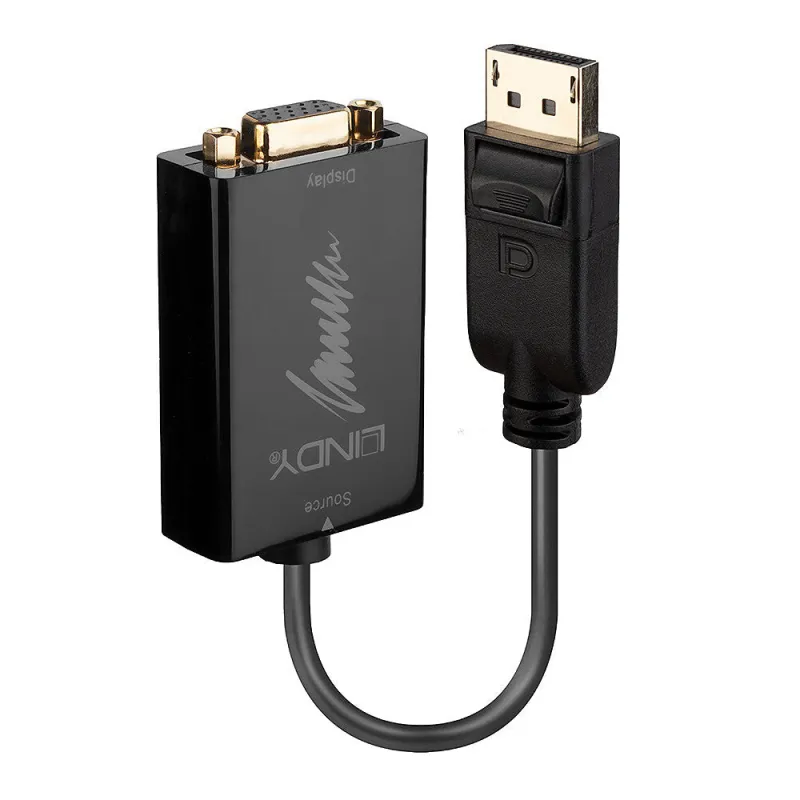

Lindy DisplayPort 1.2 to VGA Active Converter
- Converts a DisplayPort signal into VGAandnbsp;
- Supports resolutions up to 1920×1080@60Hz
- Add a VGA monitor as a secondary display
- Quick and simple Plug and Play installation
- 2 year warranty

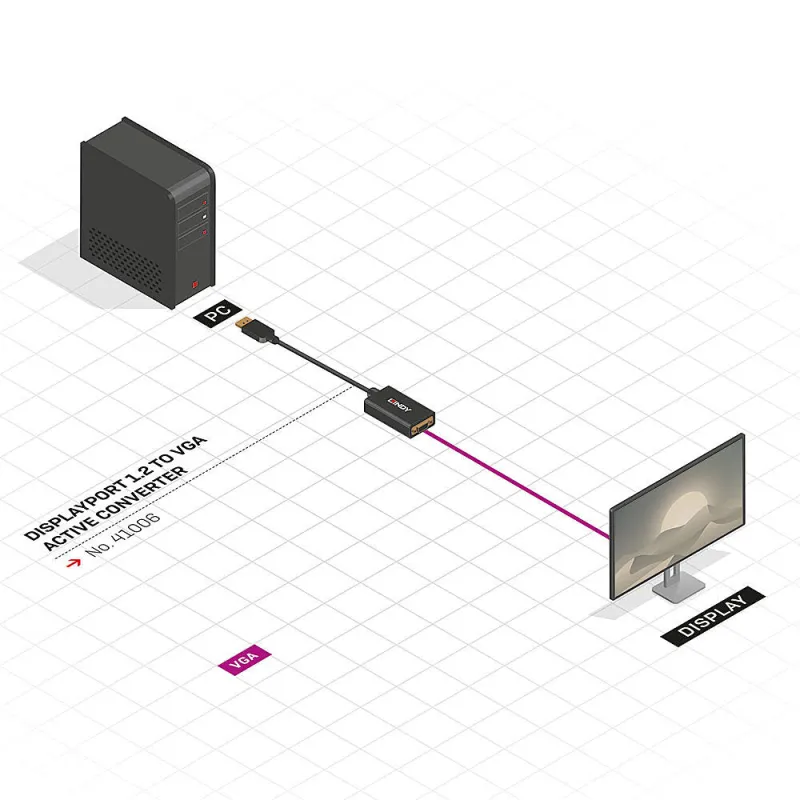

The Lindy DisplayPort 1.2 to VGA Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a VGA monitor. It supports high definition video resolutions up to 1920×1080@60Hz. Active conversion ensures compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage.
The converter can also be used to add another display to extend the available desktop workspace and increase productivity. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug and Play installation.
| Features | |
|---|---|
| Plug and Play | Yes |
| Connector housing material | Thermoplastic elastomer (TPE) |
| Jacket material | Polyvinyl chloride (PVC) |
| Chipset | ANX9833 |
| Product colour | Black |
| Bend radius (min) | 7 cm |
| Maximum refresh rate | 60 Hz |
| Data transfer rate | 10.8 Gbit/s |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum resolution | 1920 x 1080 pixels |
| DisplayPort version | 1.2 |
| Connector contacts plating | Gold |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | VGA (D-Sub) |
| Cable length | 0.15 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 90% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | -20 – 80 °C |
| Certificates | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Weight & dimensions | |
|---|---|
| Weight | 45 g |
| Connector 2 dimensions (WxDxH) | 20 x 36 x 11 mm |
| Connector 1 dimensions (WxDxH) | 38 x 61 x 17 mm |
| Cable diameter | 6.5 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Package weight | 49 g |
| Package height | 160 mm |
| Package depth | 20 mm |
| Package width | 160 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
