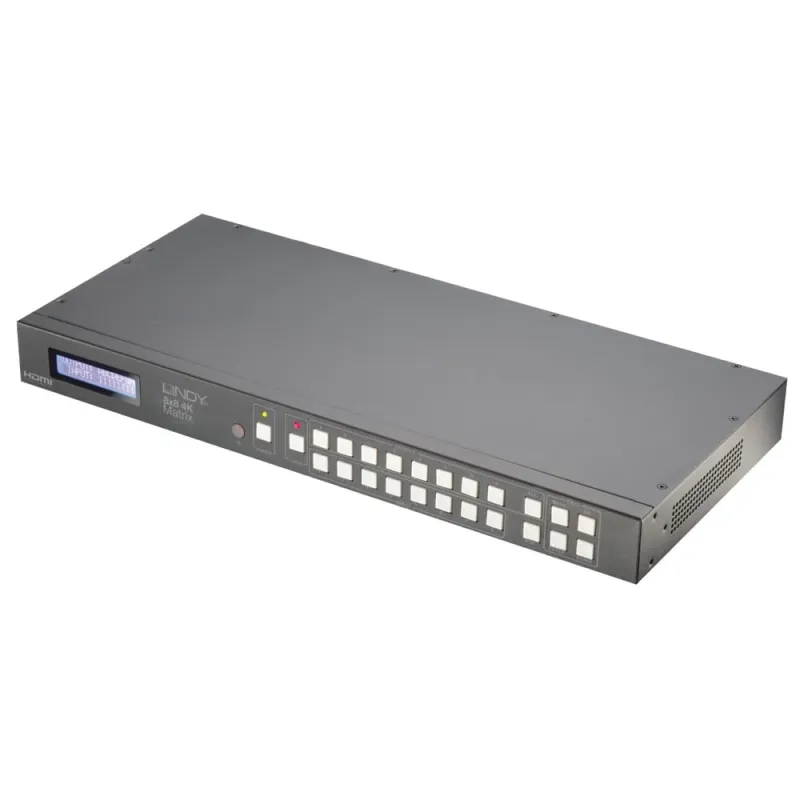

Lindy 8×8 HDMI 10.2G Matrix Switch
- Video port type: HDMI
- Black
- 1 pc(s)
This very flexible Matrix HDMI Switching Splitter offers maximum convenience when connecting multiple HDMI sources and displays together. It features 8 HDMI input source ports and 8 HDMI output display ports. Each of the 8 sources can be directed to any of the 8 displays using the supplied remote control. It’s an ideal solution for multiple HDMI distribution in retail product demonstration, training and public display applications in schools, pubs etc.
Note on using DVI equipped devices with the HDMI 8×8 Matrix Switch
To connect devices equipped with DVI connections, you can use either modular DVI/HDMI adapters or DVI/HDMI adapter cables. Be aware that DVI is a “video only” interface – no audio signals will be switched by the HDMI Matrix when using DVI devices!
Package Contents:
– 8×8 4K60 HDMI Matrix

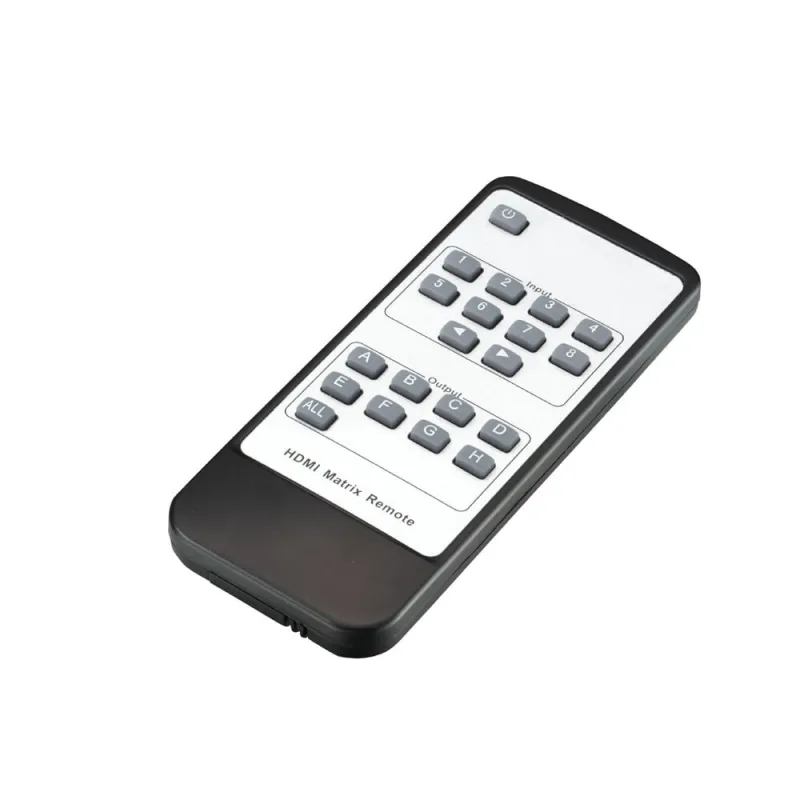

– IR Remote Control (inc battery)
– 12V Multi Country PSU
– RS232 Cable 1.3m
– Mounting brackets & screws
– LINDY User manual

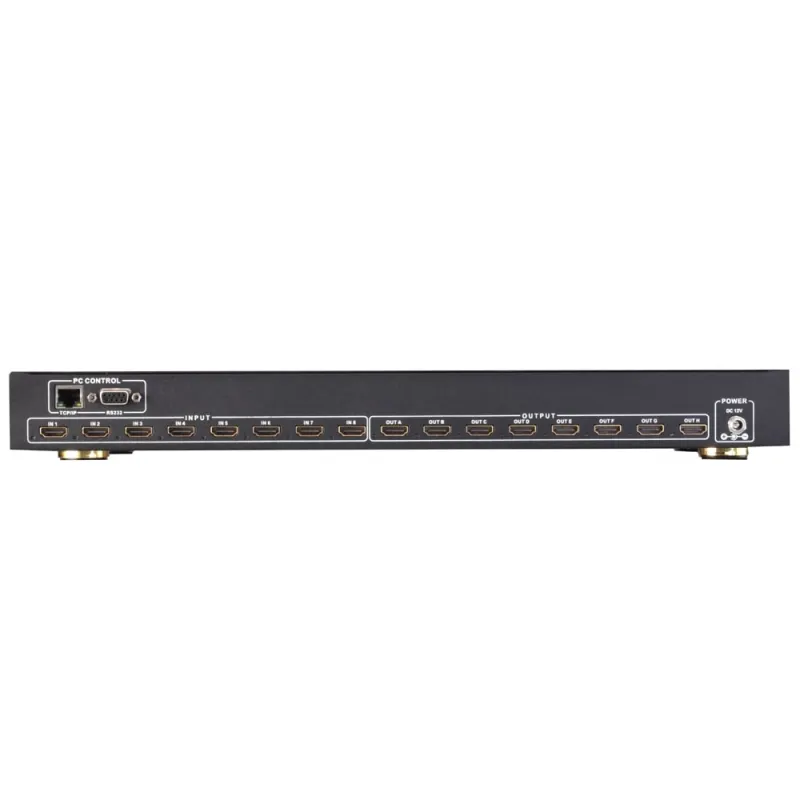

| Ports & interfaces |
| Video in |
8 |
| Video out |
8 |
| RS-232 ports |
1 |
| RJ-45 input ports |
1 |
| Number of HDMI outputs |
8 |
| HDMI ports quantity |
16 |
| Video port type |
HDMI |
| Features |
| HD type |
4K Ultra HD |
| External power adapter |
Yes |
| Remote control type |
IR, RS-232 |
| Colour depth |
48 bit |
| 3D |
Yes |
| HDCP |
Yes |
| LED indicators |
Yes |
| Dolby technologies |
DTS-HD Master Audio, Dolby Digital Plus, Dolby TrueHD |
| Rack capacity |
1U |
| Digital horizontal frequency |
30 – 60 kHz |
| Product colour |
Black |
| Material |
Metal |
| Power |
| Power consumption (typical) |
23 W |
| AC adapter output current |
2.5 A |
| AC adapter output voltage |
12 V |
| Certificates |
| Certification |
CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Weight & dimensions |
| Width |
440 mm |
| Packaging content |
| Remote control included |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
20 – 90% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
