Lindy 500m Fibre Optic DVI-D Single Link Extender
- Extends DVI-D signals at distances of up to 500m using dual fibre optic cables (not included)
- Compatible with DVI-D 2.0 specifications including HDTV and HD-Ready displays
- Supports HDTV resolutions up to 1920 x 1200 @ 60Hz / 1080p @ 60 Hz
- 6Gbps Total Bandwidth over Dual Duplex or 4x LC Simplex Fibre Optic Cables
- 2 year warranty
Easy to set up and install the compact Lindy LC Fibre Optic DVI-D Extender is the most cost effective, high quality solution on the market for sending DVI-D signals over incredible distances. Send DVI-D signals without compression or any degradation over standard LC duplex multimode (50/125µm) fibre cable up to 500m (not included).

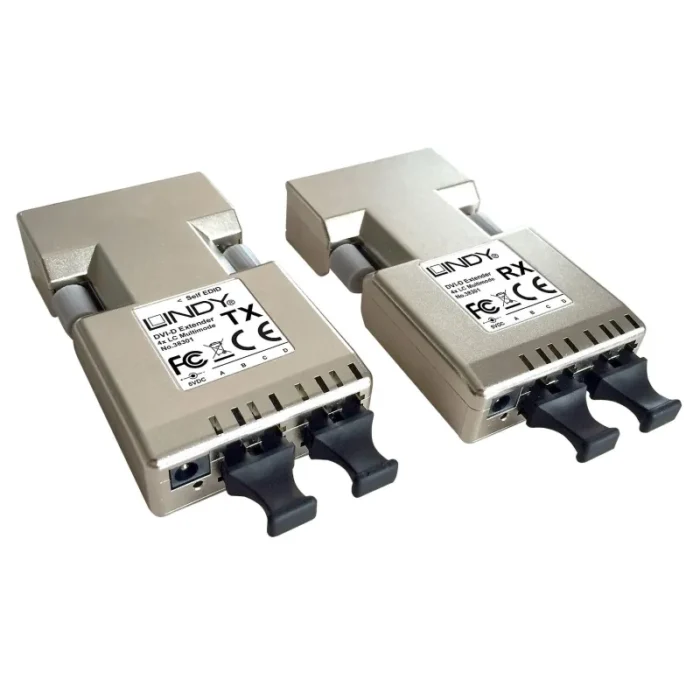

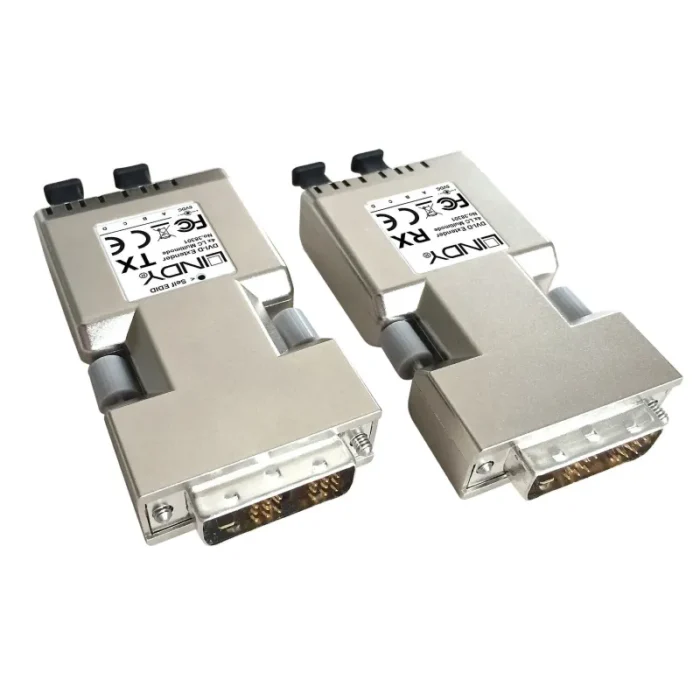

The extender system comprises two modules, a transmitter and a receiver, which are connected directly to both the DVI-D source and display. The modules are then connected together using two, standard ‘off the shelf’ LC Duplex Fibre cable fibre optic cables (not included).
| Features | |
|---|---|
| Product colour | Metallic |
| HDCP | Yes |
| Material | Metal |
| Maximum transfer distance | 500 m |
| Cable types supported | Fiber |
| Maximum resolution | 1920 x 1200 pixels |
| Type | AV transmitter & receiver |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| DVI input ports | 1 |
| DVI output ports | 1 |
| Weight & dimensions | |
|---|---|
| Transmitter weight | 10 g |
| Transmitter dimensions (WxDxH) | 40 x 70 x 15 mm |
| Receiver weight | 10 g |
| Receiver dimensions (WxDxH) | 40 x 70 x 15 mm |
| Dimensions (WxDxH) | 40 x 70 x 15 mm |
| Packaging content | |
|---|---|
| Cables included | Fiber |
| Technical details | |
|---|---|
| Connector 1 | LC |
| Connector 2 | LC |
