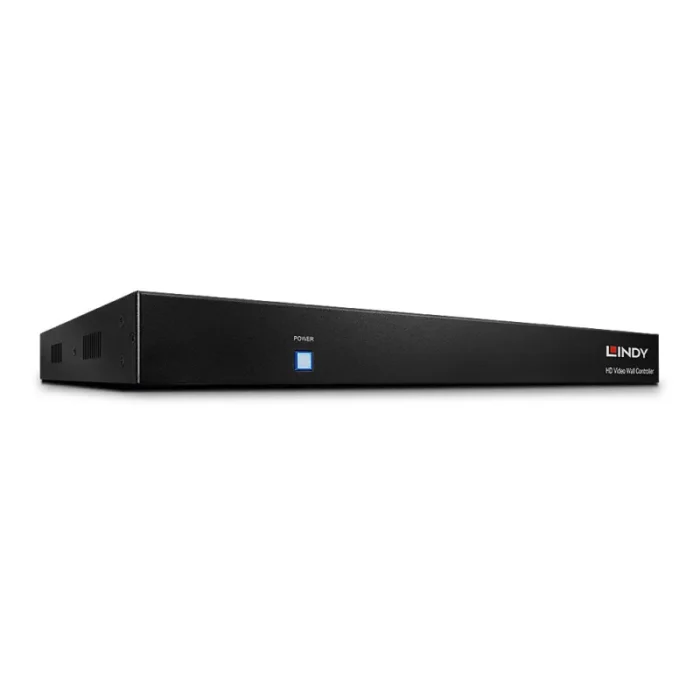

Lindy 4 Port HDMI Video Wall Scaler

• Scale a single HDMI input across 4 displays (2×2, 4×1, 1×4)
• Larger video walls (up to 15×15) can be created by cascading additional Scalers
• Bezel correction and picture adjustment
• Supports Input/Output resolutions up to 1080p

Scale a single HDMI input across 4 displays (2×2, 4×1, 1×4)
Larger video walls (up to 15×15) can be created by cascading additional Scalers
Bezel correction and picture adjustment
Supports Input/Output resolutions up to 1080p
2 year warranty

The HDMI Video Wall Controller Scaler allows an HDMI input source to be freely arranged on 4 displays (TV or monitor) and or cascaded (via Output D) using multiple units to extend the HDMI signal to even larger arrays. Each output can be adjusted for bezel correction, contrast, brightness, saturation and hue so that you can optimse the appearance of your video wall.

This flexible feature rich product has been designed to be used in a number of different applications, such as:

Public/Retail Advertisement

Digital Presentation

Broadcasting & Control

Surveillance & Control

Conference & Meeting Room

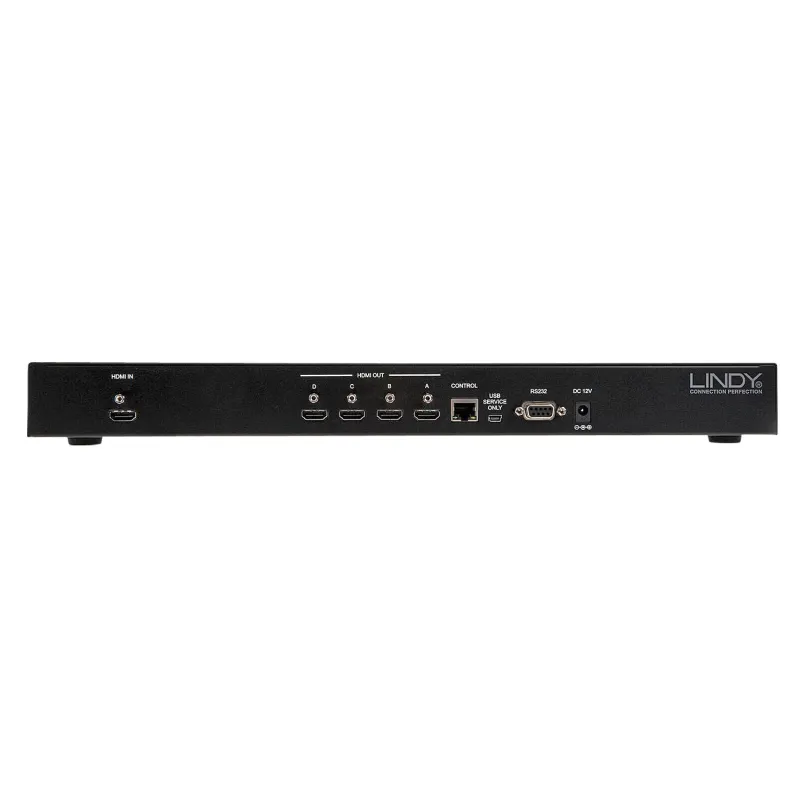

The Scaler, or multiple Scalers in larger installations, can be controlled by a simple control application (see downloads) or via RS-232 and Telnet using the commands listed in the user manual, making it simple to integrate within your installation.
