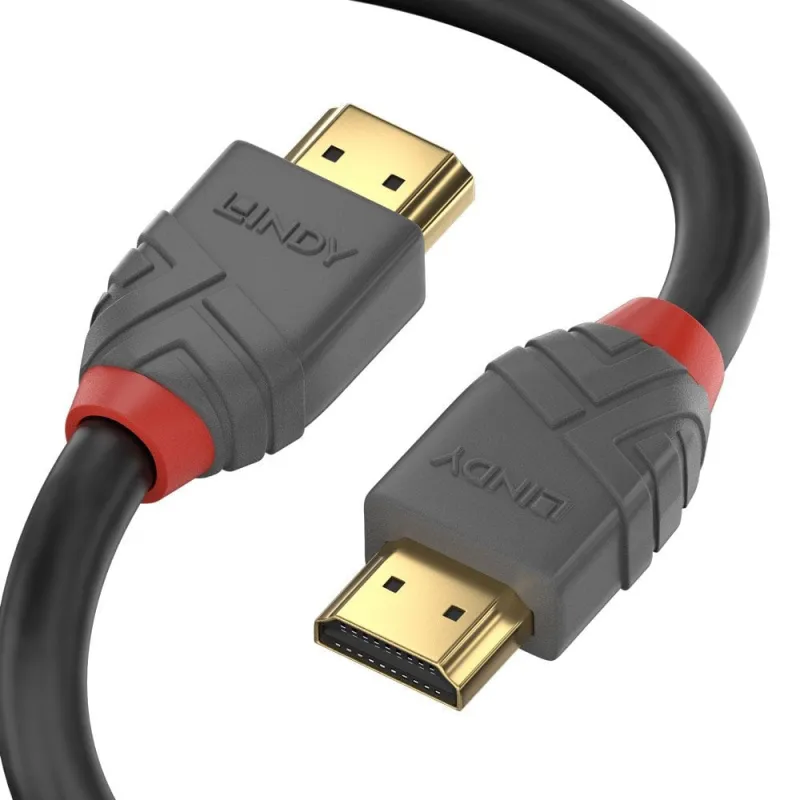

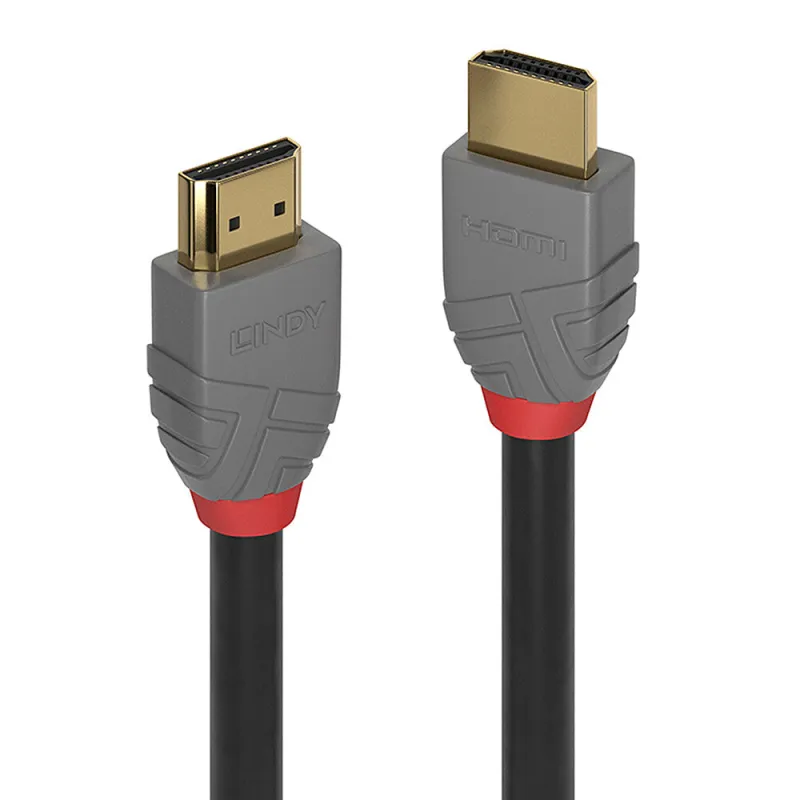

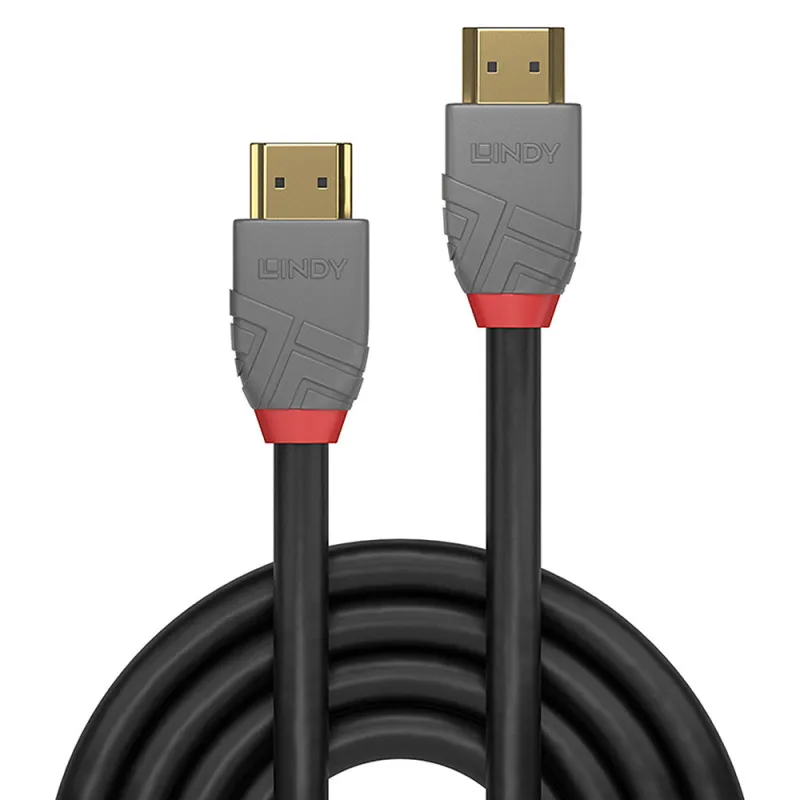

Lindy 2m High Speed HDMI Cable, Anthra Line
- Professional choice High Speed HDMI 2.0 cable for commercial and high performance AV and IT installations
- Supports UHD resolutions up to 4096×2160@60Hz and HDTV resolutions up to 1080p
- Robust PVC housing, 24K gold plated connectors and contactsandnbsp;
- Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
- HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; HDMI ATC certified; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.
Anthra Line HDMI cables are available in lengths from 0.3m to 5m.
| Features | |
|---|---|
| Nominal attenuation | 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
| Colour sampling | 4:4:4 |
| Bending radius (min) | 4.8 cm |
| Shield material | Copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Cable material | Copper |
| Connector housing material | Polyvinyl chloride (PVC) |
| Connector material | Gold |
| Connector contacts plating | Gold |
| Contact material | Phosphor copper |
| AWG wire size | 30 |
| Maximum resolution | 4096 x 2160 pixels |
| Data transfer rate | 18 Gbit/s |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Supported video modes | 1080p |
| Supported graphics resolutions | 4096 x 2160 |
| 3D | Yes |
| HDMI version | 2.0 |
| Product colour | Black, Grey |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 | HDMI Type A (Standard) |
| Cable length | 2 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 – 80 °C |
| Operating temperature (T-T) | -10 – 80 °C |
| Certificates | |
|---|---|
| Certification | RoHS, REACH, UL, ATC |
| Weight & dimensions | |
|---|---|
| Connector 2 dimensions (WxDxH) | 20 x 34.2 x 10.9 mm |
| Connector 1 dimensions (WxDxH) | 20 x 34.2 x 10.9 mm |
| Cable diameter | 6 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
