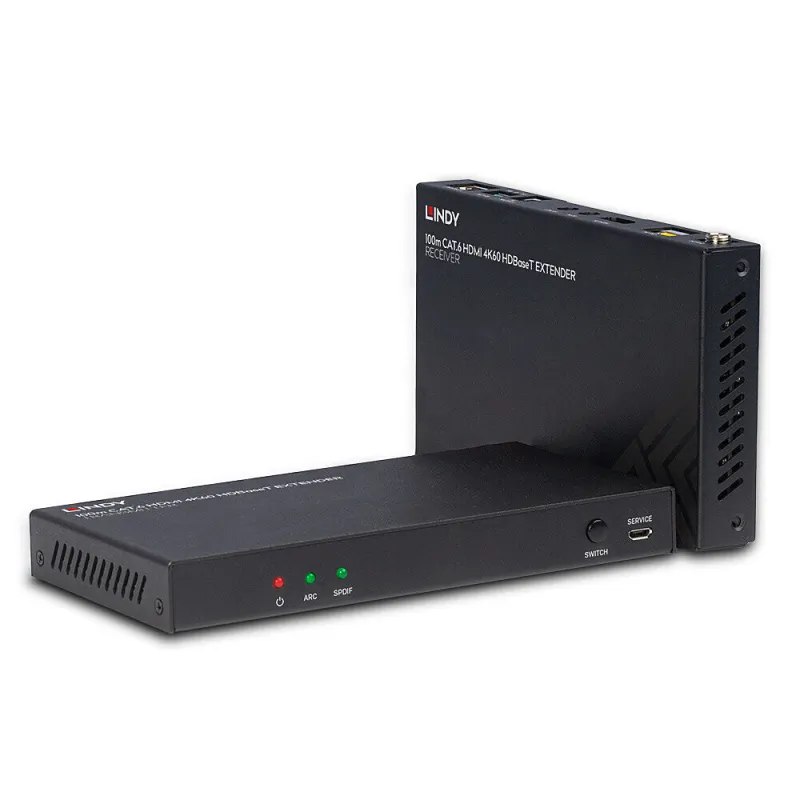

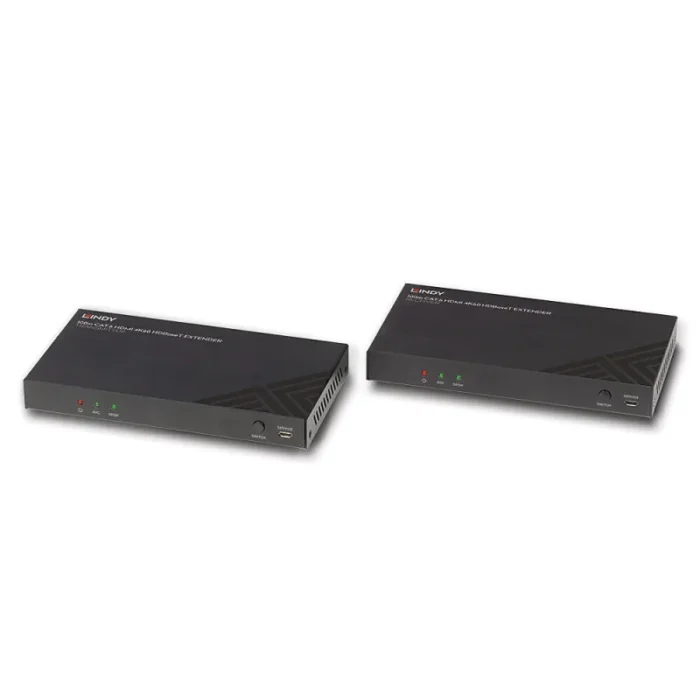

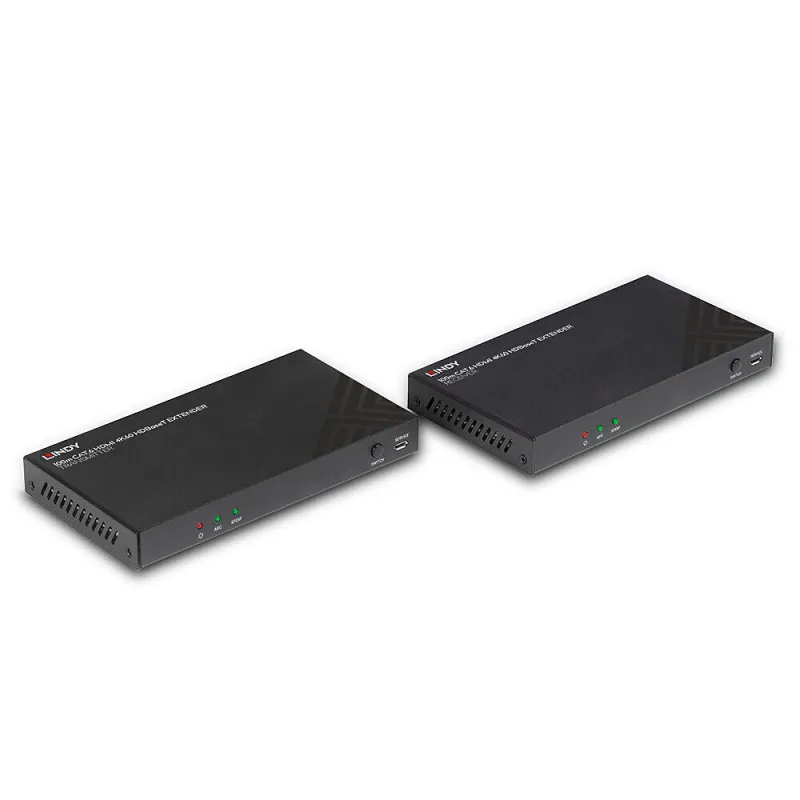

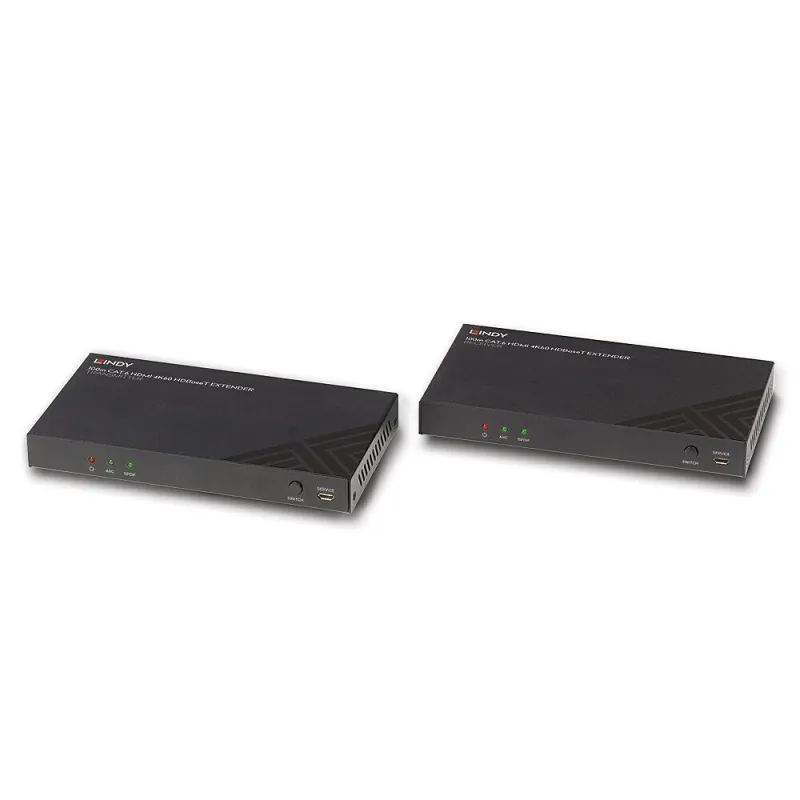

Lindy 100m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender

£303.99 Original price was: £303.99.£101.25Current price is: £101.25.

Compare
Add to wishlist
SKU: US-14992828301694 Category: KVM Extenders
Share:
  • Description
  • Shipping & Delivery
Description

Lindy 100m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender

  • Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology
  • Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
  • ARC Support as well as RS-232, CEC and Ethernet pass-through and bi-directional IR for simple control
  • Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
  • 2 year warranty

The Lindy 100m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.

The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:100m: 1920×1080@60Hz 4:4:4 8bit70m: 3840×2160@60Hz 4:4:4 8bit / 4:2:2 12bit

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the push button on the main unit.

PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.

Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. Bi-directional RS-232 and Ethernet ports also allow for integration into larger control systems, or connection to network switches and hubs with LAN access.

In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.able. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.

Please Note: This product uses the DSC method of compression to achieve 18G resolutions. If using another 18G HDBaseT product combined with this, please ensure both products support the same compression type.

Features
Certification CE, UKCA, FCC, RoHS, REACH
Material Metal
Product colour Black
Maximum refresh rate 60 Hz
Maximum digital resolution 3840 x 2160 pixels
Cable types supported Cat6
Maximum transfer distance 100 m
Connectivity technology Wired
Type Transmitter & receiver
Transmitter
RJ-45 ports quantity (transmitter) 1
Transmitter video port type HDMI
Receiver
RJ-45 ports quantity (receiver) 1
Receiver local video port type HDMI
Ports & interfaces
USB 2.0 ports quantity 2
USB port type USB Type-A
Power
AC adapter output current 1 A
AC adapter output voltage 24 V
Weight & dimensions
Receiver height 1.6 cm
Receiver depth 9 cm
Receiver width 16.3 cm
Transmitter height 1.6 cm
Transmitter depth 9 cm
Transmitter width 16.3 cm
Packaging data
Package weight 1.28 kg
Package height 210 mm
Package depth 70 mm
Package width 265 mm
Packaging content
Manual Yes
Operational conditions
Operating relative humidity (H-H) 20 – 90%
Storage temperature (T-T) -20 – 60 °C
Operating temperature (T-T) 0 – 40 °C
Technical details
Weight 770 g
Logistics data
Harmonized System (HS) code 84733080
