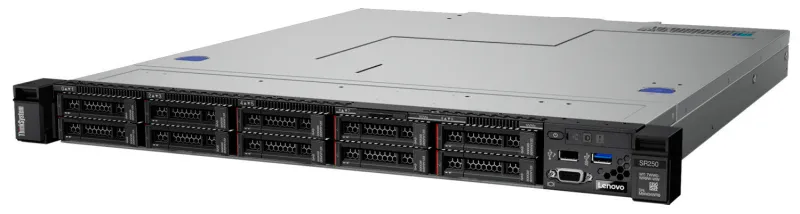

Lenovo ThinkSystem SR250 server 0 GB Rack (1U) Intel Xeon E E-2224 3.4 GHz 8 GB DDR4-SDRAM 450 W
- Intel Xeon E E-2224 3.4 GHz
- 8 GB 2666 MHz DDR4-SDRAM
- Rack (1U) 450 W
Affordable, efficient enterprise power in 1U
The ThinkSystem SR250 is a single-socket compact 1U rack server that offers the power, reliability, and flexibility for the hybrid cloud.
Powerful and secure
The Lenovo ThinkSystem SR250 is a single-processor rack server that integrates power, reliability, flexibility, and security in a compact 1U form factor suited for the small-to-medium business or edge deployment.
Featuring a high price-performance ratio courtesy of the next-generation Intel® Xeon® E-2200 CPU, the ThinkSystem SR250 boasts multiple configurations that provides the flexibility to handle workloads including web serving, virtualization, entry-cloud and data-analytics applications.
Flexible and scalable
The ThinkSystem SR250 adapts to multiple environments and workloads in which a shorter-depth rack accommodates space-constrained environments. Lightning-fast TruDDR4 memory, GPU support, and an array of storage options, including low-latency NVMe drives, afford serious storage and workload flexibility.
Simple management
The ThinkSystem SR250 features the Lenovo XClarity Controller, the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks.
The XClarity Administrator virtualized application centrally manages your ThinkSystem servers, storage, and networking; offering streamlined IT management to contain administrative costs and speed infrastructure provisioning.
| Processor | |
|---|---|
| Intelligent Platform Management Interface (IPMI) support | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Embedded options available | No |
| Maximum number of SMP processors | 1 |
| Number of processors installed | 1 |
| Motherboard chipset | Intel C246 |
| Processor cache | 8 MB |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 3.4 GHz |
| Processor model | E-2224 |
| Processor family | Intel Xeon E |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 128 GB |
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Internal drive bays | 4 |
| Optical drive type | No |
| Number of SSDs supported | 4 |
| Supported SSD sizes | 3.5″ |
| SSD interface | SATA III |
| Supported HDD sizes | 3.5″ |
| Number of HDDs supported | 4 |
| HDD interface | SATA III |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 72 TB |
| Graphics | |
|---|---|
| Maximum graphics card memory | 16 MB |
| On-board graphics card model | Matrox G200 |
| On-board graphics card | Yes |
| Network | |
|---|---|
| LAN controller | Broadcom BCM5720 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Expansion slots | |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Rack rails | Yes |
| Product colour | Black, Stainless steel |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Performance management | Lenovo XClarity |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 Xen SP5, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 Xen SP1, SUSE Linux Enterprise Server 15 Xen SP2, SUSE Linux Enterprise Server 15 Xen SP3, VMware ESXi 6.5 U3, VMware ESXi 6.7 U3, VMware ESXi 7.0, VMware ESXi 7.0 U1, VMware ESXi 7.0 U2 |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel Clear Video Technology | No |
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Number of redundant power supplies supported | 2 |
| Power supply | 450 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ThinkSystem |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Weight & dimensions | |
|---|---|
| Weight | 9.1 kg |
| Depth | 545 mm |
| Height | 43 mm |
| Width | 435 mm |
