Lenovo ThinkSystem SE350 server 480 GB Rack (1U) Intel® Xeon® D D-2143IT 2.2 GHz 32 GB DDR4-SDRAM
- Intel Xeon D-2143IT (11MB Cache, 2.2GHz)
- 32GB (2666MHz) DDR4-SDRAM (1 x 32) & 480GB SSD

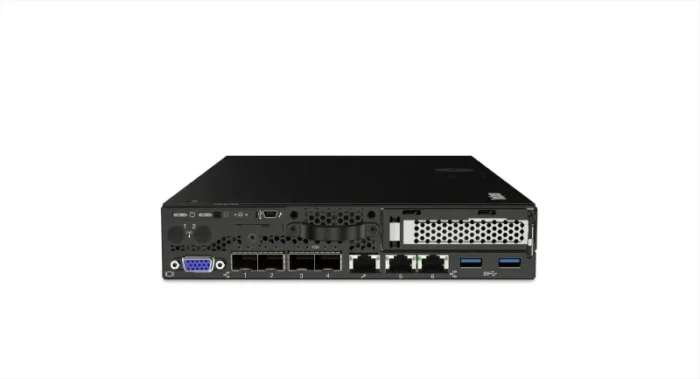

The ThinkSystem SE350 is a purpose-built server that is half the width and significantly shorter than a traditional server, making it ideal for deployment in tight spaces. It can be mounted on a wall, stacked on a shelf or mounted in a rack. The ThinkSystem SE350 puts increased processing power, storage and network closer to where data is generated, allowing actions resulting from the analysis of that data to take place more quickly.
This product guide provides essential pre-sales information to understand the ThinkSystem SE350 edge server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SE350 and consider its use in IT solutions.
Introduction
The ThinkSystem SE350 is a purpose-built server that is half the width and significantly shorter than a traditional server, making it ideal for deployment in tight spaces. It can be mounted on a wall, stacked on a shelf or mounted in a rack. The ThinkSystem SE350 puts increased processing power, storage and network closer to where data is generated, allowing actions resulting from the analysis of that data to take place more quickly.
Suggested uses: edge computing (IoT, AI, machine learning), retail, video security, inventory management, building control, telecommunications, manufacturing, distribution
Did you know?
Customers looking for computing solutions at the edge of their networks often have to compromise — to use either datacenter-class equipment which is too large and power hungry, or PC based equipment which can’t run their enterprise level applications. The ThinkSystem SE350 fits the space between those two extremes. Its compact design, low power usage, and high performance are just the right combination for edge locations. The SE350 can be wall mounted, stacked on a shelf or installed in a rack. It is also designed to operate in rugged environments, up to 55°C.
| Processor | |
|---|---|
| Conflict-Free processor | Yes |
| Stepping | M1 |
| Thermal Monitoring Technologies | Yes |
| Processor code | SR3ZU |
| Maximum internal memory supported by processor | 512 GB |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor socket | BGA 2518 |
| Processor lithography | 14 nm |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor codename | Skylake |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133 MHz |
| Maximum number of PCI Express lanes | 32 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 1S |
| Embedded options available | Yes |
| Bus type | UPI |
| Thermal Design Power (TDP) | 65 W |
| Number of processors installed | 1 |
| Processor cache | 11 MB |
| Processor cores | 8 |
| Processor boost frequency | 3 GHz |
| Processor frequency | 2.2 GHz |
| Processor model | D-2143IT |
| Processor family | Intel® Xeon® D |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 256 GB |
| Memory slots | 4 |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| SSD interface | SATA |
| SSD capacity | 480 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 480 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Matrox G200 |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Product colour | Black |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Performance management | XClarity Enterprise |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel QuickAssist Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 136431 |
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Number of redundant power supplies installed | 2 |
| Redundant power supply (RPS) support | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 8 – 90% |
| Storage temperature (T-T) | -40 – 60 °C |
| Operating temperature (T-T) | 5 – 45 °C |
| General | |
|---|---|
| Product family | ThinkSystem |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Weight & dimensions | |
|---|---|
| Weight | 3.75 kg |
| Depth | 376 mm |
| Height | 43 mm |
| Width | 209 mm |
