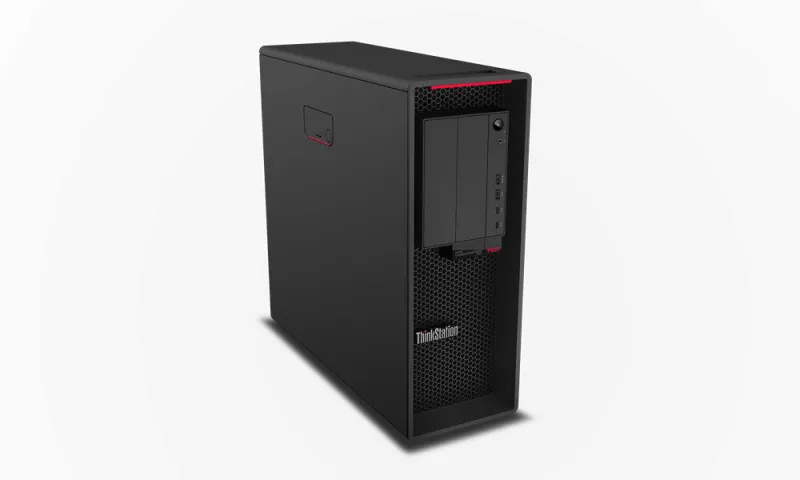

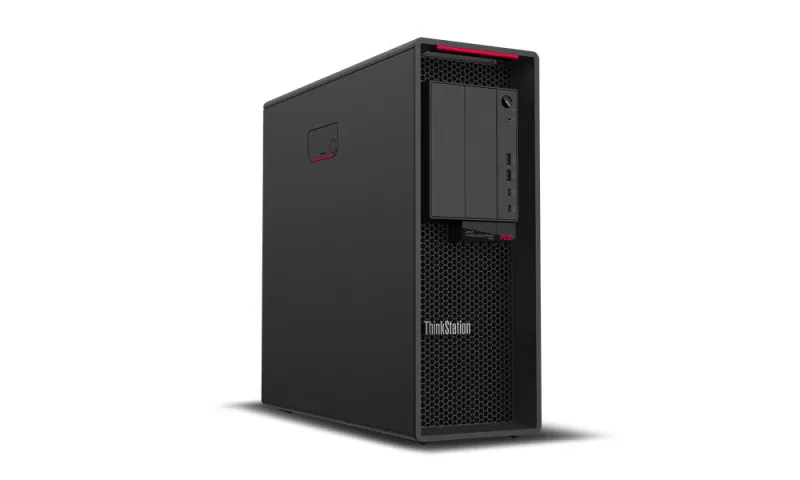

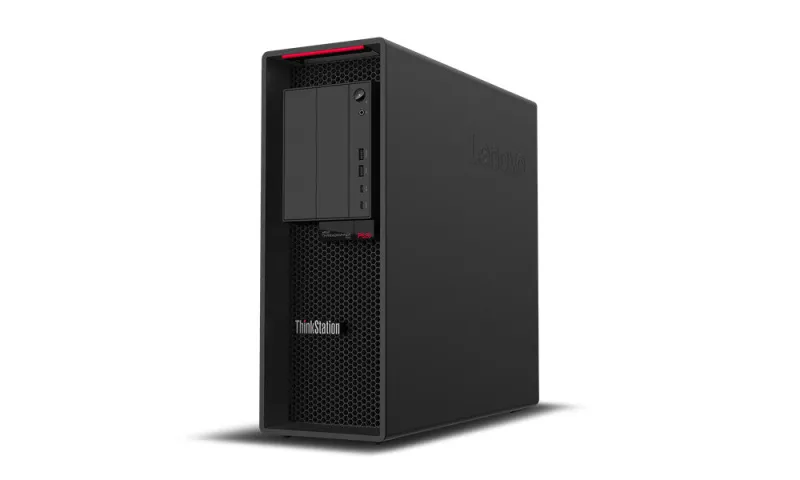

Lenovo ThinkStation P620 AMD Ryzen Threadripper PRO 5955WX 64 GB DDR4-SDRAM 1 TB SSD Windows 11 Pro Tower Workstation Black
- AMD Ryzen Threadripper PRO 5955WX (16C/32T, 4.0/4.5GHz, 8MB L2/64MB L3)
- 4x 16GB RDIMM DDR4-3200 ECC
- 1x 1TB SSD M.2 2280 PCIe 4.0 NVMe Opal
- Windows 11 Pro 64
Game-changing power. Limitless possibilities.
– Powered by AMD Ryzen™ Threadripper™ PRO
– Supports choice of Windows and Linux operating systems
– 2 NVIDIA® RTX™ A6000 graphic cards
– Combines legendary reliability & innovation with professional manageability and enterprise-class support
– Performance-tuned and ISV-certified for multithreaded application environments
– Best in class air-cooled thermal system
– Built-in suite of security solutions
– Perfect for architects, engineers, scientists, geophysicists, and more
| Processor |
| Number of processors installed |
1 |
| Processor cache type |
L3 |
| Processor cache |
64 MB |
| Processor frequency |
4 GHz |
| Processor boost frequency |
4.5 GHz |
| Processor threads |
32 |
| Processor cores |
16 |
| Processor model |
5955WX |
| Processor generation |
AMD Ryzen Threadripper PRO 5000 WX-Series |
| Processor family |
AMD Ryzen Threadripper PRO |
| Processor manufacturer |
AMD |
| Memory |
| Memory channels |
Quad-channel |
| ECC |
Yes |
| Memory clock speed |
3200 MHz |
| Memory slots |
8x DIMM |
| Memory layout (slots x size) |
4 x 16 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
1.02 TB |
| Internal memory |
64 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Not available |
| Discrete graphics card model |
Not available |
| On-board graphics card |
No |
| Discrete graphics card |
No |
| Network |
| Bluetooth |
No |
| Wi-Fi |
No |
| LAN controller |
Marvell AQtion AQN-107 |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
100,1000,2500,10000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Line-in |
Yes |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| PS/2 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
6 |
| USB 2.0 ports quantity |
2 |
| Expansion slots |
| PCI Express x16 (Gen 4.x) slots |
4 |
| PCI Express x8 (Gen 4.x) slots |
2 |
| Design |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Number of 5.25″ bays |
1 |
| Number of 3.5″ bays |
2 |
| Placement supported |
Vertical |
| Volume |
33 L |
| Colour name |
Black |
| Chassis type |
Tower |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Password protection type |
Power on, Supervisor |
| Password protection |
Yes |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC4050H |
| Motherboard chipset |
AMD WRX80 |
| Product type |
Workstation |
| Software |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
| Power supply |
1000 W |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
10 – 35 °C |
| Certificates |
| Certification |
EPEAT SilverENERGY STAR 8.0 (on model 30E00006US)GREENGUARDRoHS compliant |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, EPEAT Silver, GREENGUARD |
| Weight & dimensions |
| Weight |
24 kg |
| Height |
446 mm |
| Depth |
455 mm |
| Width |
165 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| General |
| Product family |
ThinkStation |
| Product series |
P |
