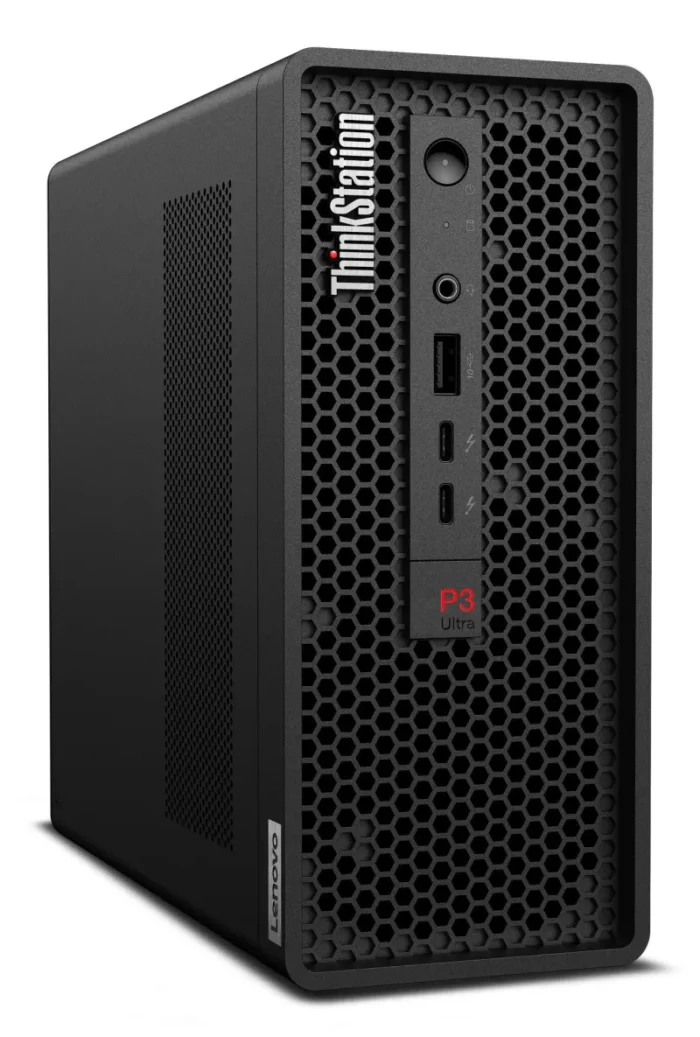

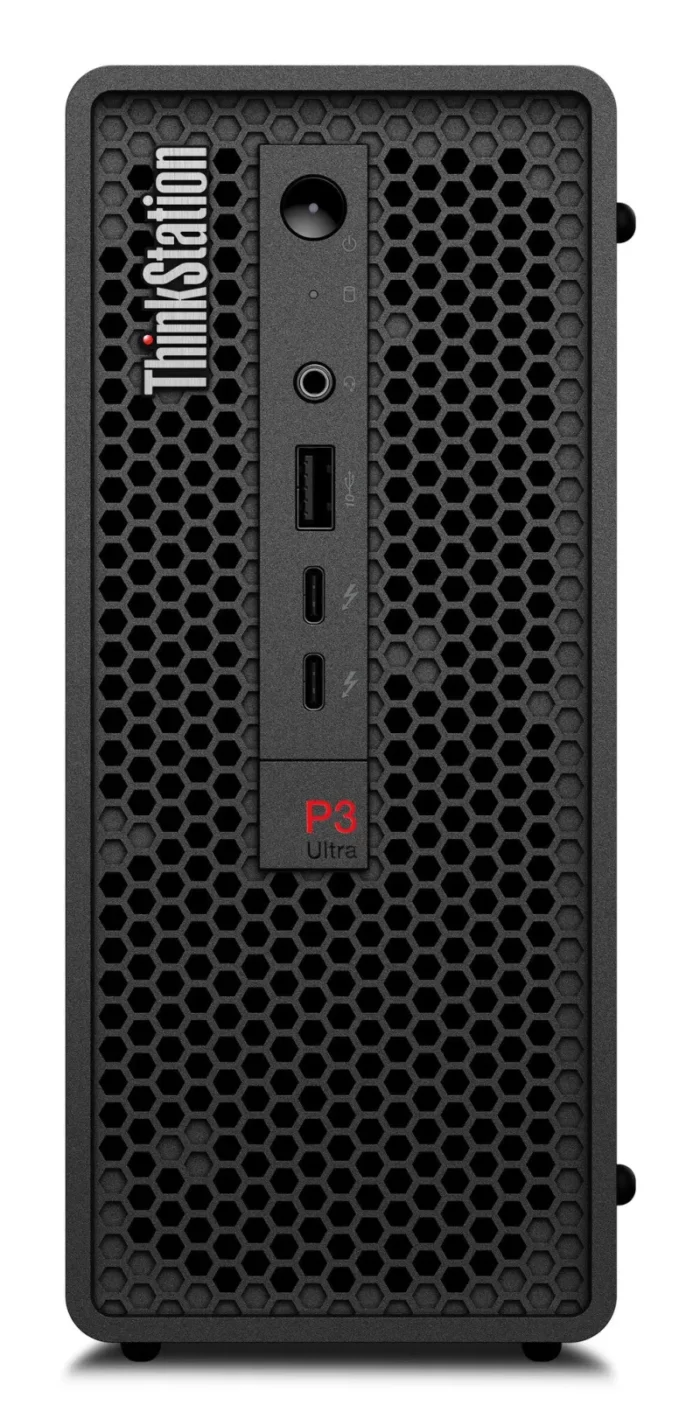

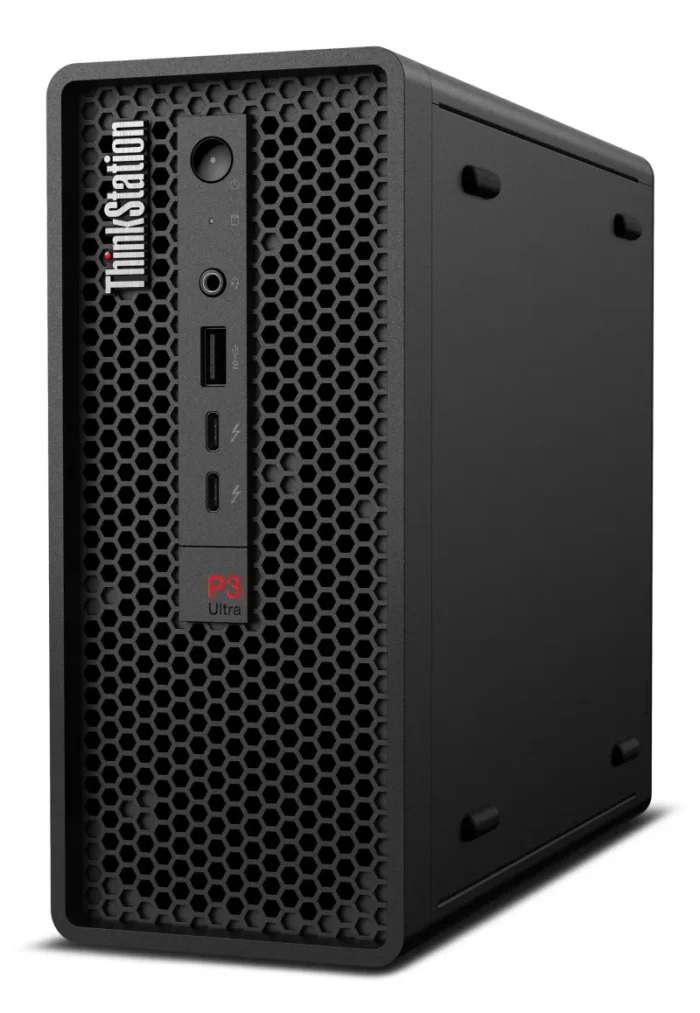

Lenovo ThinkStation P3 Ultra Intel® Core™ i7 i7-13700 16 GB DDR5-SDRAM 512 GB SSD NVIDIA T1000 Windows 11 Pro Tower Workstation Black
- Intel Core i7-13700, 16C (8P + 8E)/24T, Max Turbo up to 5.2GHz, P-core 2.1/5.1GHz, E-core 1.5/4.1GHz, 30MB
- 2x 8GB SO-DIMM DDR5-4800 Non-ECC
- 1x 512GB SSD M.2 2280 PCIe 4.0×4 Performance NVMe Opal
- Intel UHD Graphics 770
- 1x NVIDIA T1000 8GB
- Windows 11 Pro
Redefining the power of small
– Packs amazing power into an industry-first 3.9L chassis
– Blazingly-fast 13th Gen Intel® Core™ processors, vast memory
– Choice of optional professional discrete graphics
– ISV-certified, handles complex workflows with ease
– Supports remote monitoring & system management
– Designed for compact spaces, suitable for any industry
| Processor |
| Processor model |
i7-13700 |
| Processor generation |
13th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Memory clock speed |
4800 MHz |
| Memory slots |
4x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
16 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Number of discrete graphics cards |
1 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA T1000 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
3 |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| Design |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Colour name |
Black |
| Chassis type |
Tower |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC897-Q |
| Motherboard chipset |
Intel W680 |
| Product type |
Workstation |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100 – 240 V |
| Power supply |
230 W |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
10 – 35 °C |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, TCO, EPEAT Gold |
| Weight & dimensions |
| Weight |
3.6 kg |
| Height |
202 mm |
| Depth |
223 mm |
| Width |
87 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
| General |
| Product family |
ThinkStation |
| Product series |
P |
