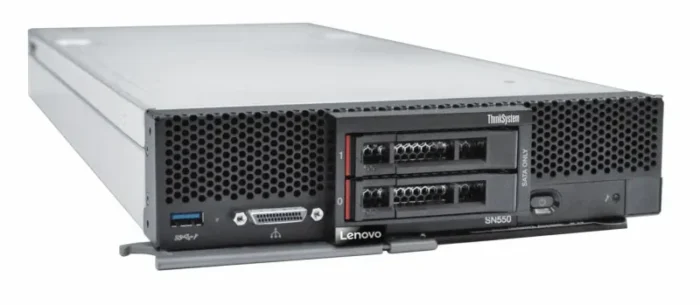

Lenovo ThinkServer SN550 server Intel Xeon Silver 4214 2.2 GHz 32 GB DDR4-SDRAM
- Intel Xeon Silver 4214 (16.5MB Cache, 2.2GHz)
- 32GB (2933MHz) DDR4-SDRAM (1 x 32)
The Lenovo ThinkSystem SN550 is a high-performance server that offers enhanced security, efficiency, and reliability features to handle business-critical workloads. The blade server now supports the second-generation Intel Xeon Processor Scalable Family of processors.
This product guide provides essential information to understand the SN550 offering, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SN550 compute node and consider its use in IT solutions.
| Processor |
| Execute Disable Bit |
Yes |
| Embedded options available |
Yes |
| Motherboard chipset |
Intel® C624 |
| Processor cache |
16.5 MB |
| Processor boost frequency |
3.2 GHz |
| Processor frequency |
2.2 GHz |
| Processor model |
4214 |
| Processor family |
Intel Xeon Silver |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
Yes |
| Memory clock speed |
2933 MHz |
| Memory layout (slots x size) |
1 x 32 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Optical drive type |
No |
| Hot-swap |
Yes |
| RAID levels |
0, 1 |
| RAID support |
Yes |
| Number of SSDs supported |
2 |
| Graphics |
| Maximum graphics card memory |
16 MB |
| On-board graphics card model |
Matrox G200 |
| On-board graphics card |
Yes |
| Network |
| Ethernet LAN |
Yes |
| Ethernet interface type |
10 Gigabit Ethernet |
| Ports & interfaces |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Performance management |
XClarity Controller |
| Software |
| Compatible operating systems |
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Processor special features |
| Intel TSX-NI |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| General |
| Product family |
ThinkServer |
| Weight & dimensions |
| Weight |
7.1 kg |
| Depth |
507 mm |
| Height |
56 mm |
| Width |
218 mm |
