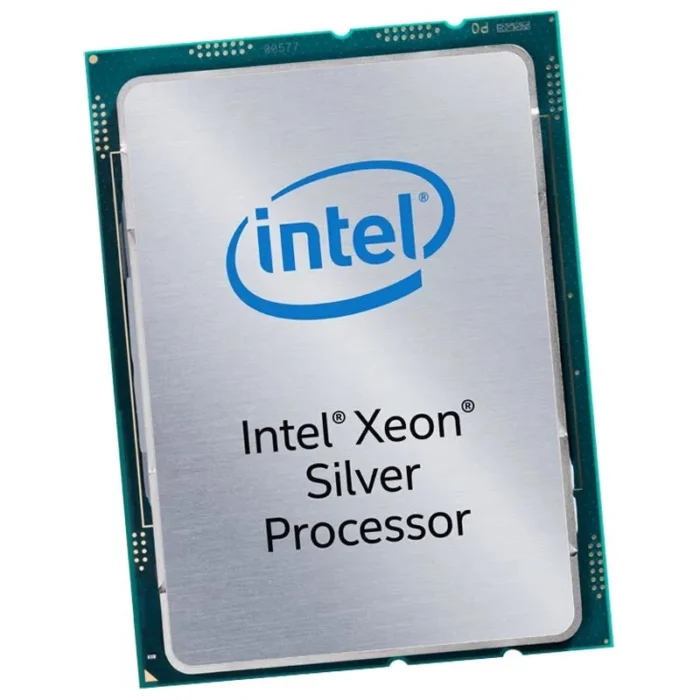

Lenovo Intel Xeon Silver 4214 processor 2.2 GHz 17 MB L3
- Intel Xeon Silver 4214 2.2 GHz
- 17 MB L3 LGA 3647 (Socket P)
- Processor cores: 12 14 nm 64-bit 85 W
- Maximum internal memory supported by processor: 1 TB DDR4-SDRAM
The SR650 server supports one or two Intel Xeon Bronze, Silver, Gold, or Platinum processors.
| Processor | |
|---|---|
| Processor codename | Gladden |
| Bus type | UPI |
| Stepping | L1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| Processor cache | 17 MB |
| Processor boost frequency | 3.2 GHz |
| Processor operating modes | 64-bit |
| Processor threads | 24 |
| Processor series | Intel Xeon Silver 4000 Series |
| Component for | Server/workstation |
| Cooler included | No |
| Processor lithography | 14 nm |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 12 |
| Processor base frequency | 2.2 GHz |
| Processor model | 4214 |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Hexa-channel |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 1 TB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Discrete graphics card | No |
| Features | |
|---|---|
| Scalability | 2S |
| Embedded options available | Yes |
| Intel® Optane™ Memory module included | Yes |
| Supported instruction sets | AVX-512 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 48 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 1 |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
|---|---|
| Tcase | 77 °C |
| Technical details | |
|---|---|
| Number of UPI links | 2 |
| Intel® Run Sure Technology version | Y |
| Intel® Volume Management Device (VMD) version | Y |
| Mode-based Execute Control (MBE) version | Y |
| Other features | |
|---|---|
| Compatibility | ThinkSystem SR550/SR590/SR650 |
