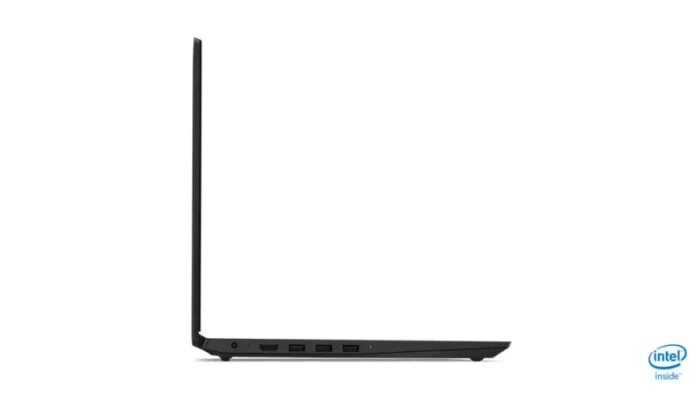

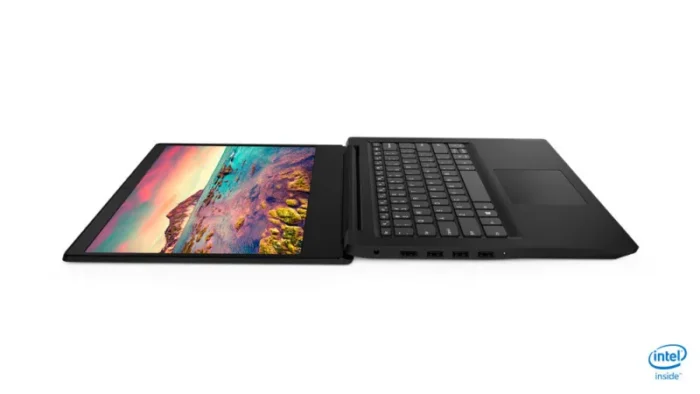

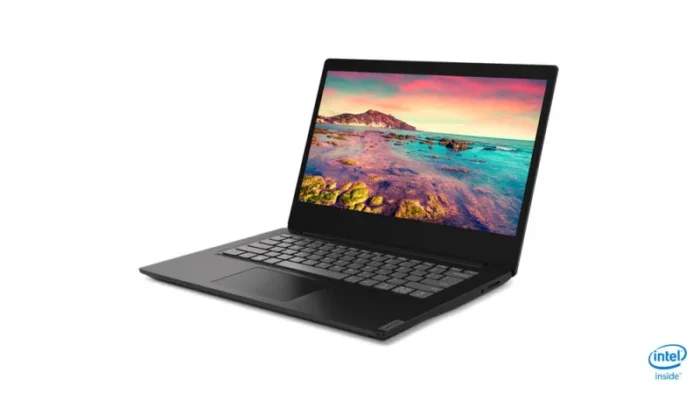

Lenovo IdeaPad S145-14IGM Intel® Pentium® Silver N5000 Laptop 35.6 cm (14″) HD 4 GB DDR4-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Home in S mode Black
- Intel Pentium Silver N5000 (4C/4T, 1.1/2.7GHz, 4MB)
- 1x 4GB SO-DIMM DDR4-2400
- 128GB SSD M.2 2242 PCIe 3.0×2 NVMe
- Intel UHD Graphics 605
- Windows 10 Home in S mode
Built to last
Engineered for long-lasting performance, the IdeaPad S145 delivers, powerful, smooth processing in a stylish, light design. Perfect for everyday computing on the go, this durable 14″ laptop boasts exceptional audio and fast, secure storage options.
| Design |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Form factor |
Clamshell |
| Colour name |
Granite Black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| Display brightness |
220 cd/m² |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
TN |
| HD type |
HD |
| Touchscreen |
No |
| Display resolution |
1366 x 768 pixels |
| Display diagonal |
35.6 cm (14″) |
| Processor |
| Maximum number of PCI Express lanes |
6 |
| PCI Express slots version |
2.0 |
| PCI Express configurations |
1×4+1×2, 2×1+1×2+1×2, 4×1 |
| Tjunction |
105 °C |
| Scenario Design Power (SDP) |
4.8 W |
| Thermal Design Power (TDP) |
6 W |
| Stepping |
B0 |
| Processor codename |
Gemini Lake |
| Processor operating modes |
32-bit, 64-bit |
| Processor lithography |
14 nm |
| Processor socket |
BGA 1090 |
| Processor cache type |
L3 |
| Processor cache |
4 MB |
| Processor frequency |
1.1 GHz |
| Processor boost frequency |
2.7 GHz |
| Processor threads |
4 |
| Processor cores |
4 |
| Processor model |
N5000 |
| Processor family |
Intel® Pentium® Silver |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
8 GB |
| Memory slots |
1x SO-DIMM |
| Memory clock speed |
2400 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
4 GB |
| Storage |
| Compatible memory cards |
MMC, SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
128 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
128 GB |
| Storage media |
SSD |
| Total storage capacity |
128 GB |
| Graphics |
| On-board graphics card ID |
0x3184 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card base frequency |
200 MHz |
| On-board graphics card burst frequency |
750 MHz |
| Maximum on-board graphics card memory |
8 GB |
| Number of execution units |
18 |
| On-board graphics card dynamic frequency (max) |
750 MHz |
| On-board graphics card model |
Intel® UHD Graphics 605 |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
1 |
| Speaker power |
1.5 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Audio |
| Camera |
| Front camera resolution (numeric) |
0.3 MP |
| Front camera |
Yes |
| Network |
| WWAN |
Not installed |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| Antenna type |
1×1 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Mobile network connection |
No |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| HDMI version |
1.4b |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Keyboard |
| Numeric keypad |
No |
| Keyboard backlit |
No |
| Pointing device |
Touchpad |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home in S mode |
| Processor special features |
| Conflict-Free processor |
Yes |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel 64 |
Yes |
| Intel® Anti-Theft Technology (Intel® AT) |
No |
| Intel® Smart Response Technology |
No |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Turbo Boost Technology |
No |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor package size |
25 x 24 mm |
| UART |
Yes |
| Processor code |
SR3RZ |
| Intel Identity Protection Technology version |
1.00 |
| Intel Smart Response Technology version |
0.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Processor ARK ID |
128990 |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Battery |
| Battery life (max) |
5.5 h |
| Battery capacity |
30 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| DC-in jack |
Yes |
| AC adapter power |
45 W |
| Security |
| Password protection type |
HDD, Power on, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Fingerprint reader |
No |
| Certificates |
| Certification |
ErP lot3 |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Height |
19.9 mm |
| Depth |
241 mm |
| Width |
327.1 mm |
| Weight |
1.6 kg |
| General |
| Product family |
IdeaPad |
| Product series |
S |
