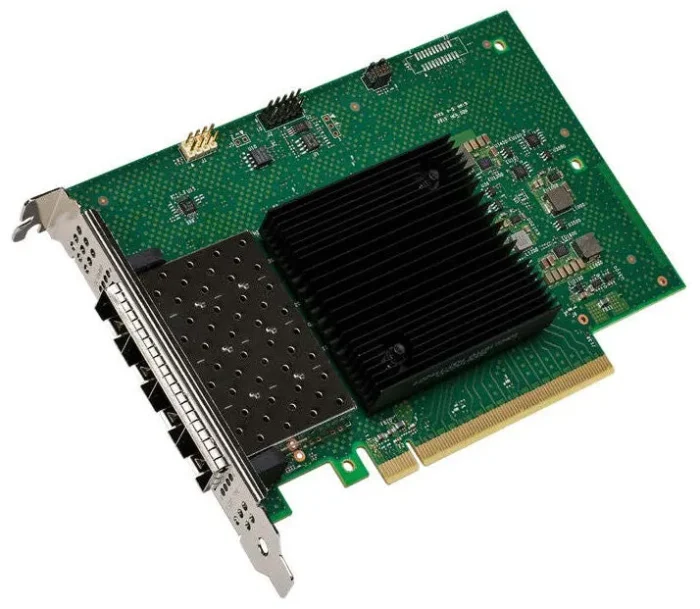

Lenovo 4XC7A80267 network card Internal Fiber 25000 Mbit/s
- Wired
- PCI Express 4.0 Fiber
- 25000 Mbit/s
- Internal Component for: Server
The ThinkSystem Intel E810-DA2 and E810-DA4 10/25GbE SFP28 network adapters improve application efficiency and network performance with innovative and versatile capabilities. With two or four 25GbE SFP28 ports and key performance optimizations, the E810 adapters supports solutions across Cloud, Enterprise, and Communications.
This product guide provides essential presales information to understand the Intel E810 adapters and their key features, specifications and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the E810 adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| PCI Card form factor | Full-height |
| PCI version | 4.0 |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP+ |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Maximum data transfer rate | 25000 Mbit/s |
| Design | |
|---|---|
| Certification | FCC B UL CE VCCI BSMI RCM KCC |
| Product colour | Multicolour |
| Component for | Server |
| Internal | Yes |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Height | 115 mm |
| Depth | 115 mm |
| Width | 76 mm |
