Lenovo 4XC1K04678 network card Internal WWAN 1000 Mbit/s
- Fibocom L860-GL-16
- 4G WWAN module
- Interface: M.2 Key-B
- Supports LTE FDD/LTE TDD/WCDMA systems
- Support 4×4 MIMO
- Support Windows 10 and Windows 11

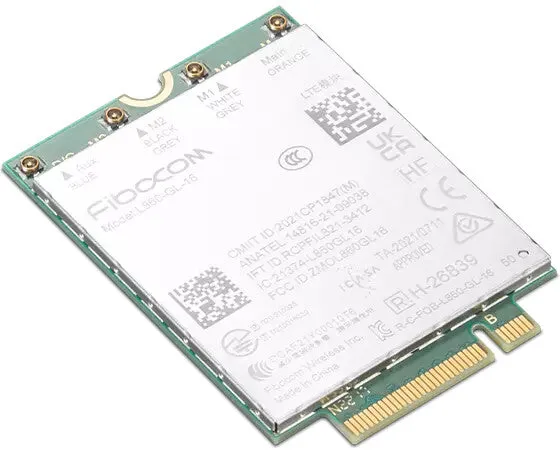

ThinkPad Fibocom L860-GL-16 XMM7560 CAT16 4G PCIE M.2 3042 WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With downlink speed up to 1Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.
| Ports & interfaces | |
|---|---|
| Interface | WWAN |
| Host interface | M.2 |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| Mobile network generation | 4G |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
|---|---|
| Certification | CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan |
| Antenna design | Internal |
| Component for | PC/Laptop |
| Internal | Yes |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -10 – 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 6.2 g |
| Height | 177 mm |
| Depth | 144 mm |
| Width | 53 mm |
| Packaging data | |
|---|---|
| Package weight | 30 g |
| Package height | 2.3 mm |
| Package depth | 42 mm |
| Package width | 30 mm |
