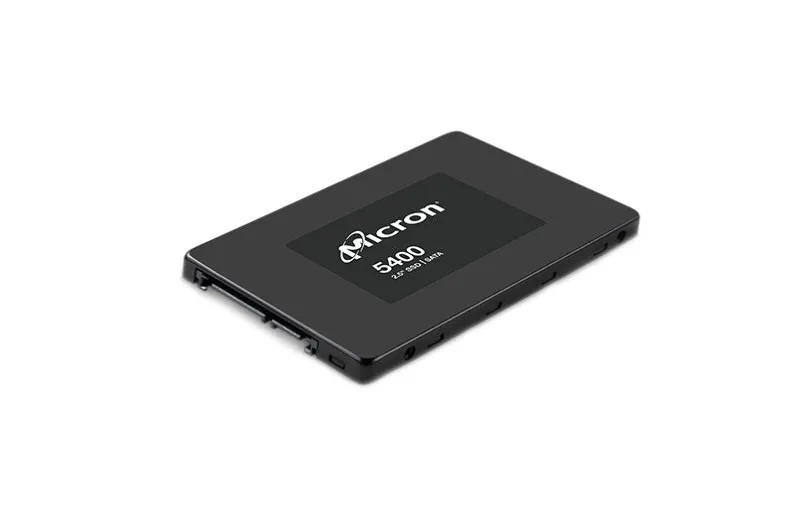

Lenovo 4XB7A82292 internal solid state drive 3.84 TB 2.5″ Serial ATA III 3D TLC NAND
- Industry standard 2.5-inch form factor
- Compliant with the Trusted Computing Group Enterprise Security Subsystem Class cryptographic standard (TCG Enterprise SSC)
- Supports the SafeStore self-encrypting drive (SED) functionality of ThinkSystem RAID adapters
- New generation 176-layer 3D TLC NAND flash memory
- Suitable for read-intensive workloads with an endurance of up to 5.0 full drive writes per day (DWPD) for 5 years
- 6 Gbps SATA host interface
- High reliability and enhanced ruggedness
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
- Supports Sanitize Cryptographic Erase
The ThinkSystem 5400 MAX Mixed Use SATA 6Gb SSDs are advanced data center SSDs optimized for mixed read-write performance and endurance. These self-encrypting SSDs (SEDs) are based on the Micron 5400 MAX platform and are available in capacities ranging from 480GB to 3.84TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
| Features | |
|---|---|
| Certification | Micron Green StandardBuilt with sulfur resistant resistorsCE (Europe): EN 55032 Class B, RoHSUKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHSFCC: CFR Title 47, Part 15 Class BUL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663RCM (Australia, New Zealand): AS/NZS CISPR32 Class BKC RRA (Korea): approval to KN32 Class B, KN 35 Class BW.E.E.E.: compliance with EU WEEE directive 2012/19/ECTUV (Germany): approval to IEC60950/EN60950VCCI (Japan): 2015-04 Class BIC (Canada): ICES-003 Class BMorocco: approval to EN55032/EN55024 Class BUkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) |
| Mean time between failures (MTBF) | 3000000 h |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Write latency | 90 µs |
| Read latency | 170 µs |
| Random write (4KB) | 34000 IOPS |
| Random read (4KB) | 95000 IOPS |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| Memory type | 3D TLC NAND |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 3.84 TB |
| Power | |
|---|---|
| Power consumption (write) | 3.8 W |
| Power consumption (read) | 2.8 W |
| Weight & dimensions | |
|---|---|
| Weight | 70 g |
| Height | 7 mm |
| Depth | 100 mm |
| Width | 70 mm |
| Operational conditions | |
|---|---|
| Non-operating shock | 1500 G |
| Non-operating vibration | 3.13 G |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
