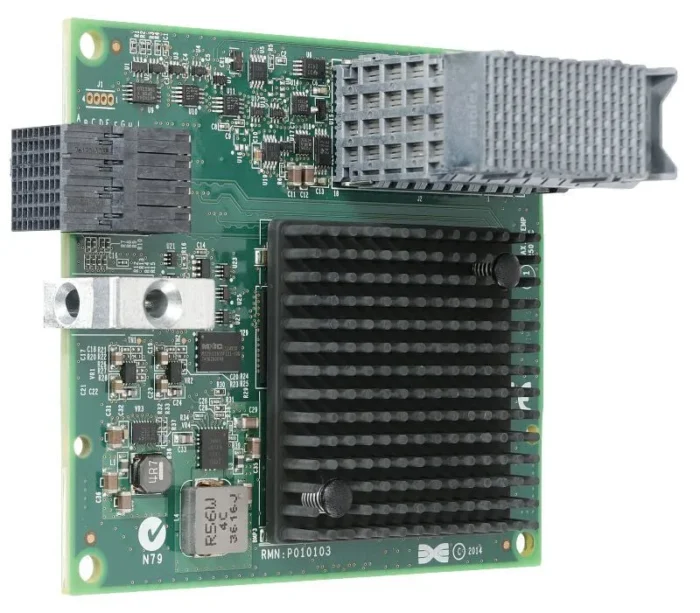

Lenovo 00AG590 network card Internal Ethernet 10000 Mbit/s
- Wired
- PCI Express Ethernet
- 10 Gigabit Ethernet 10000 Mbit/s 10GBase-T
- Internal Component for: Server
| Ports & interfaces | |
|---|---|
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Cabling technology | 10GBase-T |
| Ethernet LAN data rates | 10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
|---|---|
| Certification | United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class AUnited States UL 60950-1, Second EditionIEC/EN 60950-1, Second EditionFCC – Verified to comply with Part 15 of the FCC Rules, Class ACanada ICES-003, issue 4, Class AUL/IEC 60950-1CSA C22.2 No. 60950-1-03Japan VCCI, Class AAustralia/New Zealand AS/NZS CISPR 22:2006, Class AIEC 60950-1(CB Certificate and CB Test Report)Taiwan BSMI CNS13438, Class AKorea KN22, Class A; KN24Russia/GOST ME01, IEC-60950-1, GOST R 51318.22-99, GOST R 51318.24-99, GOST R 51317.3.2-2006, GOST R 51317.3.3-99IEC 60950-1 (CB Certificate and CB Test Report)CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)CISPR 22, Class A |
| Component for | Server |
| Internal | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 13 g |
| Depth | 80 mm |
| Width | 100 mm |
| Packaging data | |
|---|---|
| Package weight | 400 g |
| Package height | 58 mm |
| Package depth | 208 mm |
| Package width | 229 mm |
