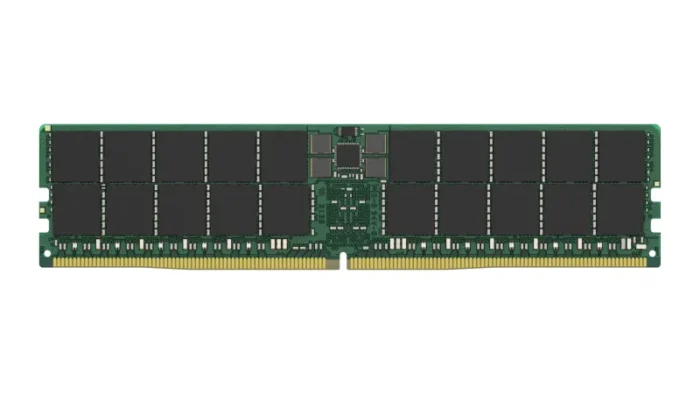

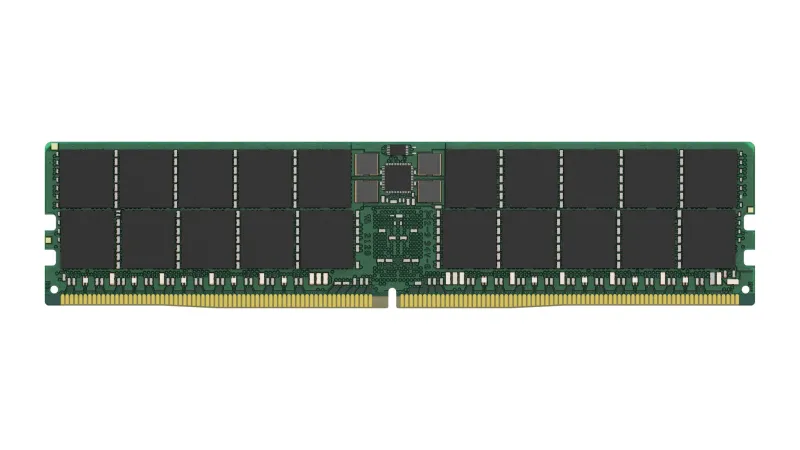

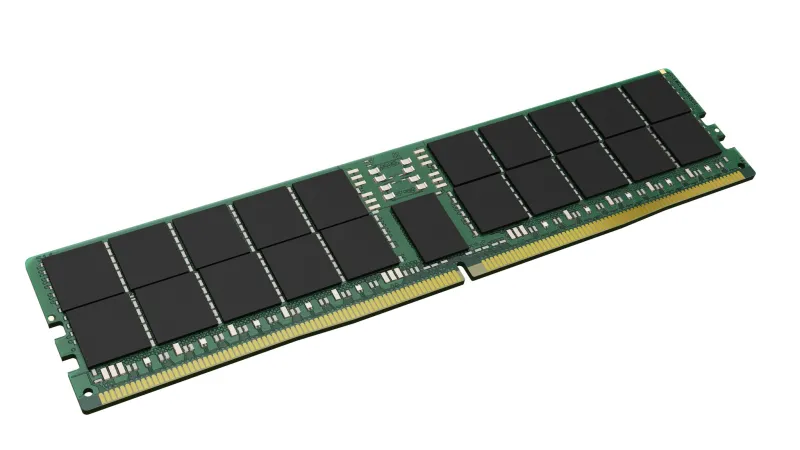

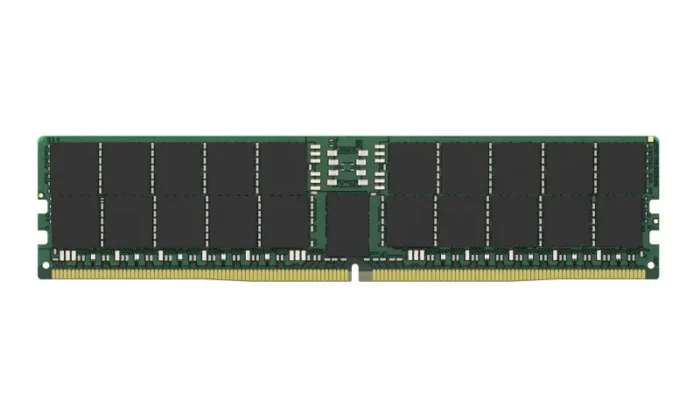

Kingston Technology KSM56R46BD4-64MD memory module 64 GB 1 x 64 GB DDR5
- PC/Server 64 GB DDR5
- 288-pin DIMM 1 x 64 GB
- CAS latency: 46
- 1.1 V
Kingston memory is designed, manufactured and rigorously tested to meet the exact specifications of each brand name system.
| Features |
| JEDEC standard |
Yes |
| Lead plating |
Gold |
| SPD profile |
Yes |
| Programming power voltage (VPP) |
1.8 V |
| Row Precharge Time (TRP) |
16 |
| Row active time |
32 ns |
| Refresh row cycle time |
295 ns |
| Row cycle time |
48 ns |
| Module configuration |
8192M x 80 |
| Memory voltage |
1.1 V |
| Memory ranking |
2 |
| Memory data transfer rate |
5600 MT/s |
| CAS latency |
46 |
| On-Die ECC |
Yes |
| ECC |
No |
| Memory form factor |
288-pin DIMM |
| Component for |
PC/Server |
| Internal memory type |
DDR5 |
| Memory layout (modules x size) |
1 x 64 GB |
| Internal memory |
64 GB |
| Buffered memory type |
Registered (buffered) |
| Operational conditions |
| Storage temperature (T-T) |
-55 – 100 °C |
| Operating temperature (T-T) |
0 – 95 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Sustainability |
| Doesn’t contain |
Halogen |
| Weight & dimensions |
| Height |
31.2 mm |
| Width |
133.3 mm |
