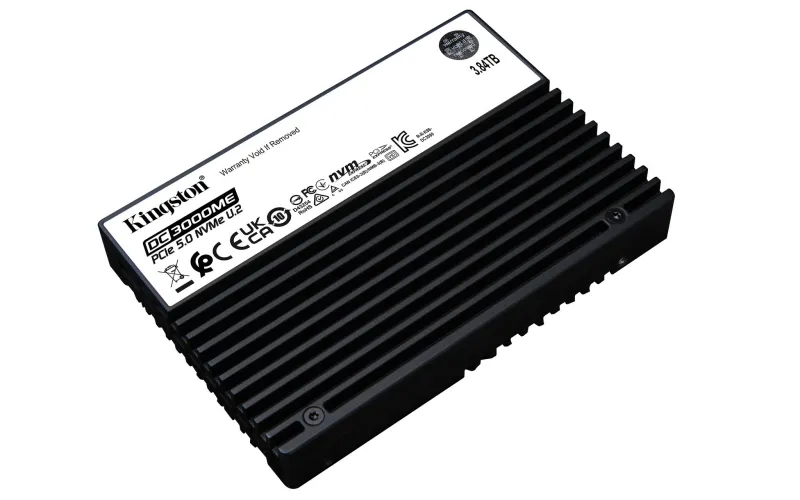

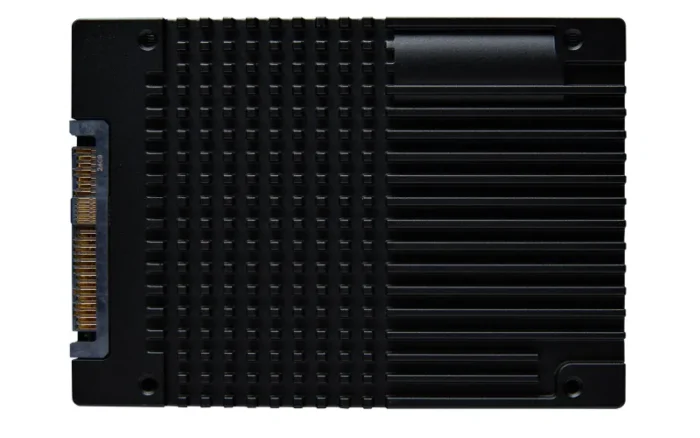

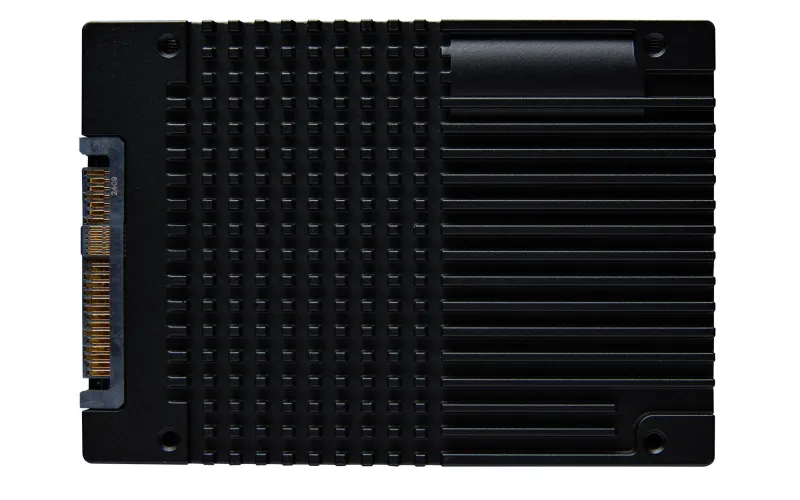

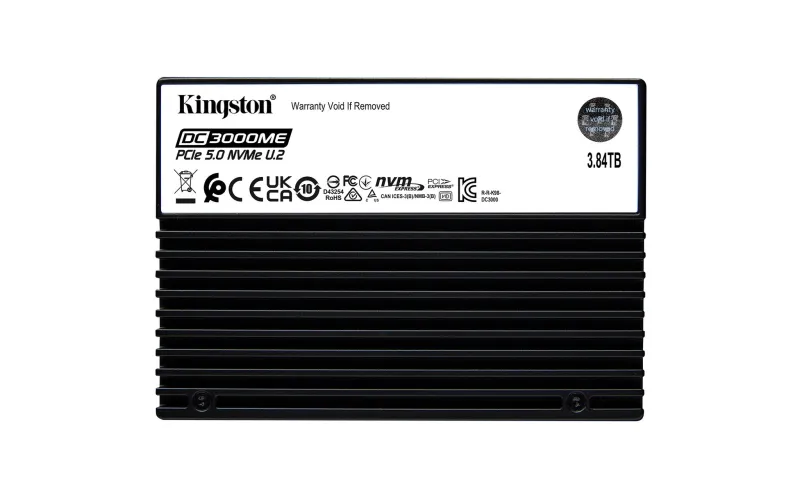

Kingston Technology 3.84TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD
- Data Center SSD for Enterprise
- Gen5 PCIe NVMe U.2
- 3.84TB, 7.68TB, 15.36TB
- Up to 14,0000 MB/s read
- Up to 2,800,000 read IOPS
PCIe 5.0 NVMe U.2 for Server Applications
Kingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilizes 3D eTLC NAND, making it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES 256-bit encryption for ultimate data security. DC3000ME utilizes the latest high-speed PCIe 5.0 interface and is backward-compatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service providers can depend on. DC3000ME is offered in 3.84TB, 7.68TB and 15.36TB* capacities and is backed by Kingston’s legendary technical support and a 5-year limited warranty.
Applications and workloads
DC3000ME is ideal for running a wide range of server applications and workloads including:
– AI
– HPC
– Cloud services
– Edge computing
– Software defined storage
– RAID
– General server use
Enterprise PCIe 5.0 performance
Delivers I/O consistency and low latency with sustained speeds of up to 14,000MB/s read and 2,800,000 read IOPS**.
Optimal storage and efficiency
High capacity options available offering an exceptional balance of consistent I/O delivery and ultra-high performance. Optimized to handle a wide range of server workloads efficiently.
On-board Power Loss Protection (PLP)
Enterprise-class protection to reduce possibility of data loss or corruption on ungraceful power fails including NVMe-MI 1.2b out-of-band management, end-to-end data protection, TCG Opal 2.0.
AES 256-bit encryption
Secure sensitive data with AES 256-bit hardware-based encryption and TCG Opal 2.0.
| Features | |
|---|---|
| Market segment | Server |
| Mean time between failures (MTBF) | 2000000 h |
| Power loss protection | Yes |
| Write latency | 70 µs |
| Read latency | 10 µs |
| Random write (4KB) | 300000 IOPS |
| Random read (4KB) | 2700000 IOPS |
| Write speed | 5800 MB/s |
| Read speed | 14000 MB/s |
| Security algorithms | 256-bit AES, TCG Opal 2.0 |
| Hardware encryption | Yes |
| Component for | Server |
| Memory type | 3D eTLC |
| NVMe | Yes |
| Interface | PCI Express 5.0 |
| SSD form factor | U.2 |
| SSD capacity | 3.84 TB |
| Power | |
|---|---|
| Power consumption (idle) | 8 W |
| Power consumption (write) | 24 W |
| Power consumption (read) | 8.2 W |
| Weight & dimensions | |
|---|---|
| Weight | 146.2 g |
| Height | 14.8 mm |
| Depth | 100.5 mm |
| Width | 69.8 mm |
| Packaging data | |
|---|---|
| Package weight | 180.44 g |
| Package height | 184.2 mm |
| Package depth | 16.8 mm |
| Package width | 129.5 mm |
| Operational conditions | |
|---|---|
| Non-operating vibration | 10 G |
| Operating temperature (T-T) | 0 – 70 °C |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case gross weight | 1.13 kg |
| Master (outer) case height | 69.8 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case width | 135.9 mm |
| Country of origin | Malaysia |
- leaflet
- Enterprise-class Gen5 NVMe U.2 SSD with power loss protection for server applications
