Kensington Vertical Stacking Dual Monitor Arm
- Dual vertical mounting, ideal for top-to-bottom web browsing, control rooms, gaming, or anywhere desk space is limited. Holds two screens, each up to 32″ (19.8lbs/9kg) in landscape orientation, 29″ in portrait orientation
- Stacked monitor arrangement maximizes desk space by allowing two monitors in a single footprint
- Quick-release height adjustment handle offers smooth and effortless monitor height adjustment
- Full-motion design allows flexible monitor positioning
- Detachable VESA® 75/100 plates rotate ±180° for landscape or portrait orientation of each monitor
- Pre-installed C-clamp makes installation easy and provides a stable and secure base (optional grommet mount included)
- Integrated cable management reduces clutter and keeps workspace tidy
Whether you’re a gamer, security professional, trying to maximize your desk space, or simply want to expand top-to-bottom web browsing, the Vertical Stacking Dual Monitor Arm offers stable and secure vertical positioning of two monitors, each up to 32″ (19.8lbs/9kg). Easy to install and adjust, the full-motion design offers monitor positioning in any direction, while the integrated cable management reduces clutter.
Dual Vertical Mounting
Ideal for top-to-bottom web browsing, control rooms, gaming, or anywhere desk space is limited. Holds two screens, each up to 32″ (19.8lbs/9kg) in landscape orientation, 29″ in portrait orientation.
Maximizes Desk Space
Stacked monitor arrangement allows two monitors in a single footprint.
Quick-Release Height Adjustment Handle
Offers smooth and effortless monitor height adjustment.
Full-Motion Design
Allows flexible monitor positioning.
Detachable VESA® 75/100 Plates
Rotate ±180° for landscape or portrait orientation of each monitor.
Pre-Installed C-Clamp
Makes installation easy and provides a stable and secure base (optional grommet mount included).

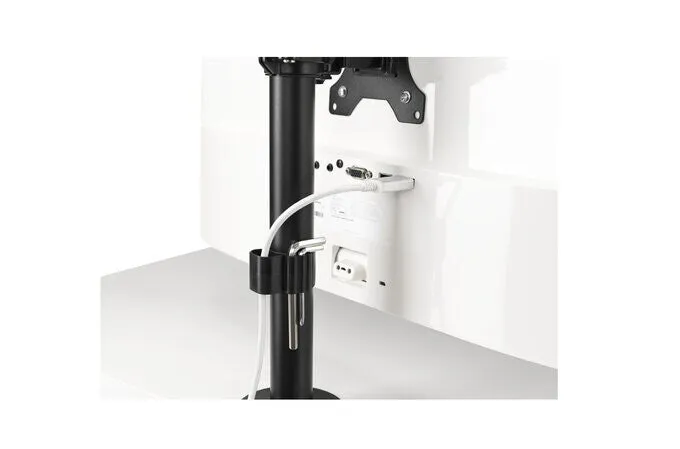

Integrated Cable Management
Reduces clutter and keeps workspace tidy.
| Mounting | |
|---|---|
| Grommet mount desk thickness (max) | 8.8 cm |
| Clamp mount desk thickness (max) | 8.8 cm |
| Number of displays supported | 2 |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity (per display) | 9 kg |
| Mounting type | Desk |
| Maximum screen size | 81.3 cm (32″) |
| Minimum screen size | 33 cm (13″) |
| Maximum weight capacity | 18 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Angle of rotation | 360° |
| Swivel angle range | -45 – 45° |
| Swivelling | Yes |
| Tilt angle range | -45 – 45° |
| Tilt adjustment | Yes |
| Design | |
|---|---|
| Easy to install | Yes |
| Orientation | Landscape/Portrait |
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 4.22 kg |
| Height | 988 mm |
| Depth | 148 mm |
| Width | 114 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 4.36 kg |
| Package height | 147 mm |
| Package depth | 142 mm |
| Package width | 600 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Other features | |
|---|---|
| VESA mounting | Yes |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
|---|---|
| Country of origin | China |
